MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual
17
2-1-4-1. Configuring the Management Agent of 8 Port Gigabit Ethernet Switch
through the Serial RS-232 Port
To perform the configuration through RS-232 console port, the switch’s serial port must
be directly connected to a DCE device, for example, a PC, through RS-232 cable with DB-9
connector. Next, run a terminal emulator with the default setting of the switch’s serial port.
With this, you can communicate with the switch.
In the switch, RS-232 interface only supports baud rate 57.6k bps with 8 data bits, 1 stop
bit, no parity check and no flow control.
To configure the switch, please follow the procedures below:
1. Find the RS-232 DB-9 cable with female DB-9 connector bundled. Normally, it just uses
pins 2, 3 and 7. See also Appendix B for more details on Null Modem Cable
Specifications.
2. Attaches the DB-9 female cable connector to the male serial RS-232 DB-9 connector
on the switch.
3. Attaches the other end of the serial RS-232 DB-9 cable to PC’s serial port, running a
terminal emulator supporting VT100/ANSI terminal with The switch’s serial port
default settings. For example, Windows98/2000/XP HyperTerminal utility.
Note: The switch’s serial port default settings are listed as follows:
Baud rate 57600
Stop bits 1
Data bits 8
Parity N
Flow control none
4. When you complete the connection, then press <Enter> key. The login prompt will
be shown on the screen. The default username and password are shown as below:
Username = admin Password = admin

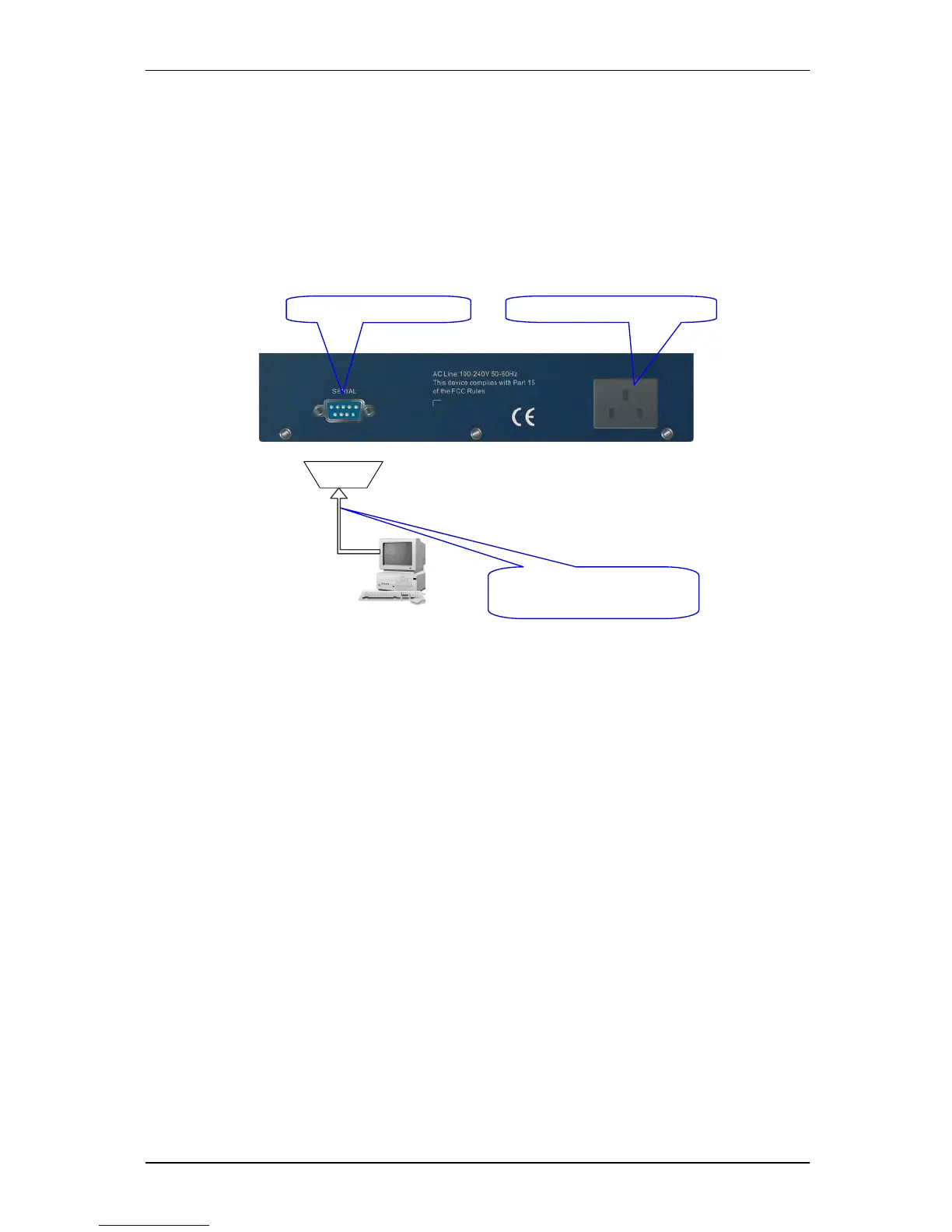

8 Port Gigabit Ethernet Switch
Default IP Setting:
IP address = 192.168.1.1
Subnet Mask = 255.255.255.0
Default Gateway = 192.168.1.254
Terminal or Terminal Emulato
