MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual
231
Appendix B
Null Modem Cable Specifications
The DB-9 cable is used for connecting a terminal or terminal emulator to the
Managed Switch’s RS-232 port to access the command-line interface.
The table below shows the pin assignments for the DB-9 cable.
Function Mnemonic Pin
Carrier CD 1
Receive Data RXD 2
Transmit Data TXD 3
Data Terminal Ready DTR 4
Signal Ground GND 5
Data Set Ready DSR 6
Request To Send RTS 7
Clear To Send CTS 8

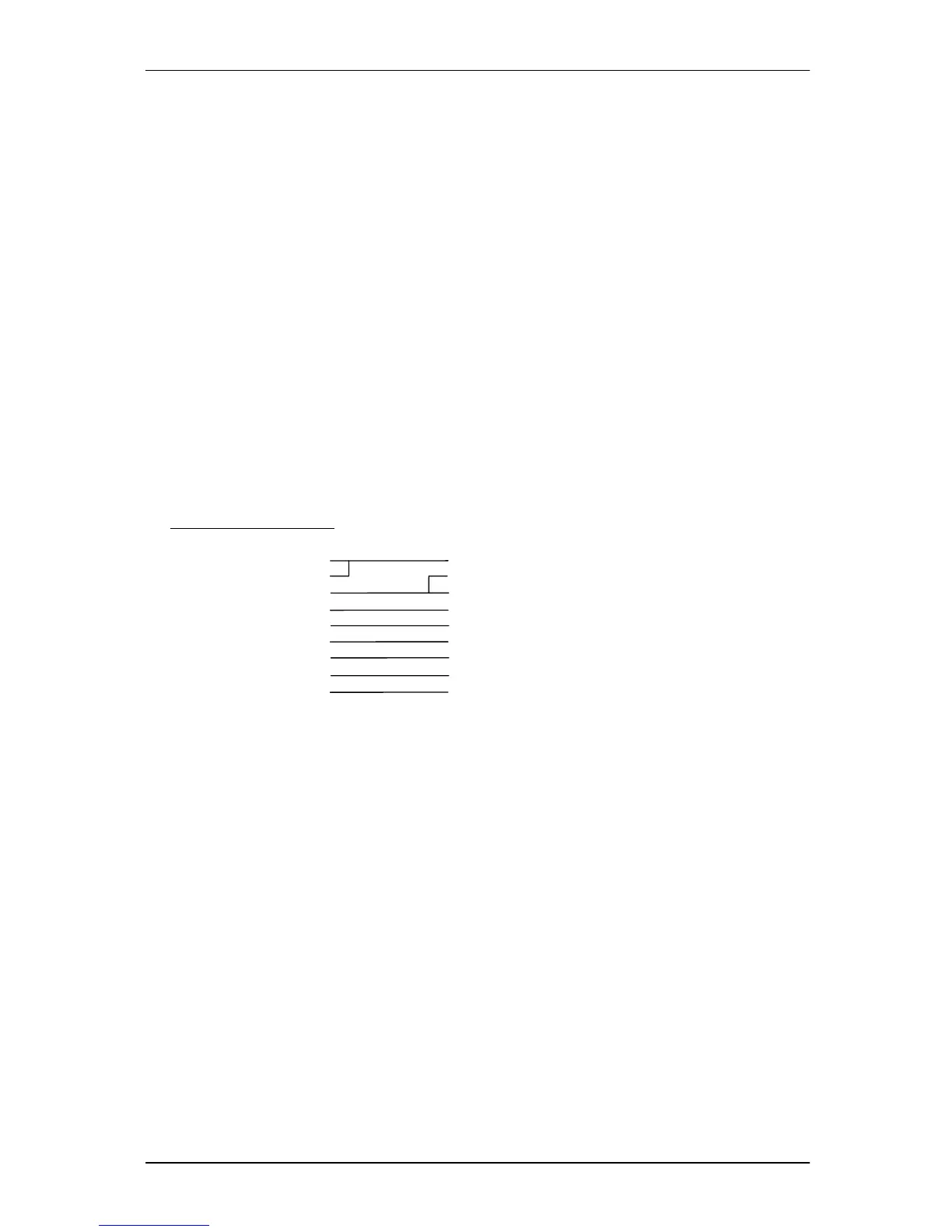

9 Pin Null Modem Cable
CD 1 4 DTR
DSR 6 1 CD
DTR 4 6 DSR
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
RTS 7 8 CTS
CTS 8 7 RTS
Reserve 9 9 Reserve
MICROSENS reserves the right to make any changes without further notice to any product to improve reliability,
function or design. MICROSENS does not assume any liability arising out of the application or use of any product. FR 4706
