MicroStep SH-HC30 User Manual

调高器说明书
Not e: The pins whose serial numbers a re not list ed will not be used.

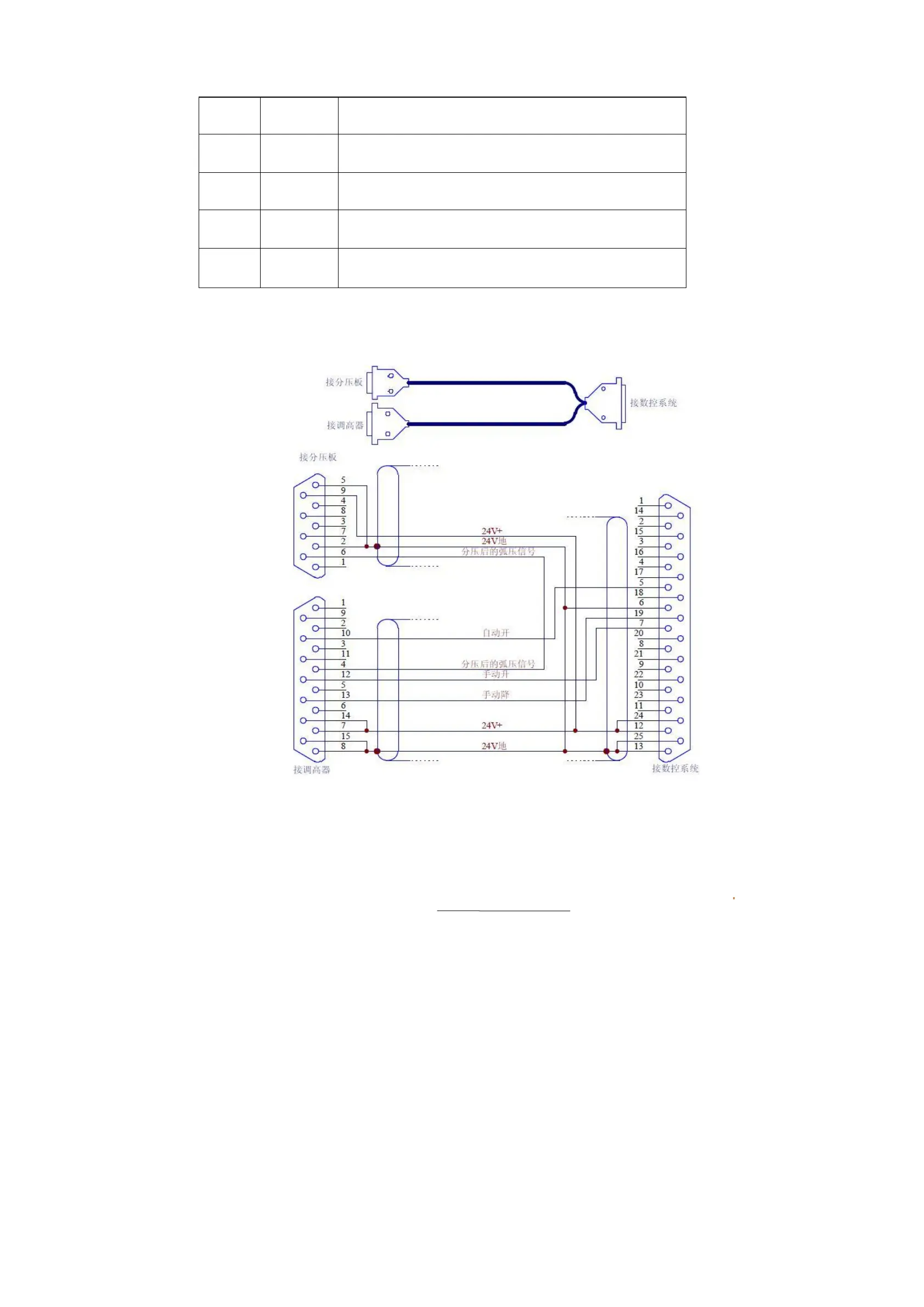

Connecting to voltage divider board
Connecting to torch height controller
Connecting to CNC system
9-pin connector of voltage divider board
Arc voltage signal after voltage dividing
Automatic start
Arc voltage signal after voltage dividing
Manual ascending
Manual descending
24V Ground
15-pin connector of height controller
25-pin connector of CNC system
19
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fine
print.com.cn
S/N
Attribute Description
2
Power
supply
24V ground for po wer supply of height controller
5
Power
supply
24V ground for power supply of height controller
6 Output
Arc voltage signal serving as height signal of the
plasma
tti l
9 Output 24V positive for power supply of height controller

MicroStep SH-HC30 Specifications

General

Brand	MicroStep
Model	SH-HC30
Category	Controller
Language	English
