MicroStep SH-HC30 User Manual

调高器说明书
11.3 Wiring Instructions

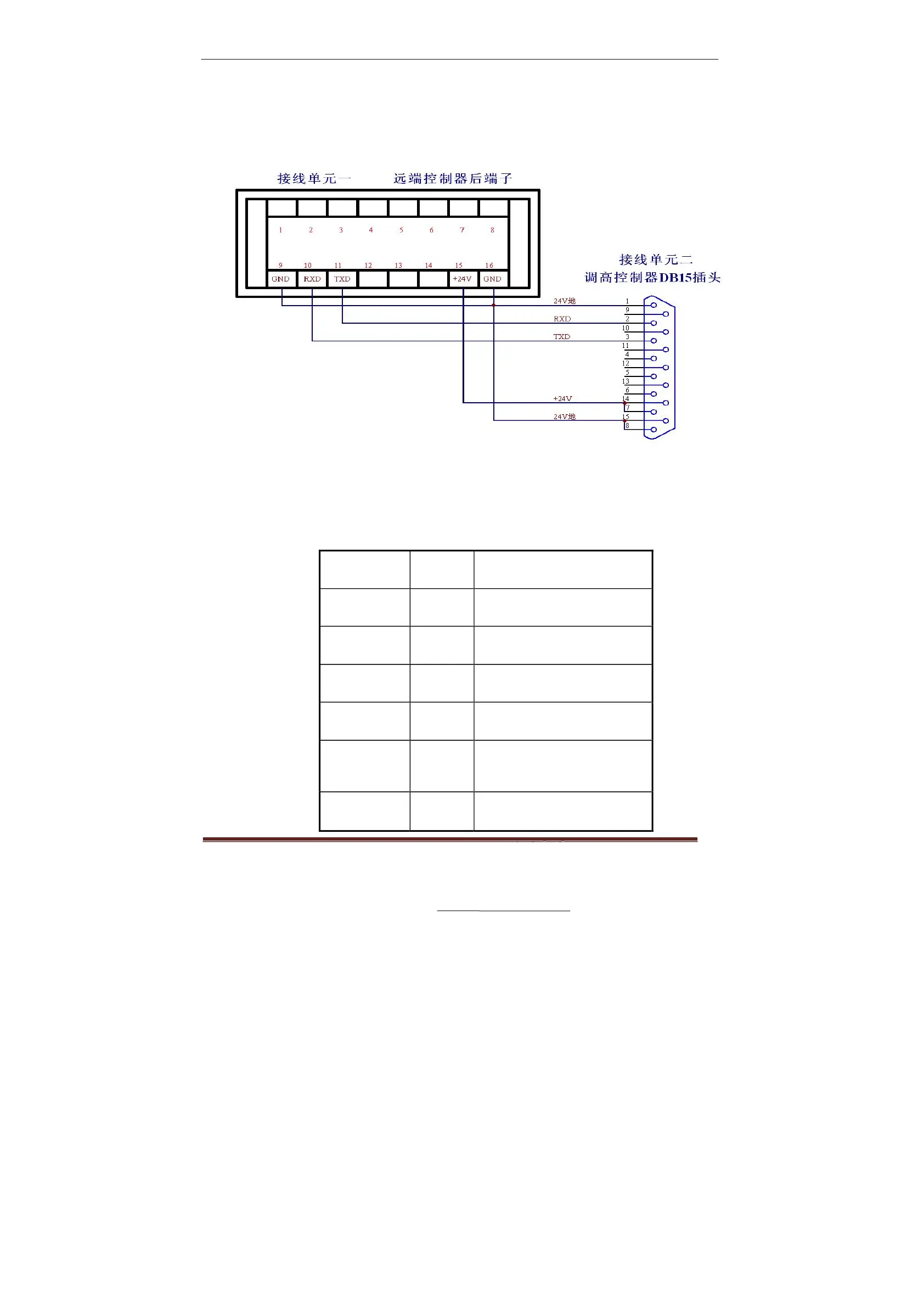

Wiring diagra m is shown in Fig. X-3.
Wiring unit 1
Back terminal of the remote controller
Wiring unit 2
DB15 plug of height controller
Fig. X-3 Wiring diagram of remote height controller
The
back terminal functions of the remote height cont roller are shown in Table X-1.
Table X-1 Function definition of the back terminals of t he controller
No.
9
10
11
15
16
1～8,12,13,14
Attribute
Power
supply
Input
Input
Power
supply
Power
supply
Description
24V ground for power supply
of height controller
RS232 communication
receiving terminal
RS232 communication
t ransmitt ing terminal
24V positive for power
supply of height controller
24V ground for power supply
of height controller
No functio nal definition
47
