the mechanical lift device of the height controller enables automatic height control. If the
height of the cutting torch is unsatisfactory, repeat the above steps 1-3. In automatic mode, the
up/down switch of the cutting torch is disabled.
4.2 Operation control via I/O interface of Model SH-2 002AH/SH-2200H CNC
sy stem (I/O control mode)
For
the wiring of height controller in capacitance mode, see Section 3.2-- "Electrical
Connection"
For the wiring of height cont ro ller in arc voltage mode, see Section 3.3--"Elect rica l
Connection".
The operation procedure is as follows:

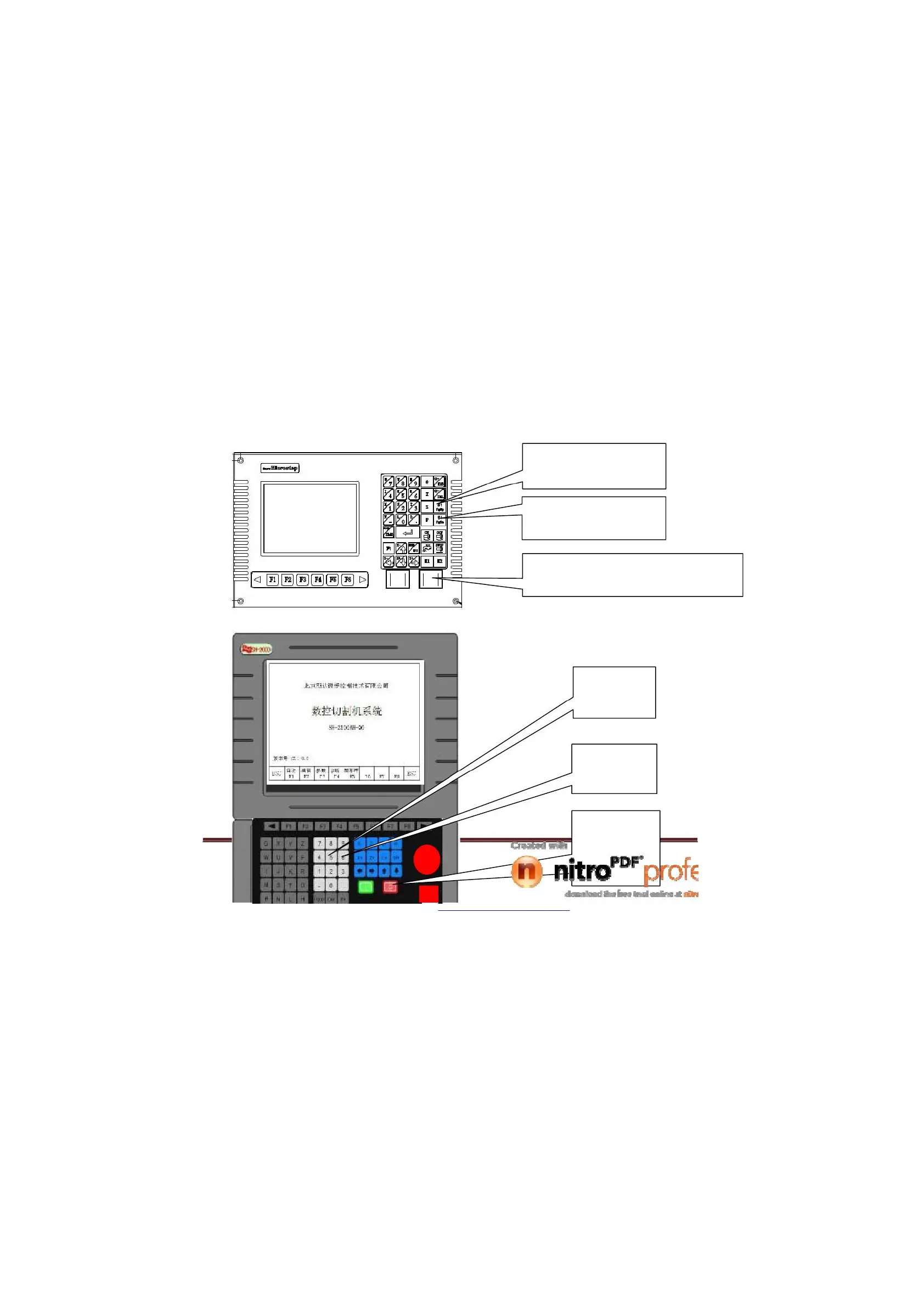

1. Directly press the ascend or descend keys on CNC panel to adjust the cutting torch to a suitable
height-.
Press S↑ to ascend the cutting
torch
Press S↓ to descend the cutting
torch
The height of the cutting torch is adjustable after
pressing the key “pause” in operation
Press “5” to rise
the arc voltage
Press “6” to lower
the arc voltage
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fine
print.com.cn
The height of the
cutting torch is
adjustable after
pressing the key
“ ause in operation
2 7
