Microtek LS-3800 User Manual

LS-3800 User's Manual 9

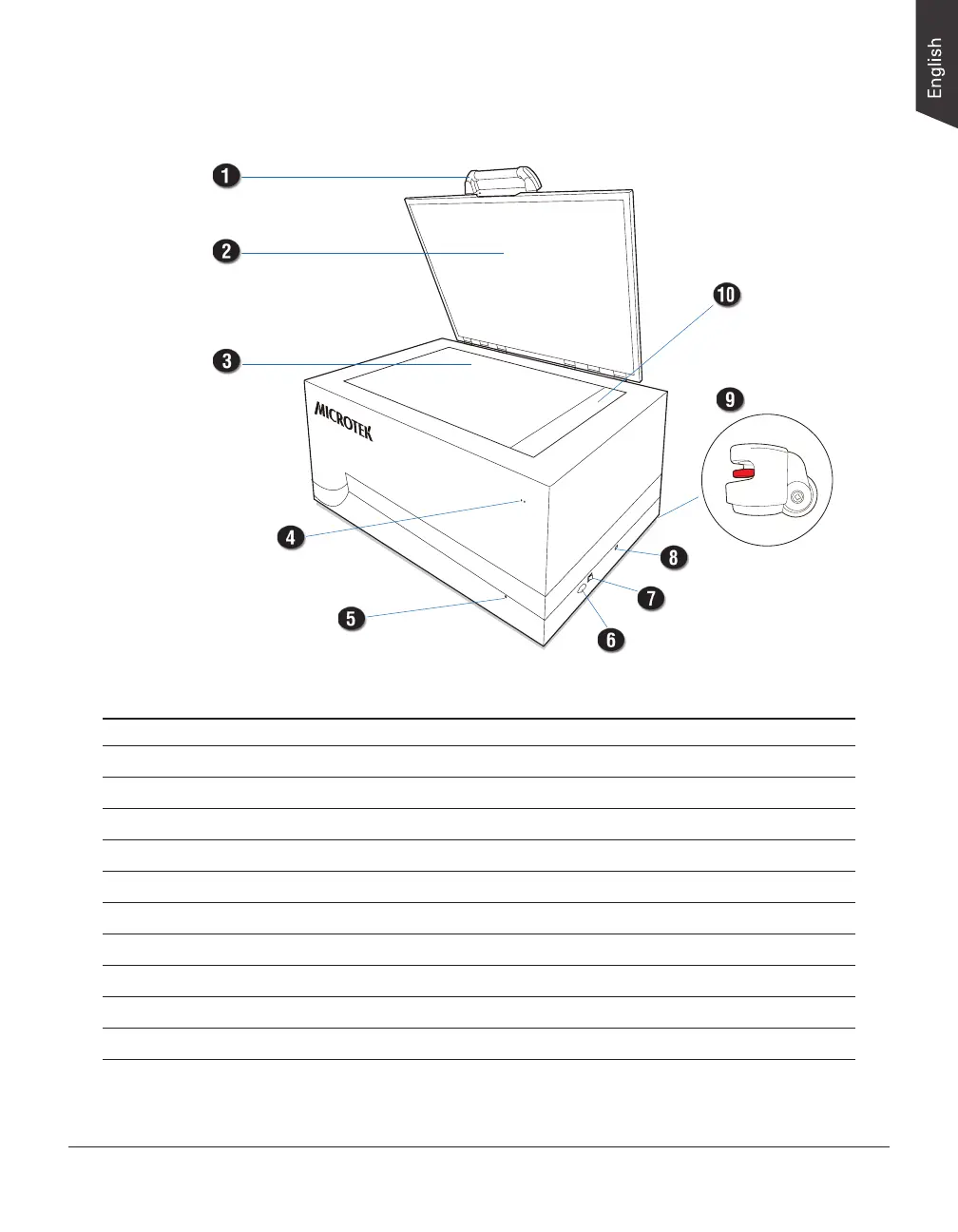

Taking a Closer Look
No. Names of Parts Functions of Parts
1 Handle Holds to open or close the upper cover of the scanner.
2 Upper Cover Covers the scanner bed.
3 Scan Bed The place where the scanned original is positioned.
4 Indicator (Green) Displays the status of the scanner.
5 Safety Locks (2) Locks the scanner cartridge.
6 Power Connector Connects the scanner to the power adapter.
7 Power Button Turns the scanner on or off.
8 Hi-Speed USB Port Connects the Hi-Speed USB (USB 2.0) cable to the computer.
9 Casters with Locks (4) Used to move or lock the scanner.
10 Ruler Used as a reference to position a scanned document in center.

Microtek LS-3800 Specifications

Scanning

resolution	800 dpi
scanning area	24" x 37" (610 mm x 940 mm)
scanning speed	30 sec @ 200 dpi, A1 color

Power

voltage	AC 100V to 240V
frequency	50/60 Hz
current	1.7A Max

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 85%
light source	LED (Light Emitting Diode)

Weight and Dimensions

dimensions	52.4" x 34.3" x 34.7"
weight	379 lbs.
dimensions in mm	1330 mm x 870 mm x 880 mm
