Microtek LS-3800 User Manual

22 LS-3800 User's Manual
Using Optional ScanWizard Cubi Software

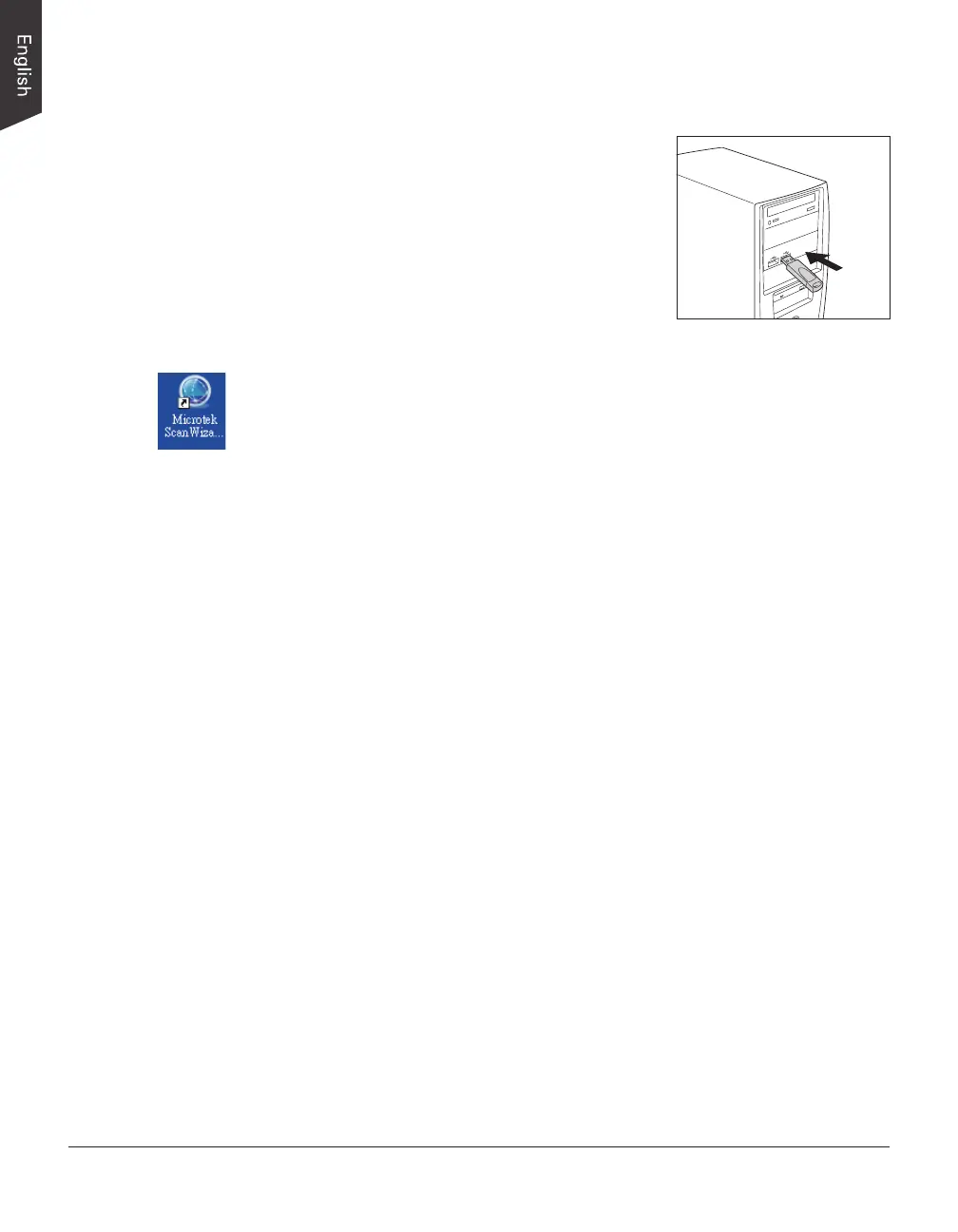

Before using the ScanWizard Cubi software, you
have to plug the USB Dongle come with your
ScanWizard Cubi software package into your
computer's USB port; otherwise, the ScanWizard
Cubi cannot be activated.
When done, follow the steps below to scan your
target.
1. Refer to the descriptions in “Positioning the
Materials” to place the material to be scanned
on the scan bed.
2. Launch ScanWizard Cubi as a stand-alone by clicking on the program icon on
the desktop.
If ScanWizard Cubi is launched, you will see the ScanWizard Cubi (AP)
interface on the screen on the screen.
3. If necessary, click the Scanner Control to set the direction of the light
projecting. Select Left, Right, or All from the Lamp Settings according to
your specic requirements. The default setting is All.
4. If necessary, click the Scan Setting button
to bring up the ScanWizard Cubi
(TWAIN) interface. By there, you can customize your scanning settings.
a) Follow the procedure (steps 4 through 9) for “Using ScanWizard Graph
Software” section to specify your scanning requirements.
b) Click the OK button in the Preview window to close the ScanWizard
Cubi (TWAIN) interface and return to the ScanWizard Cubi (AP)
interface.
5. Click the Scan button to start scanning.
The ScanWizard Cubi will perform the nal scan of the image with the
default or customized scanning settings you specied in the ScanWizard
Cubi (TWAIN) interface.
When the scan is done, the scanned image will be displayed in the
Thumbnail view window on the left column of the interface.
6. If necessary, adjust and optimize image by using the Image Adjustment
controls.
a) Select a scanned image to be optimized from the Thumbnail view
window.
When done, the selected image will be displayed in the Navigation
window and Index Preview window.
b) If necessary, click an area of the image in the Navigation window to
display that area in the Index Preview Area .

Microtek LS-3800 Specifications

Scanning

resolution	800 dpi
scanning area	24" x 37" (610 mm x 940 mm)
scanning speed	30 sec @ 200 dpi, A1 color

Power

voltage	AC 100V to 240V
frequency	50/60 Hz
current	1.7A Max

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 85%
light source	LED (Light Emitting Diode)

Weight and Dimensions

dimensions	52.4" x 34.3" x 34.7"
weight	379 lbs.
dimensions in mm	1330 mm x 870 mm x 880 mm
