ScanMaker i800 Supplement 13
C. Using the EZ-Lock 6 x 22 cm (120) Film Holder
To scan 6 x 4.5 cm, 6 x 6 cm, 6 x 7 cm, 6 x 9
cm, and 6 x 17 cm film, use the EZ-Lock 6 x
22 cm (120) Film Holder, which can hold up
to 4 pieces of 6 x 4.5 cm film, 2 pieces of 6 x
9 cm film, or a single piece of 6 x 17 cm film.

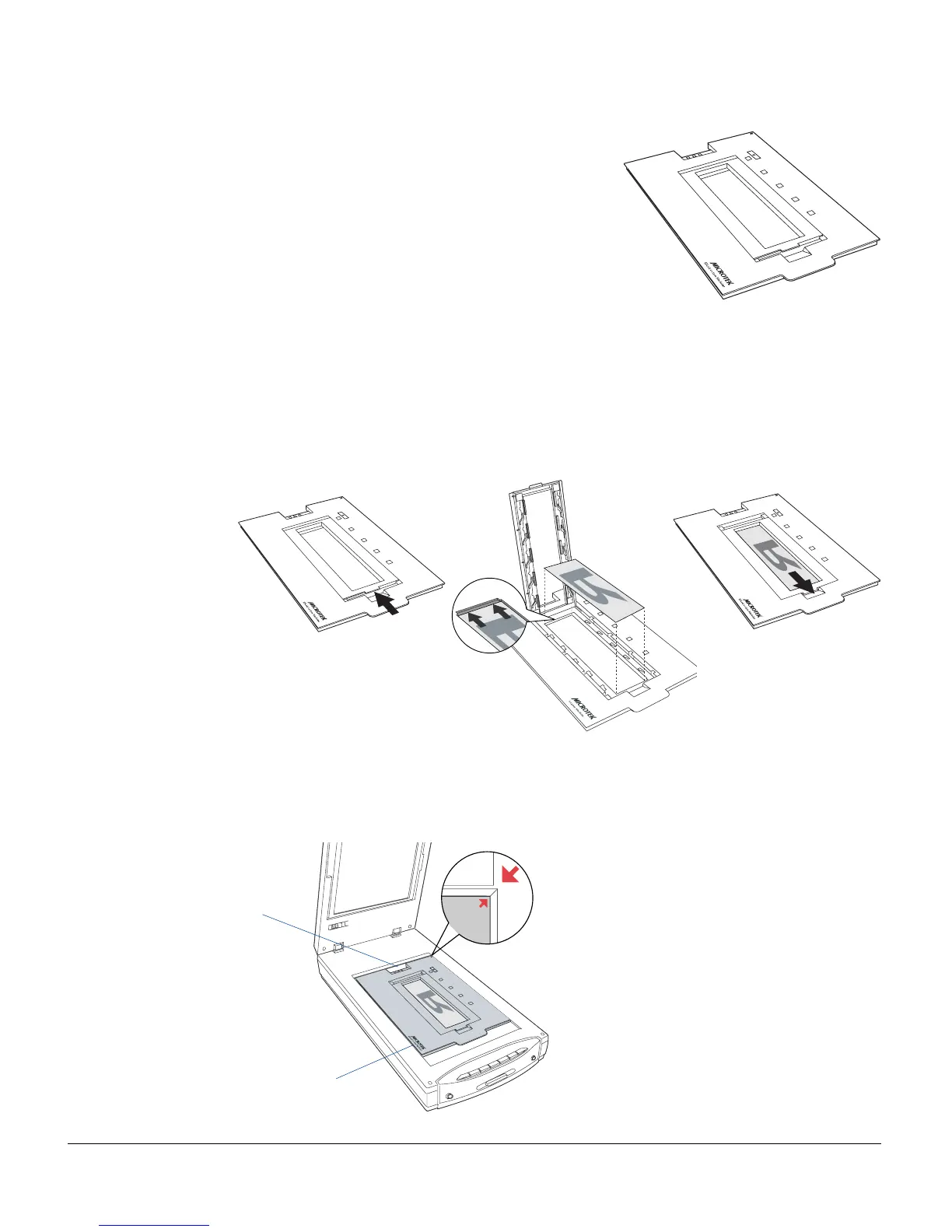

1. Place the 120 film to be scanned inside the EZ-Lock 6 x 22 cm (120) Film Holder, as
indicated in the graphics below. The shiny base of the 120 film should be facing
down, and the emulsion side of the filmstrip should be facing up.
2. Raise the scanner lid, then place the EZ-Lock 6 x 22 cm (120) Film Holder towards
the back of the scanner, with the loaded film on the scanner glass surface.
b) Place the film face
down into the holder.
a) Push on the side to
open the lid.
c) Pull down the side
to close the lid.
Keep calibration strip
on the glass surface clear
and free of any obstruction
To make sure the auto multiframe
cropping feature performs correctly,
place the holder on the scan bed,
correctly oriented and showing the
side with the Microtek logo face up.
Align the red arrows so that the
holder’s front edge is flush against
the top ruler of the scanner.
“Microtek” logo
