(2) WIDTH Rotary Control
The WIDTH rotary control determines the span of frequencies around that
specied by the FREQUENCY rotary control, which will be aected by
adjusting the GAIN control.
(3) FREQUENCY Rotary Control
Select the specic frequency to be adjusted with the FREQUENCY rotary
control. Each frequency can be adjusted between 20 Hz and 20 kHz. The
equaliser provides four discreet lter bands for input channels and even six
discreet bands for buses and matrices as follows:
(7) Individual Band Frequencies
HIGH
A band intended for high frequencies, with access to HCUT, HSHV, VEQ and
PEQ EQ modes.
HI MID
A band intended for high-mid frequencies, with access to VEQ and
PEQEQmodes.
LO MID
A band intended for low-mid frequencies, with access to VEQ and
PEQEQmodes.
LOW
A band intended for low frequencies, with access to LCUT, LSHV, VEQ and
PEQ EQ modes.
HIGH 2
Press HIGH and HI MID concurrently to access the HIGH 2 band of any
busequaliser.
LOW 2
Press LOW and LO MID concurrently to access the LOW 2 band of any
busequaliser.
(4) GAIN Rotary Control
Boost or attenuate the selected frequency by turning the GAIN rotary
control. Theselected equaliser band is inactive when the Gain control is in
the centre position (0 dB).
(5) EQ Button
Engages the EQ function for the selected channel.
(6) VIEW
Press the VIEW button to access more detailed parameters on the
MainDisplay. See the section Main Display - eq for more details.

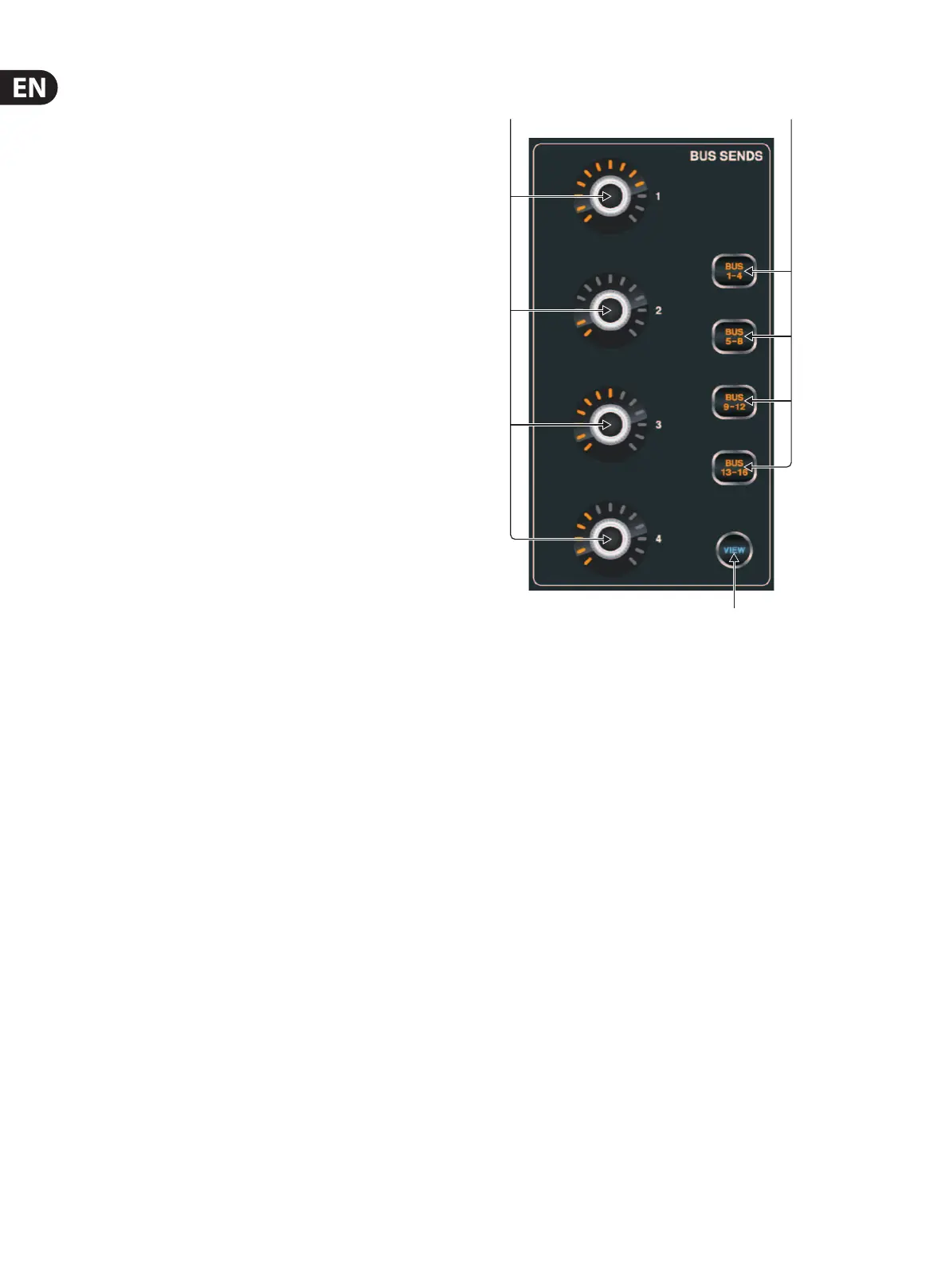

1.7 Bus Sends
(1) Rotary Controls 1-4
Bus Sends are selected in banks of four with the Select Buttons (see below).
The rotary controls adjust each of the four buses currently selected.
(2) Select Buttons 1-4, 5-8, 9-12 & 13-16
Select one of the banks of Bus Sends with either of the Select buttons on the
right of the panel. The bank that is currently selected will be highlighted on
the Main Display.
(3) VIEW
Press the VIEW button to access more detailed parameters on the
MainDisplay. See the section Main Display - sends for more details.
(1) (2)
(3)
