44 M32 DIGITAL CONSOLE User Manual

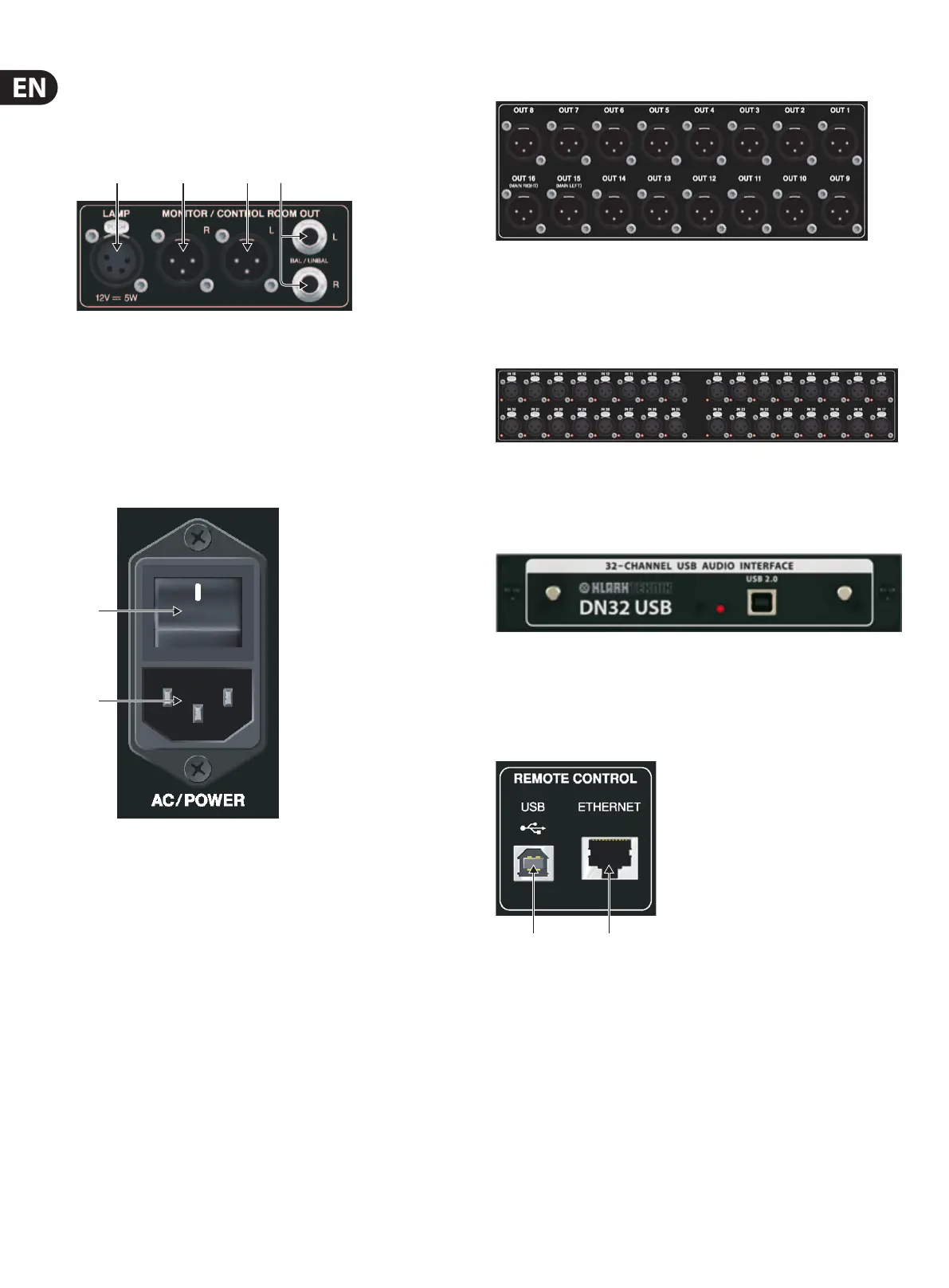

3. Rear Panel
3.1 MONITOR / CONTROL ROOM OUT
(1) External Lamp Socket
Connect an external lamp via a standard 12 V / 5 W socket.
(2)/(3) XLR Left & Right Sockets
Connect a pair of studio monitors using standard XLR cables.
(4) BAL / UNBAL Left & Right Jack Sockets
Connect a pair of studio monitors using standard ¼" cables.
3.2 AC / POWER
(1) Power On / O
Turn the console on and o with the On / O switch.
(2) IEC Power Socket
Connect the console to a mains power supply via the standard IEC
powersocket.
3.3 XLR OUT 1-16
Outputs 1-16
Send audio to external equipment using XLR cables. Outputs 15 and 16 by
default carry the main stereo bus signals.
3.4 XLR IN 1-32
Inputs 1-32
Connect audio sources via XLR cables.
3.5 KLARK TEKNIK DN32-USB
DN32 USB
Transmit up to 32 channels of audio to and from a computer using the DN32 USB
audio interface.
3.6 REMOTE CONTROL
(1) USB
Connect to a PC for remote control operation via USB.
(2) ETHERNET
Connect to a PC for remote control operation via Ethernet.
(1) (2) (3) (4)
(1)
(2)
(1) (2)
