FireWire 59
VeniceF
Operator Manual

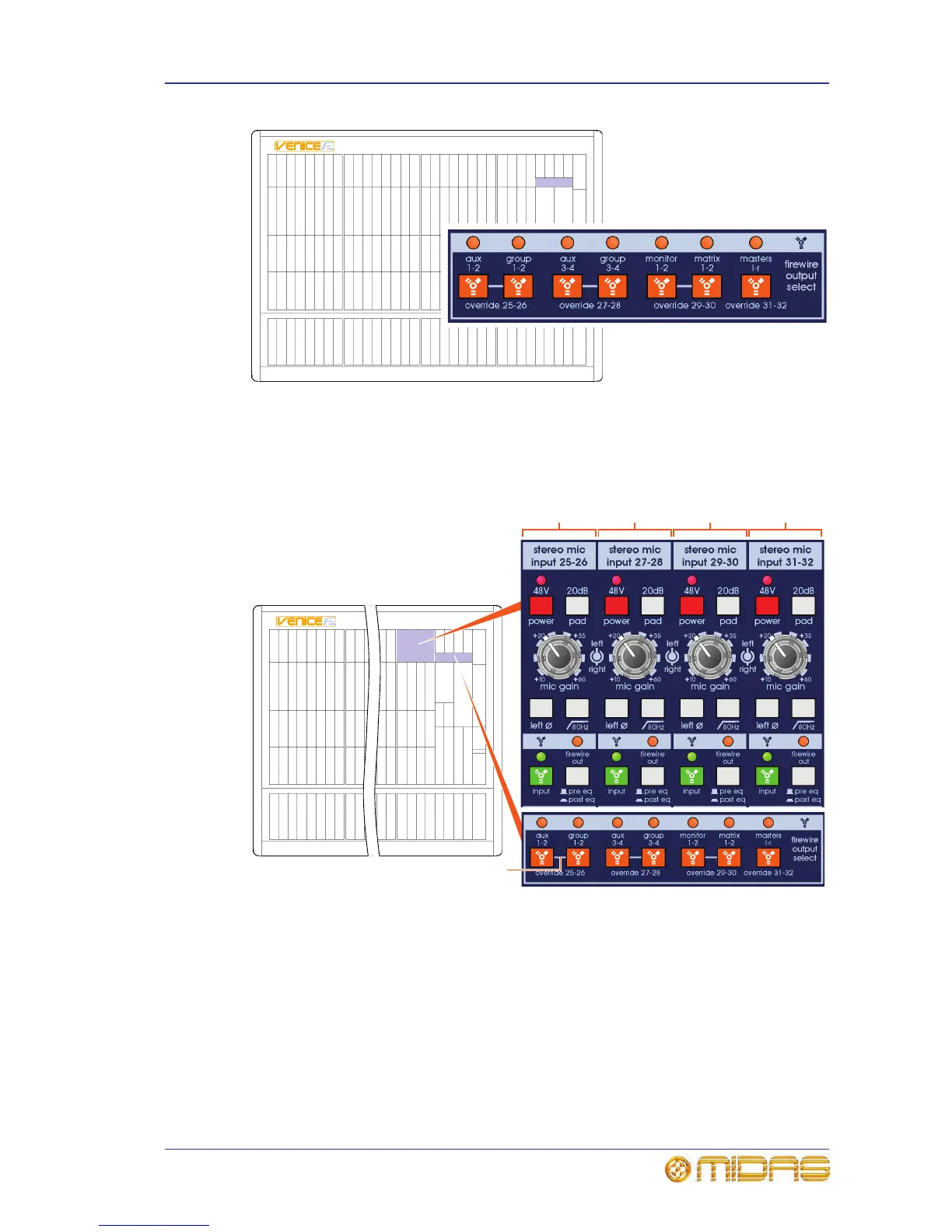

firewire output select section on the control surface
When an orange FireWire button is switched on (depending on button precedence), it
replaces the FireWire output of its respective stereo input channel for its associated
buses. The orange LEDs above illuminate to indicate which pair of buses are overriding
which stereo channel FireWire output.
The buttons in the firewire output select section override their respective stereo
channel FireWire output. (Although the above example uses a VeniceF32, this applies
to the equivalent stereo channels on all VeniceF consoles.) A. Stereo input channel
25-26 can be overridden by auxes 1 and 2 or groups 1 and 2. B. Stereo input channel
27-28 can be overridden by auxes 3 and 4 or groups 3 and 4. C. Stereo input channel
29-30 can be overridden by monitors 1 and 2 or matrices 1 and 2. D. Stereo input
channel 31-32 can be overridden by master left and right only. E. A bar, indicating that
the two adjacent override buttons are interlinked (in the same channel).
