Matrices 61
VeniceF
Operator Manual
Matrices
There is an output connector and insert connector on the rear panel for both matrix
outputs.

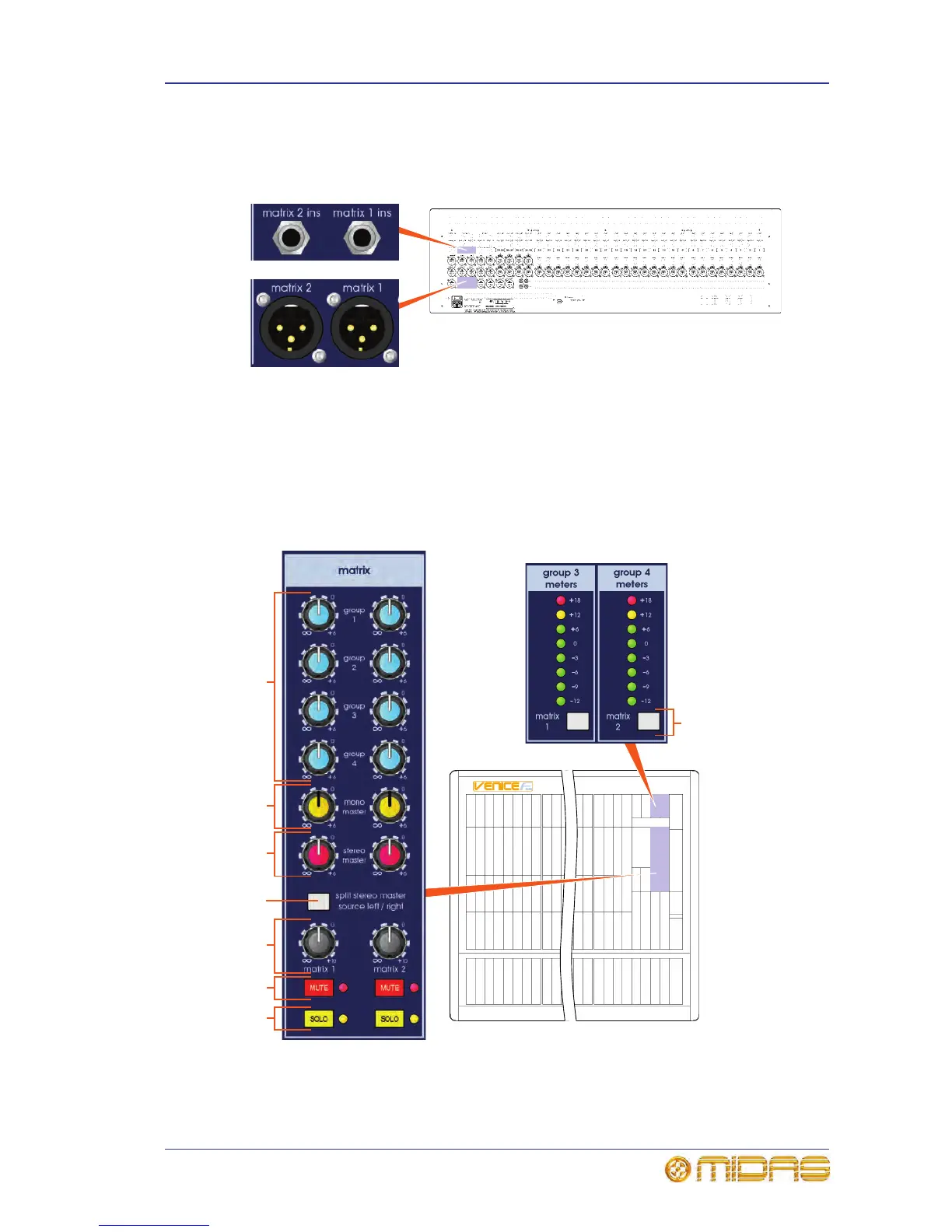

Two matrix inserts and two matrix outputs on the rear panel
FireWire output is available for the matrix outputs by overriding the relevant dual
stereo input channel 29-30. For more information, see “FireWire” on page 58.
The VeniceF provides another two outputs from the console, which can be contributions
from a combination of the console’s other outputs. The matrix signal can be made from
a combination of the group bus signals and mono, left and right master signals. They
can be used to drive additional speaker zones or as effects sends from the groups (like
the auxes from inputs).
matrix output section on the control surface
