Connecting up 13
VeniceF
Operator Manual
Connecting up
To ensure the correct and reliable operation of your equipment, only high quality,
balanced, screened, twisted pair audio cable should be used.
XLR connector shells should be of metal construction so that they provide a screen
when connected to the console and, where appropriate, they should have Pin 1
connected to the cable screen.
All Jack connector shells should be connected to the cable screen.
Audio connections
This section gives details of the audio connections of the VeniceF.

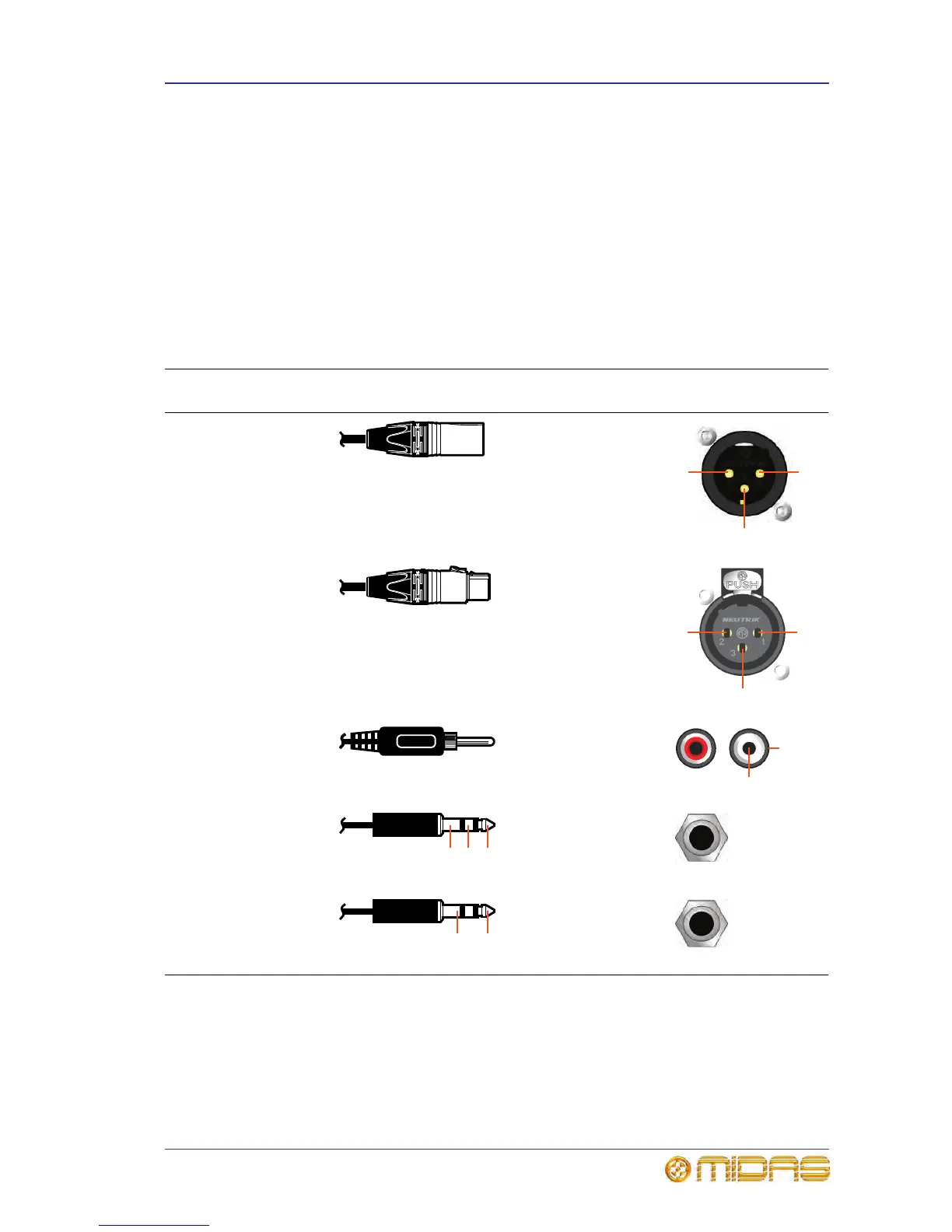

Table 1: Connector pinouts
Connector on rear
panel Example of plug Pinouts Example of socket
Male XLR chassis
connector (output)
1 = ground
2 = hot
3 = cold
Female XLR chassis
connector (mic input)
1 = ground
2 = hot
3 = cold
Pair of RCA
connectors (tape
in/out)
1 = ground
2 = signal
1/4” TRS Jack plug
(inserts)
1 (tip) = send
2 (ring) = return
3 (sleeve) =
ground
1/4” TRS Jack plug
(input, output)
1 (tip) = hot
2 (ring) = cold
3 (sleeve) =
ground
