RM-KB-LCD17x8/16KVM User Manual

Cabling Diagrams

Use the following diagrams as a guide for attaching cables to an external

console and/or computers you will be connecting to the RM-KB-LCD17x8/

16KVM.

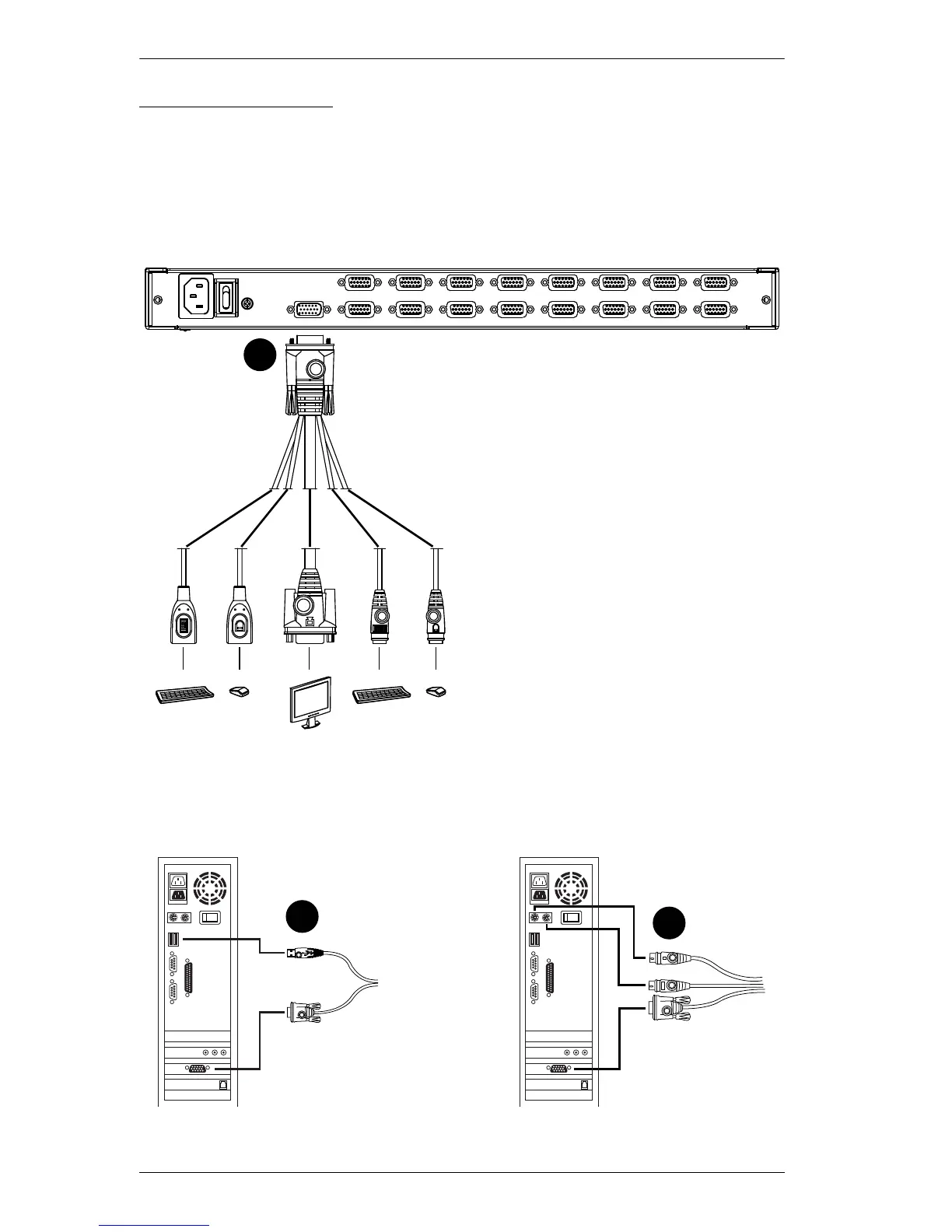

Console Cable Installation Diagram

KVM Cable Installation Diagrams

VGA

USB

PS/2

USB KVM Cable Connection PS/2 KVM Cable Connection
