1. Introduction
9

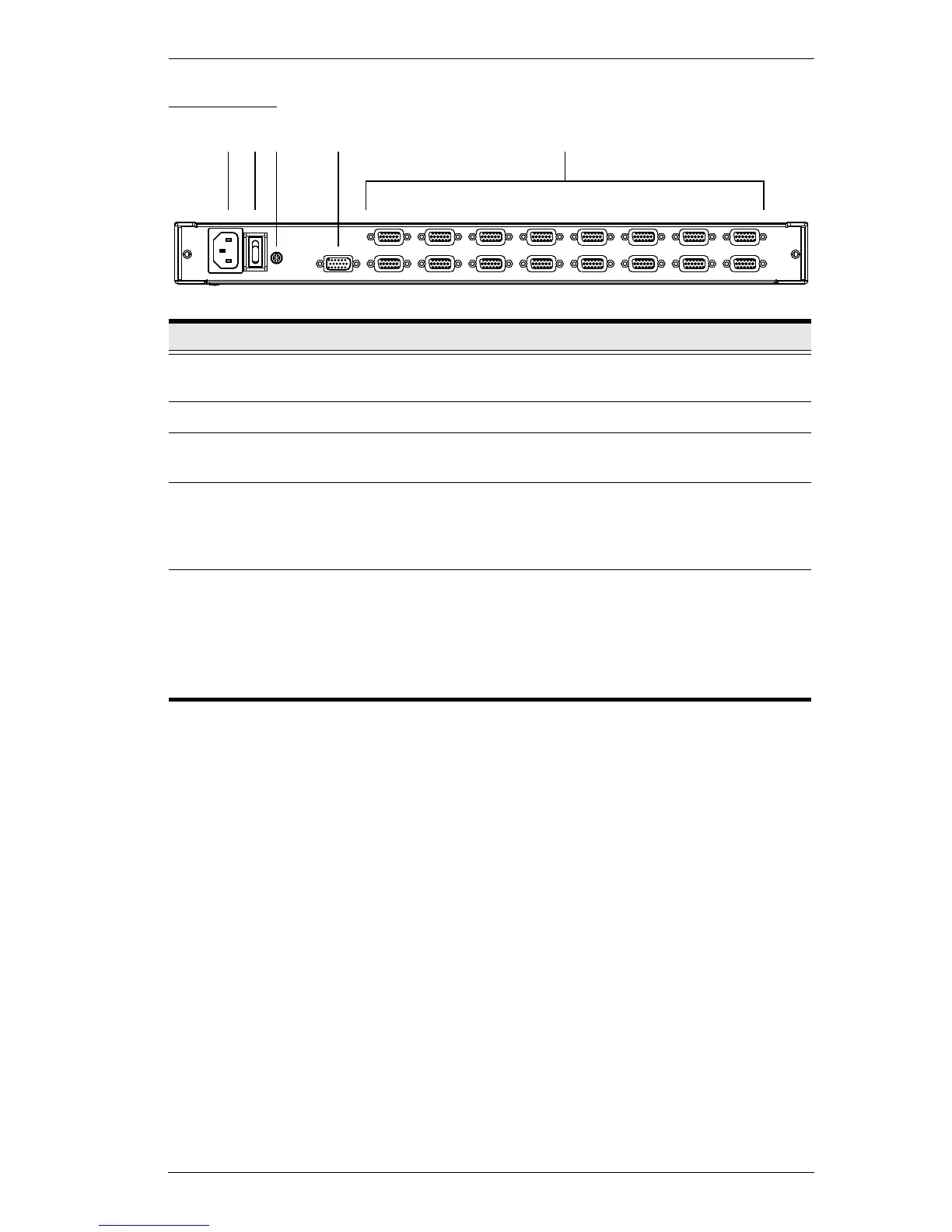

Rear View
No. Component Description
1 Power Socket This is a standard 3-prong AC power socket. The power cord
from an AC source plugs in here.
2 Power Switch This standard rocker switch powers the unit on and off.
3 Grounding
Terminal
The grounding wire used to ground the switch attaches here.
4 External
Console Port
For flexibility and convenience, the RM-KB-LCD17x8/16KVM
supports an independent, external, KVM console.
The external console keyboard, monitor, and mouse cables
plug in here.
5 KVM Port
Section
The cables that link to the computers plug in here.
Note: The shape of these SPHD connectors has been
specifically modified so that only KVM cables designed to
work with this switch can plug in (see the Cables section on
page 5, for details). Do NOT attempt to use ordinary 15 pin
VGA connector cables to link these ports to the computers.
To Next Page
