Middleby Marshall PS540 (Double) - Casters & Top P;N 34833; Section 2 Installation

12
SECTION 2
INSTALLATION
PARTS LIST FOR PS540 SERIES DOUBLE OVEN OPTION - BASE w/6
″″
″″
″ LEGS, CASTERS & TOP
P/N 34833
ITEM
NO. QTY PART NO. DESCRIPTION
1 1 37900-0025 COMPLETE BASE WELDMENT
2 4 37900-0102 TOP PLATE, LEG WELDMENT
3 2 22290-0009 SWIVEL CASTER W/BRAKE FLAT PLATE
4 2 22290-0010 SWIVEL CASTER FLAT PLATE
5 32 220373 3/8″-16 × 1″ HEX SCREW,SST
6 32 21416-0001 3/8″ FLAT WASHER, SS
7 32 21422-0001 3/8″ SPLIT LOCK WASHER, ZP
8 4 21256-0008 SCREWS FOR TOP 10-32 × 3/8″ 18-8, SL TRUS S
9 1 22450-0228 RESTRAINT CABLE ASSEMBLY
10 1 33486 TOP COVER 304 PANEL

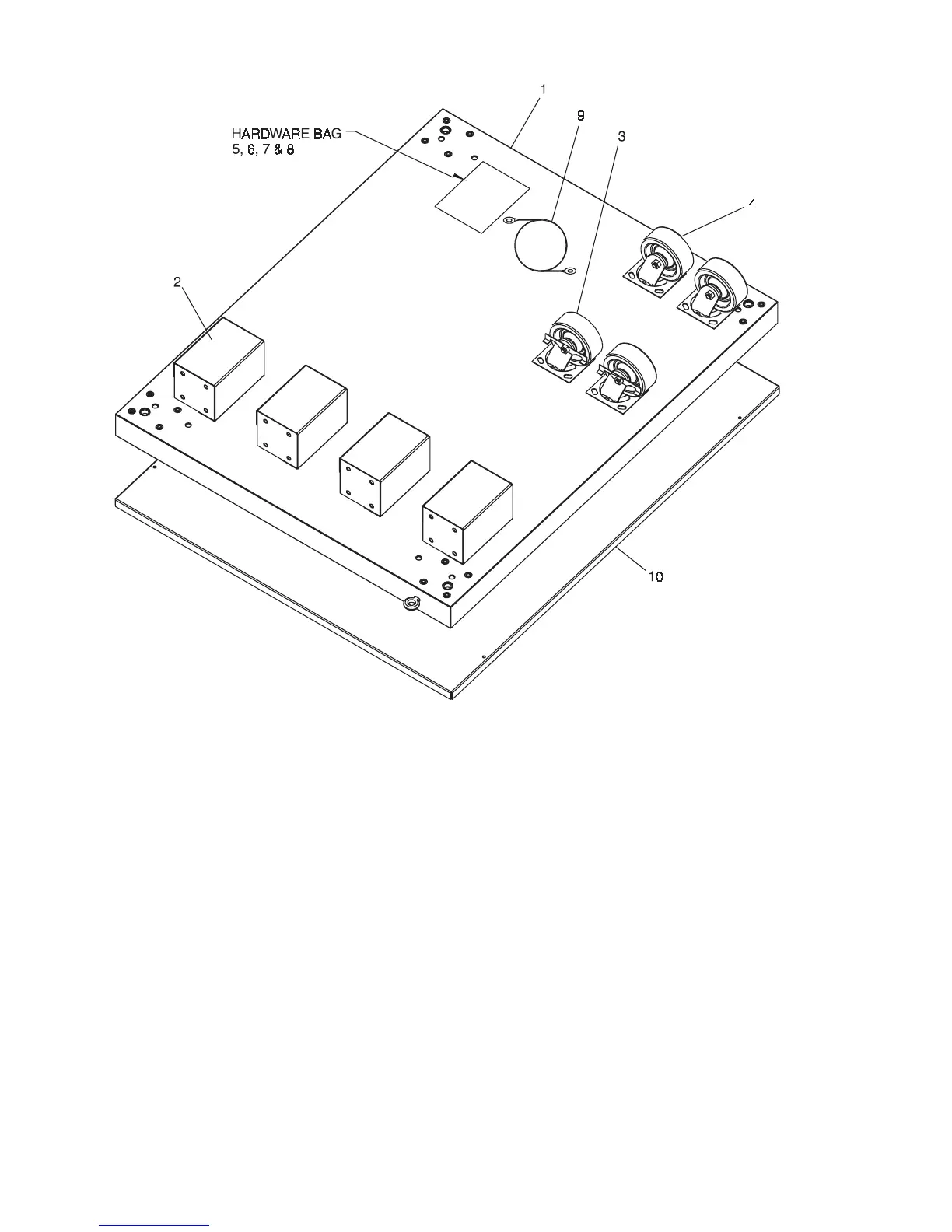

Figure 2-3. Model PS540 Double Oven
Option Base with Legs and Top
