I. MODEL IDENTIFICATION
The Middleby Marshall PS540-Series may be used either
as a single oven or stacked for use as double or triple
ovens. The major difference between the oven models in
this series is the width of the conveyor.
A single PS540-Series Oven (Figure 1-1) is mounted on a
base pad with legs and casters. A double oven (Figure 1-2)
consists of two, stacked, single ovens. A triple oven
(Figure 1-3) consists of three stacked single ovens. The
lower oven is mounted on a base pad with short legs and
casters.
On a double or triple oven, the ovens operate completely
independent. All ovens use identical controls and compo-
nents. One oven can be cleaned or serviced, while the
others are operating.
SECTION 1
DESCRIPTION

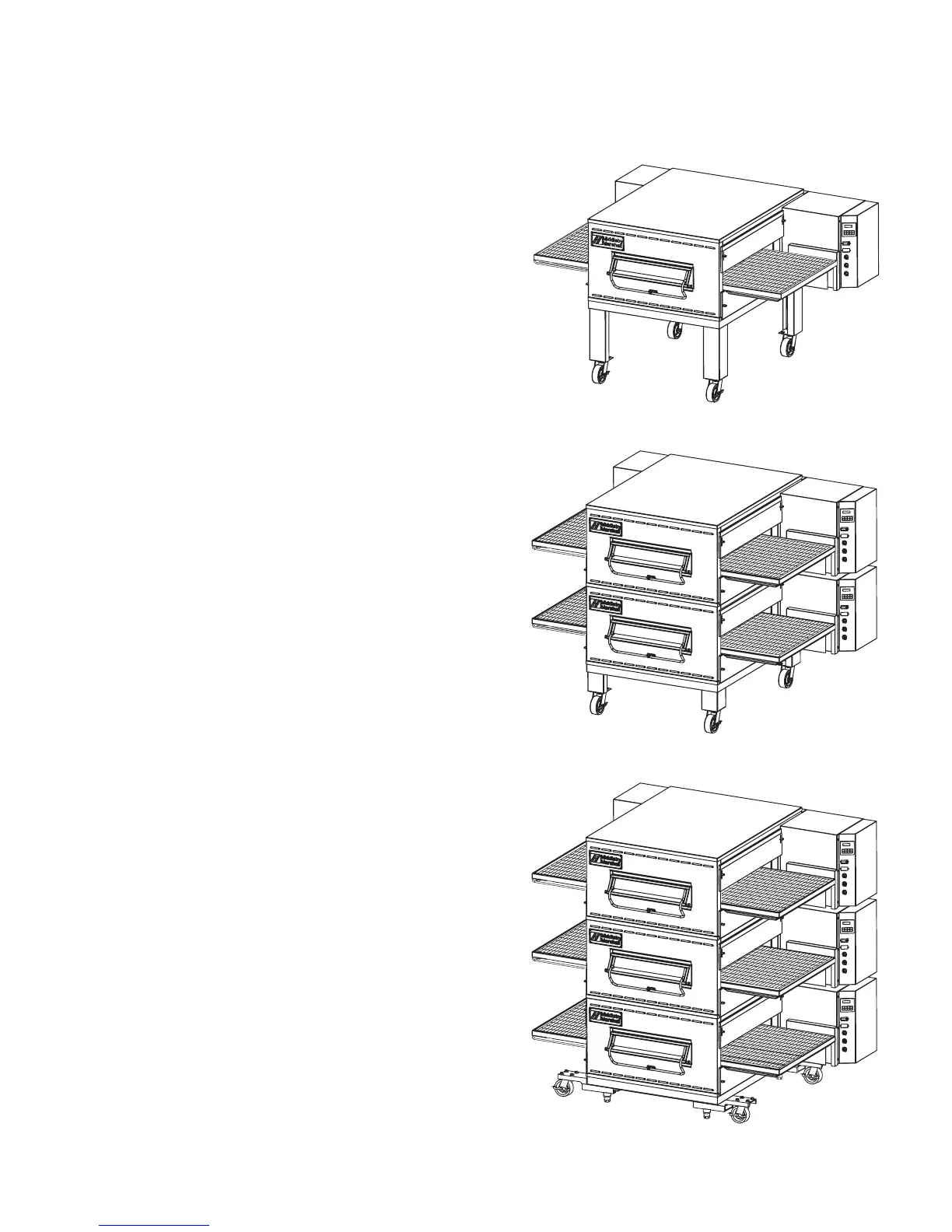

Figure 1-1. Single PS540 Oven
Figure 1-2. Double PS540 Oven
Figure 1-3. Triple PS540 Oven
