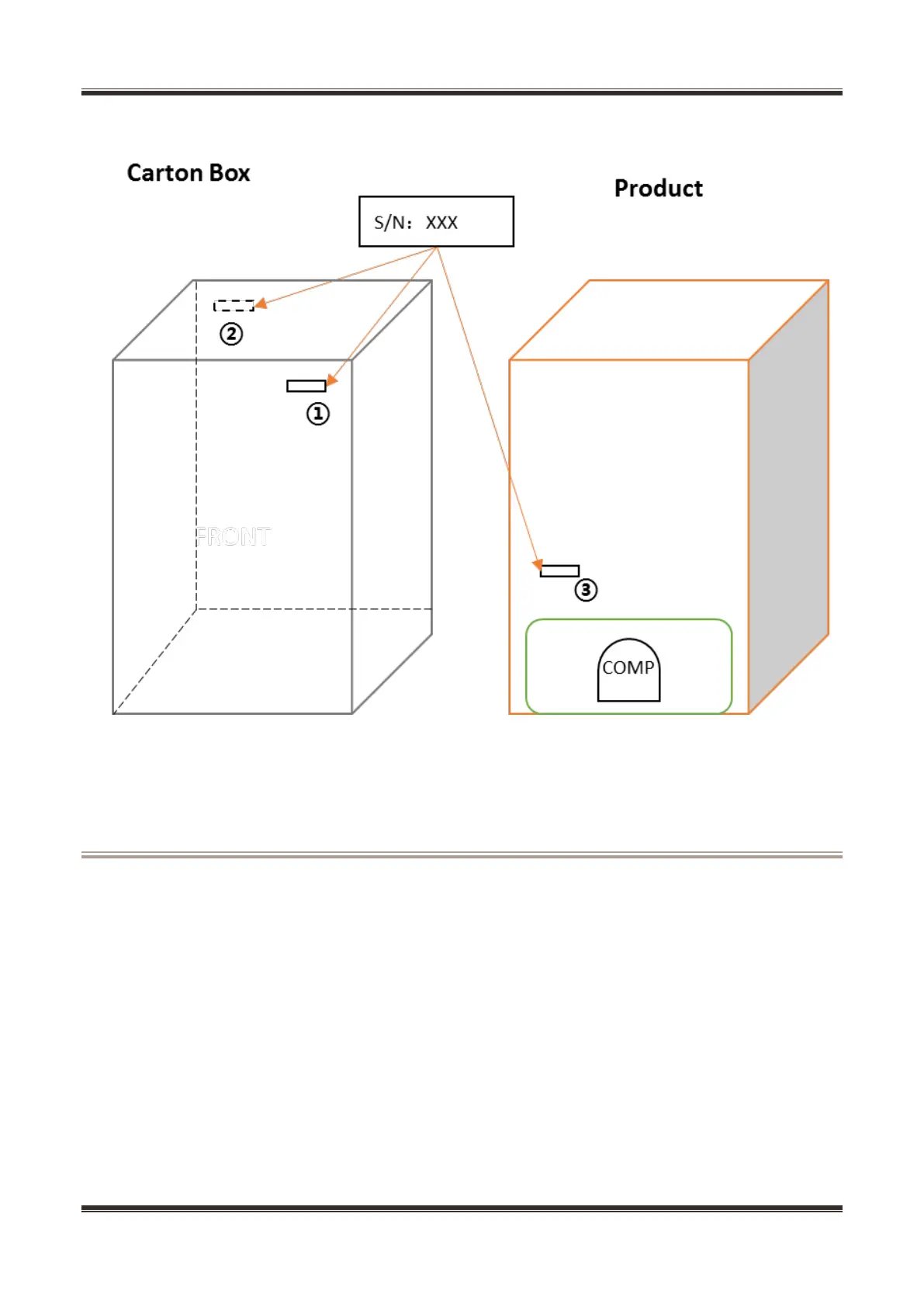

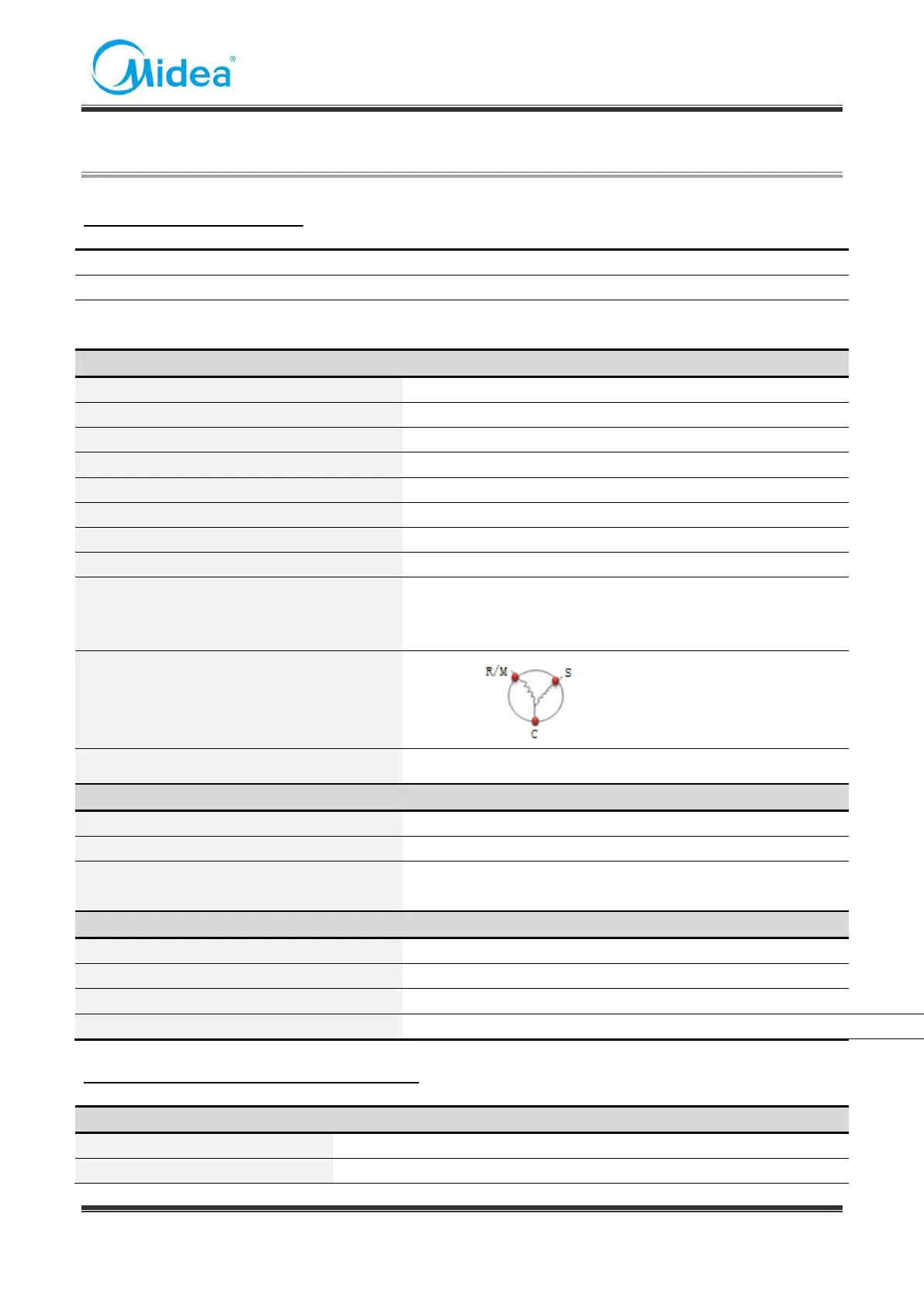

6. Product specification
6.1 Electrical parameters
Applicable Models
HD-663FWEN
Product Name
UR-BCD510WE-SQ
Product Code
92031020Z00681
92031020Z00682
Item
Specification
Specification
Refrigerant
R600a
Compressor
EZ65H1Y
Starter(PTC)
QPE2-A4R7MD3
Overload protector(OLP)
DRB26T61A1
Integrate PTC+OLP
None
Variable frequency driver board
None
Capacitor
10μF
Power filter
None
Winding resistance of compressor
wiring terminal
Rmc:10-20Ω
Rsc:30-50Ω
Rms=Rmc+Rsc
Winding resistance picture
The input power of compressor
75.8W
Motor
Fan motor of the freezing chamber
DC12V/≤4W
Fan motor of the refrigerating chamber
None
Electric damper of the refrigerating
chamber
None
Lights inside the refrigerator
Lights inside the freezing chamber
None
Lights inside the refrigerating chamber
115V/＜3.5W
others Lights
None
Switch of the refrigerator door
Sector
6.2 Cooling temperature setting range
Compartment
The highest (
o
C)
Lowest (
o
C)
Freezing
-12
-26
Refrigerating
10
1
