Midea 92031020Z00681

Service Manual_2018-V2.0
29

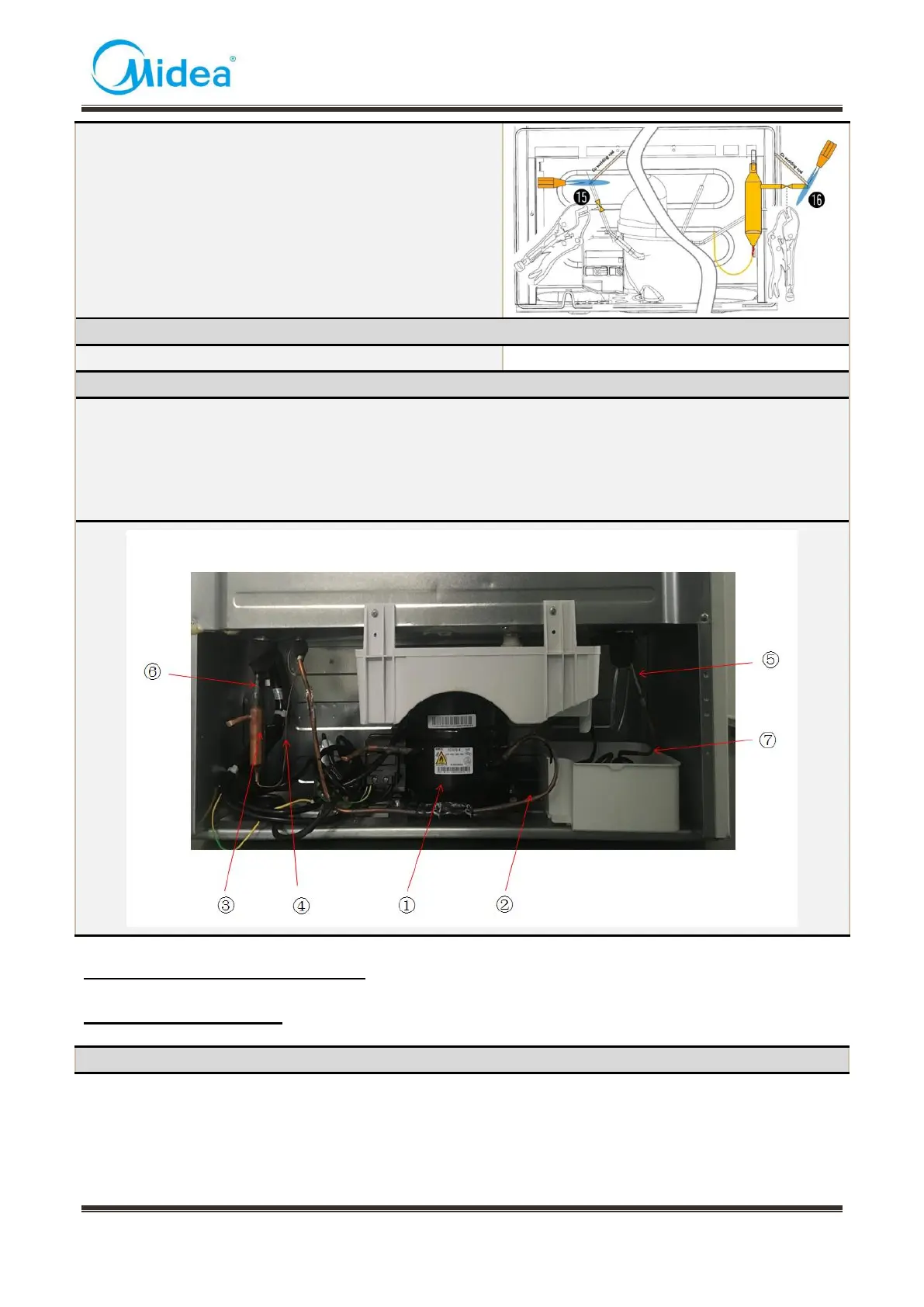

15）Use the vise grip pliers clamp the middle of the
process pipe, then seal welding process tube⓯⓰.
Back hanging wire tube condensor
None
Piping system in the compressor case
❶ Compressor ❷ Suction connection Pipe
❸ Drier ❹ Capillary Tube
❺ Anti-condensation pipe ❻ Condenser
❼ Exhaust evaporation pipe
8.8 Display control board(None)
8.9 Main control board
Main control board
