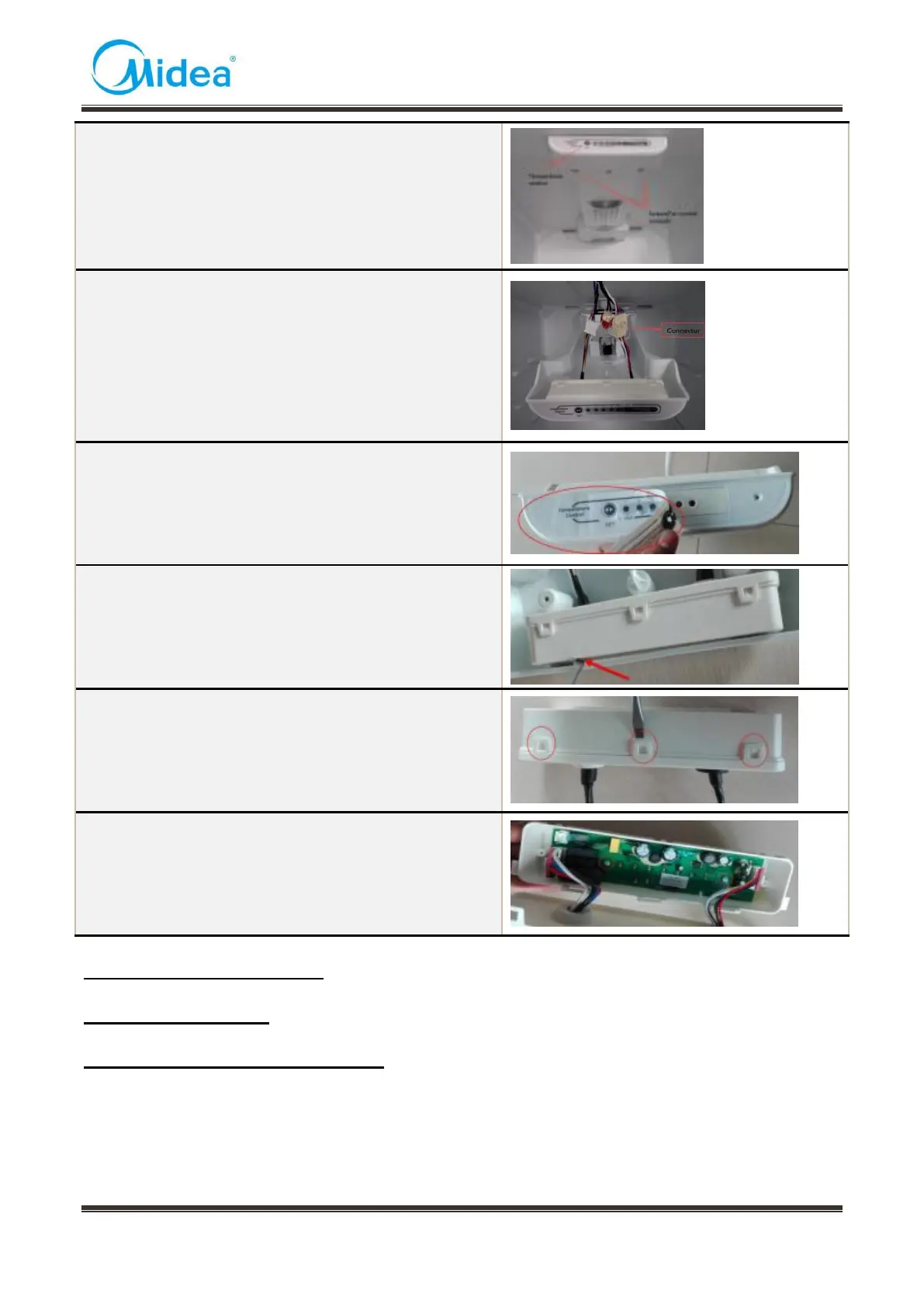

1）Remove two screws from the refrigerating air duct
with a cross screwdriver;
2）Pull all connector terminals out of the refrigerating
air duct to remove its components;
3）Uncover the temperature control indication sticker
on the cover plate of the air duct;
4）Gently pry out the PCB installation box with a
straight screwdriver to get the master control board
and installation box components;
5）Pry open the buckle of the PCB installation box with
a straight screwdriver to see the PCB board;
6）Remove 2 screws using a cross screwdriver to
remove the master control board. Pull out the
connector terminal and replace the master control
board in reverse steps;
8.10Water dispenser(None)
8.11Ice maker (None)
8.12water filter component (None)
