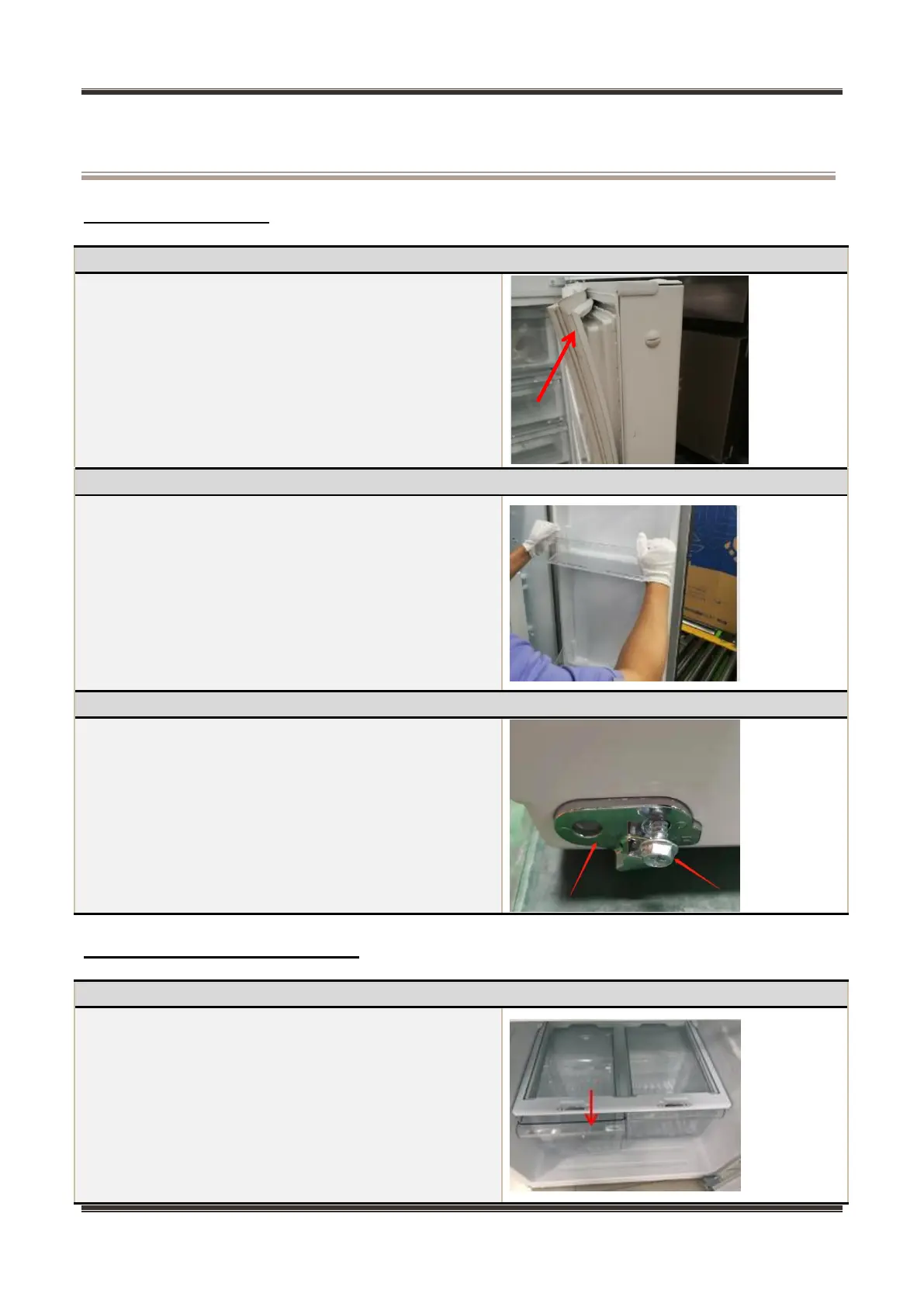

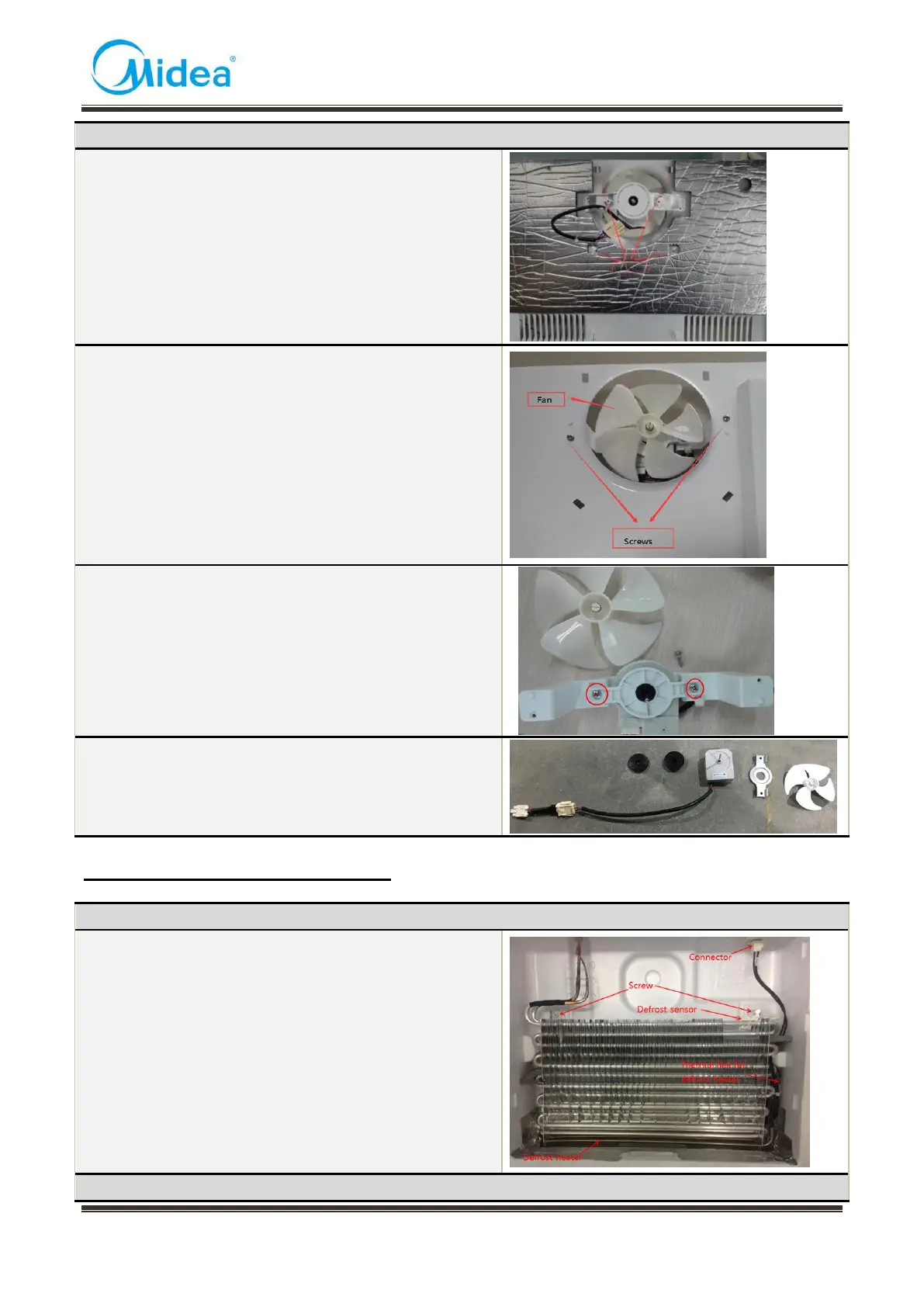

Fan motor of air duct
1）Disassemble buckles at the back of the freezing air
duct and remove 4 front cover plates;
2）Remove 3 screws using a cross screwdriver to get
the fan and components of fan brackets;
3）Remove 1 screws using a cross screwdriver to
separate fan brackets and the fan;
4）Separate the fan and fan blade (pull it out using
great force);
5）Replace the fan in reverse steps;
8.6 Evaporator and Defrost system
Evaporator in freezing chamber
Evaporator in freezing chamber
1） Remove the air duct components in freezing
chamber.
2） Disconnect all connectors.
3） Remove the welding on inlet and outlet tubes.
4） Remove two screws which are used to fix the
evaporator and remove the evaporator.
Components on the evaporator
