8.7 Compressor case
Compressor and the cooling system pipe
1）Cut off the power, remove the goods in the refrigerator,
with the tape to make the door fixed firmly and prevent
the door dropping when the refrigerator dumping.
Fuse 1）Disconnect the fuse connector.
2）Cut off the band which fixes the fuse.
3）Separate the fuse and the evaporator.
*Don’t break the welding of the evaporator in case that
only the fuse needs to be replaced.
Defrost heater
The defrost heater is located at bottom of the evaporator.
1）Disconnect the connector of defrost heater.
2）Cut off the band which fixes the defrost heater.
3）Take off the defrost heater from the evaporator.
*Don’t break the welding of the evaporator in case that
only the defrost heater needs to be replaced.

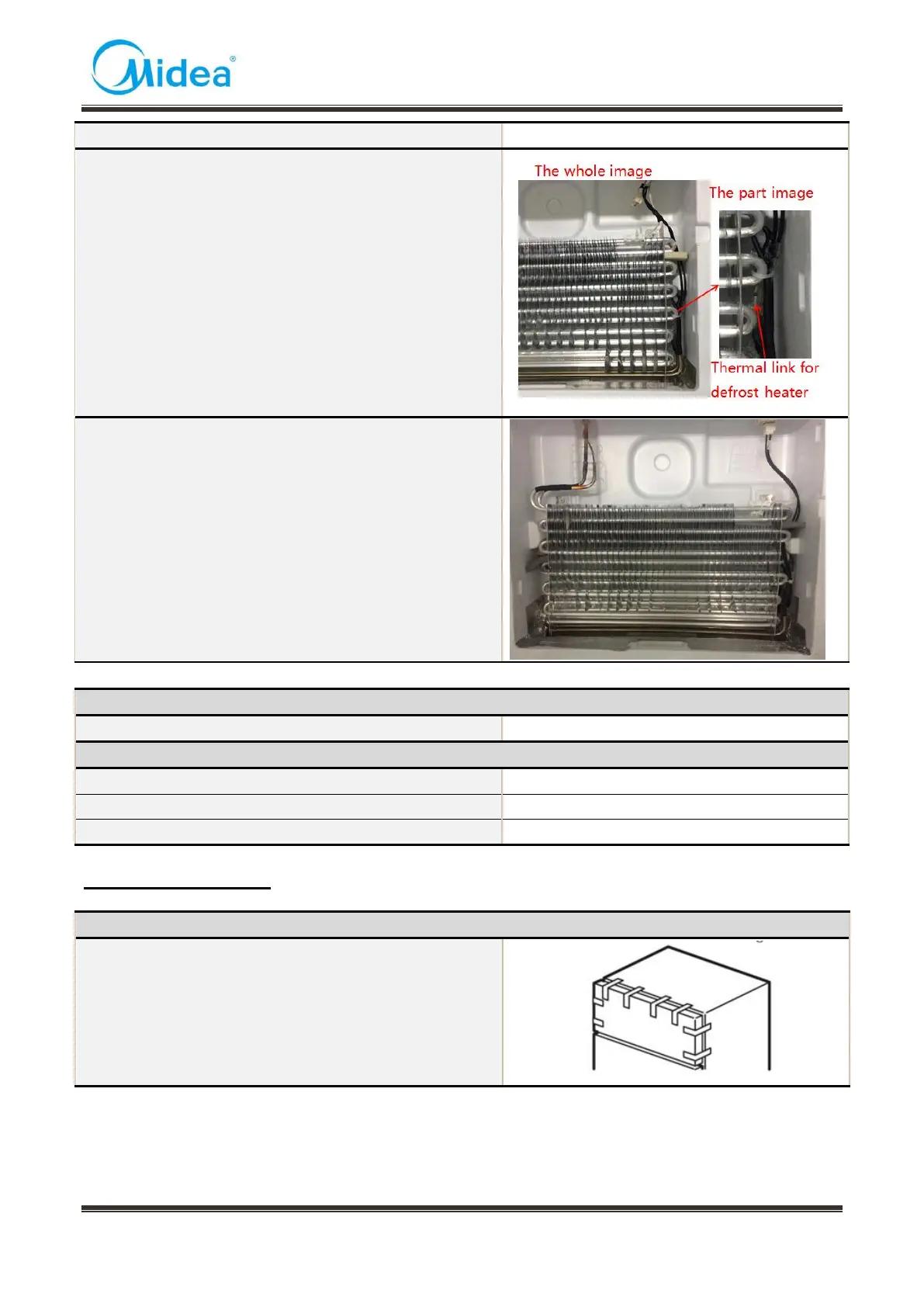

Evaporator in refrigerating chamber
Components on the evaporator
