Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
11

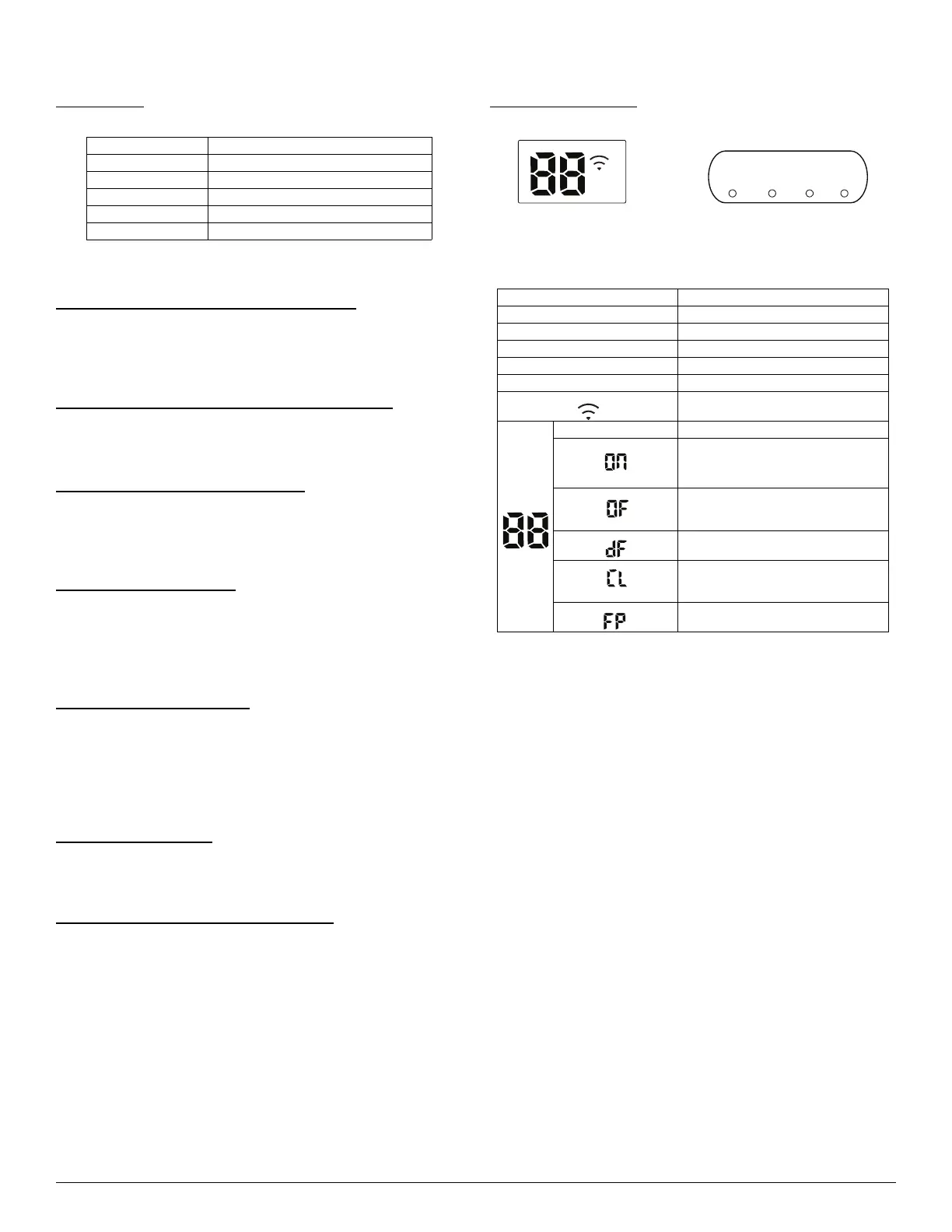

Operation Modes and Functions
Abbreviation
Table 7 — Unit Element Abbreviation
Safety Features
Compressor Three − Minute Delay at Restart
Compressor functions are delayed for up to ten seconds upon the first
start−up of the unit, and are delayed for up to three minutes upon
subsequent unit restarts.
Automatic shutoff based on discharge temperature
If the compressor discharge temperature exceeds 226F (108C) for
nine seconds, the compressor ceases operation.
Automatic shutoff based on fan speed
If the indoor fan speed registers below 200RPM or over 2100RPM for
an extended period of time, the unit ceases operation and the
corresponding error code appears on the indoor unit.
Inverter module protection
The inverter module has an automatic shutoff mechanism based on the
unit’s current, voltage, and temperature. If automatic shutoff is initiated,
the corresponding error code appears on the indoor unit and the unit
ceases operation.
Indoor fan delayed operation
• When the unit starts, the louver is automatically activated and the
indoor fan operates after a period of setting time or when the louver is
in place.
• If the unit is in the HEATING mode, the indoor fan is regulated by
the anti−cold wind function.
Compressor Preheating
Preheating is automatically activated when the T4 sensor is lower than
setting temperature.
Sensor redundancy and automatic shutoff
• If one temperature sensor malfunctions, the air conditioner continues
to operate and displays the corresponding error code, allowing for
emergency use.
• When more than one temperature sensor malfunctions, the air
conditioner ends the operation.
Display Function
Unit Display Function
Fig. 13 — Unit Display Function
ABBREVIATION ELEMENT
T1 Indoor room temperature
T2 Evaporator Coil temperature
T3 Condenser Coil temperature
T4 Adjusted Setting temperature
Tp Compressor discharge temperature
DISPLAY A DISPLAY B
Display Function
fresh Fresh (available on select units only)
defrost Defrost
run When the unit is on
timer When the TIMER is on
WiFi control (available on select
units only)
Temperature value Temperature
3S
Activation of TIMER ON, Fresh,
Swing, Turbo, or SILENT
3S
Cancellation of TIMER OFF, Fresh,
Swing, Turbo, or SILENT
Defrost
Active Clean (For inverter split type)
or self-cleaning (for fixed-speed
type)
Heating in room temperature under
8
C
Display A Display B
