DISASSEMBLY INSTRUCTIONS (CONT)
Electrical Parts
Procedure Illustration

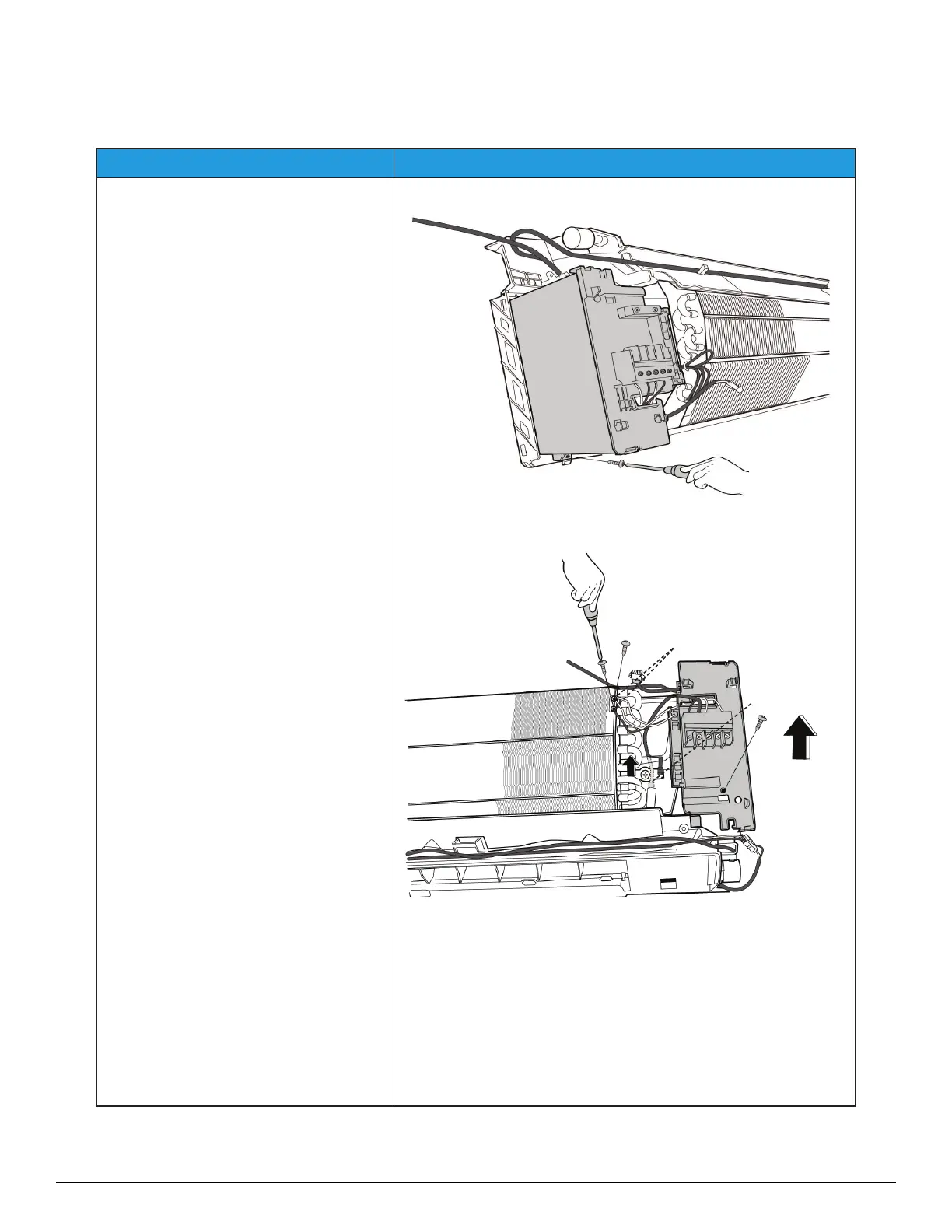

1) Remove one screw from the electrical
control box subassembly.
If you want to repair the electrical control
box components, perform step #1.
If you want to repair the main control board
assembly, perform steps #2 to #5 below.
2) Cut the ribbon by a shear, then pull
out the coil temperature sensor (T2).
3) Remove one screw from the electronic
control box and two screws used for
the ground connection.
T2 Sensor
Ground Screws
