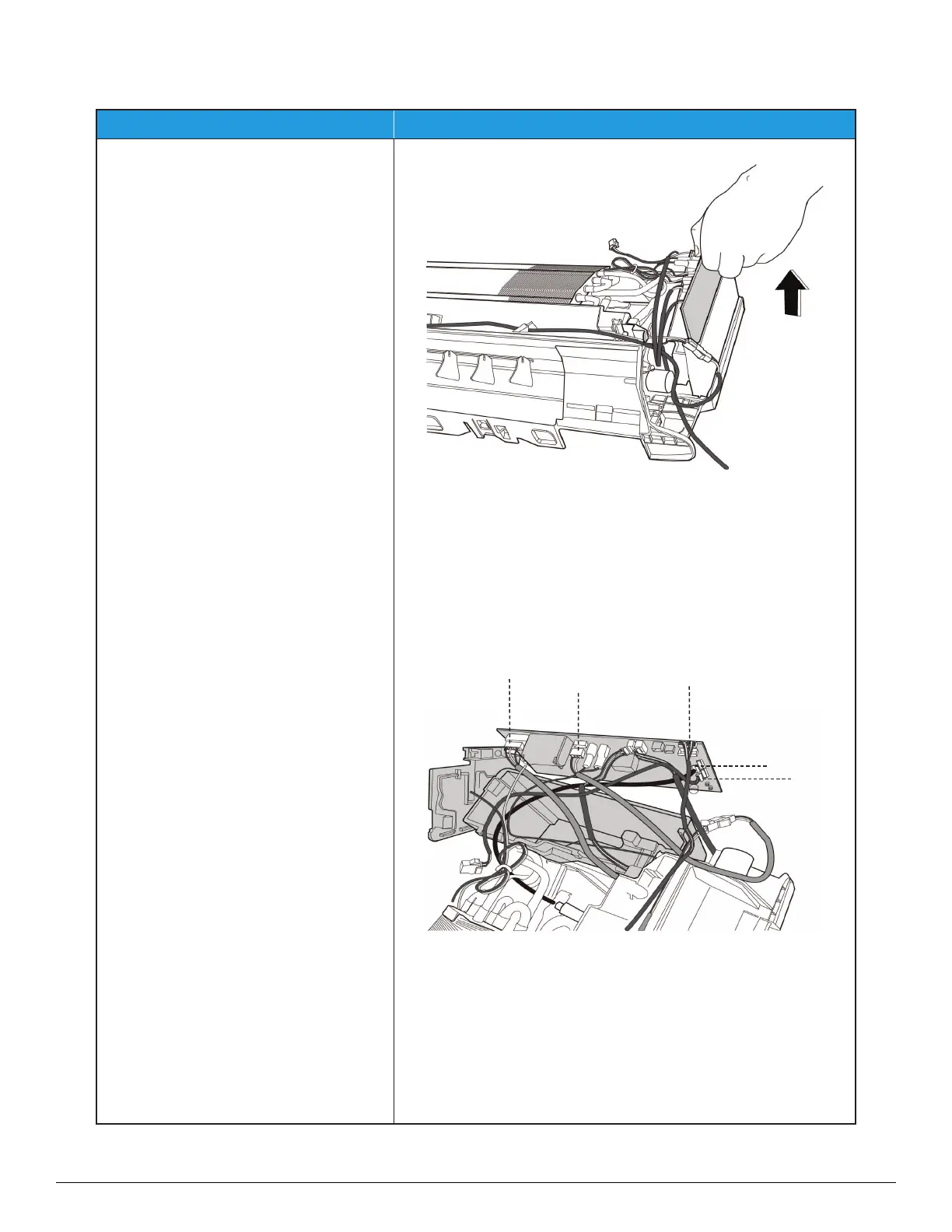

DISASSEMBLY INSTRUCTIONS (CONT)
Procedure Illustration
4) Pull out the electrical main board
along the direction indicated in the
image to the right.
5) Disconnect the connectors and remove
the main control board.
Fan motor
T2
T1
swing motor
ION(some models)
