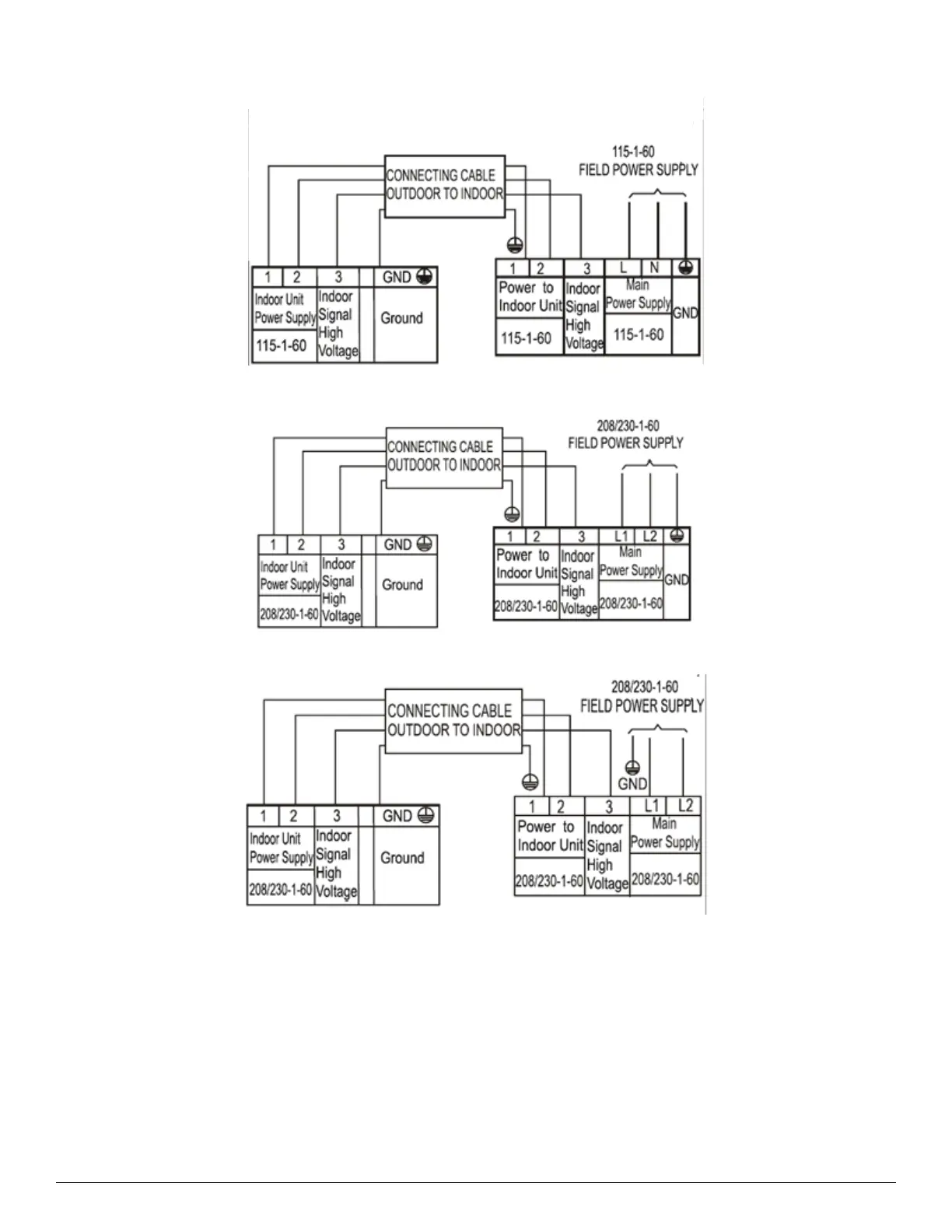

Connection Diagrams
Fig. 3 — Connection Diagram - 12K (115V)
Fig. 4 — Connection Diagram - 9K - 18K (208/230-1-60)
Fig. 5 — Connection Diagram - 24K (208/230-1-60)
NOTES:
1. Do not use thermostat wire for any connection between indoor and outdoor units.
2. All connections between indoor and outdoor units must be as shown (see figures 3 - 5). The connections are sensitive to polarity and will result in a fault
code.
