Service Manual_2023-V2.0
32

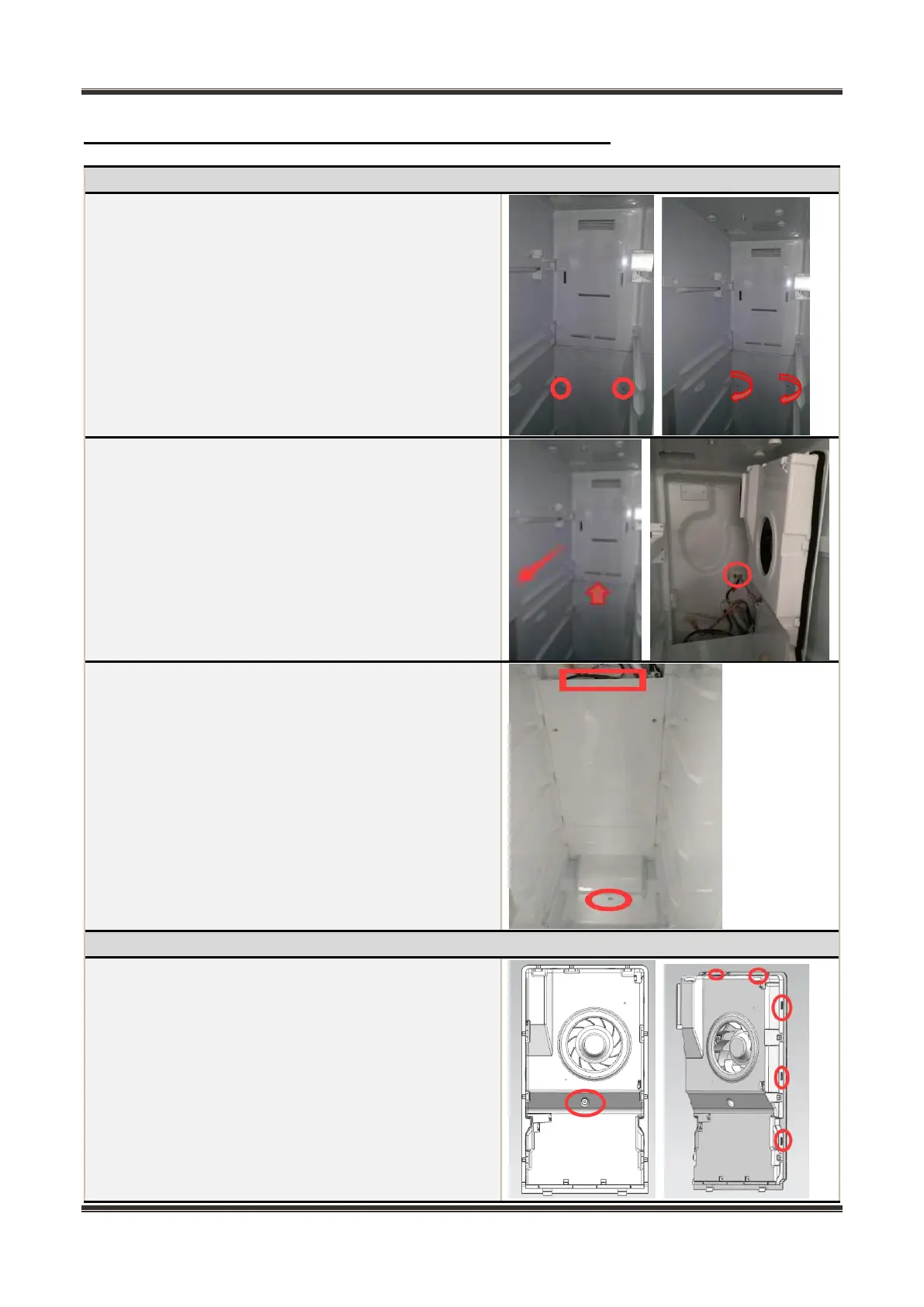

7.7 Air duct components in freezing chamber and fan motor
Air duct components in freezing chamber
1）First, take out 2 screw caps of air duct cover with
flat-blade screwdriver or blade, then remove 2 screws
fixing air duct cover.
2）As shown in the right picture, catch hold of upper
part of freezing air duct as shown in the picture, pull it
outward along the arrow direction with strength until air
duct is separated from refrigerator body. Remove the
wiring connector, and take out freezing air duct.
3）After the removal of upper freezing air duct. Take
out the 1 crew with cross screwdriver as shown in the
picture. Catch hold of cover plate of freezing lower air
duct shown in the picture, pull it out and take it out.
1） Take out 1 screw with cross screwdriver, pull the
snap joint of upper air duct outward to make cover
plate to fall off from air duct.
To Next Page
