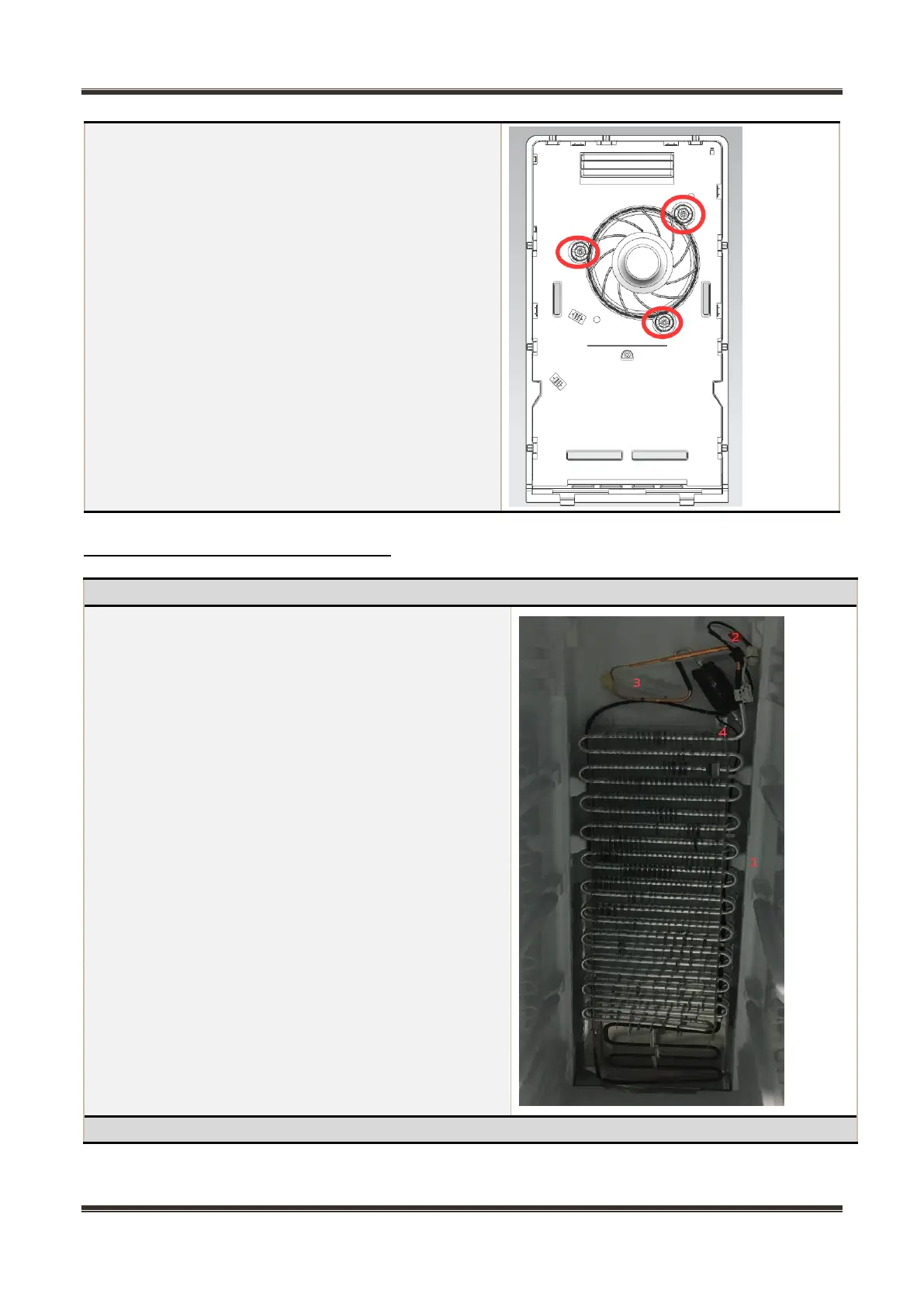

2） After the removal of cover plate of upper air duct in
freezing chamber. Remove the three fixing screws
anticlockwise by cross screwdriver. Complete
disassembly of the motor
7.8 Evaporator and Defrost system
Evaporator in freezing chamber
Evaporator in freezing chamber
1）Remove the air duct components in freezing
chamber.
2）Disconnect all connectors.
3）Remove the welding on inlet and outlet tubes.
4）Remove two screws which are used to fix the
evaporator and remove the evaporator.
Defrost heater components on the evaporator
