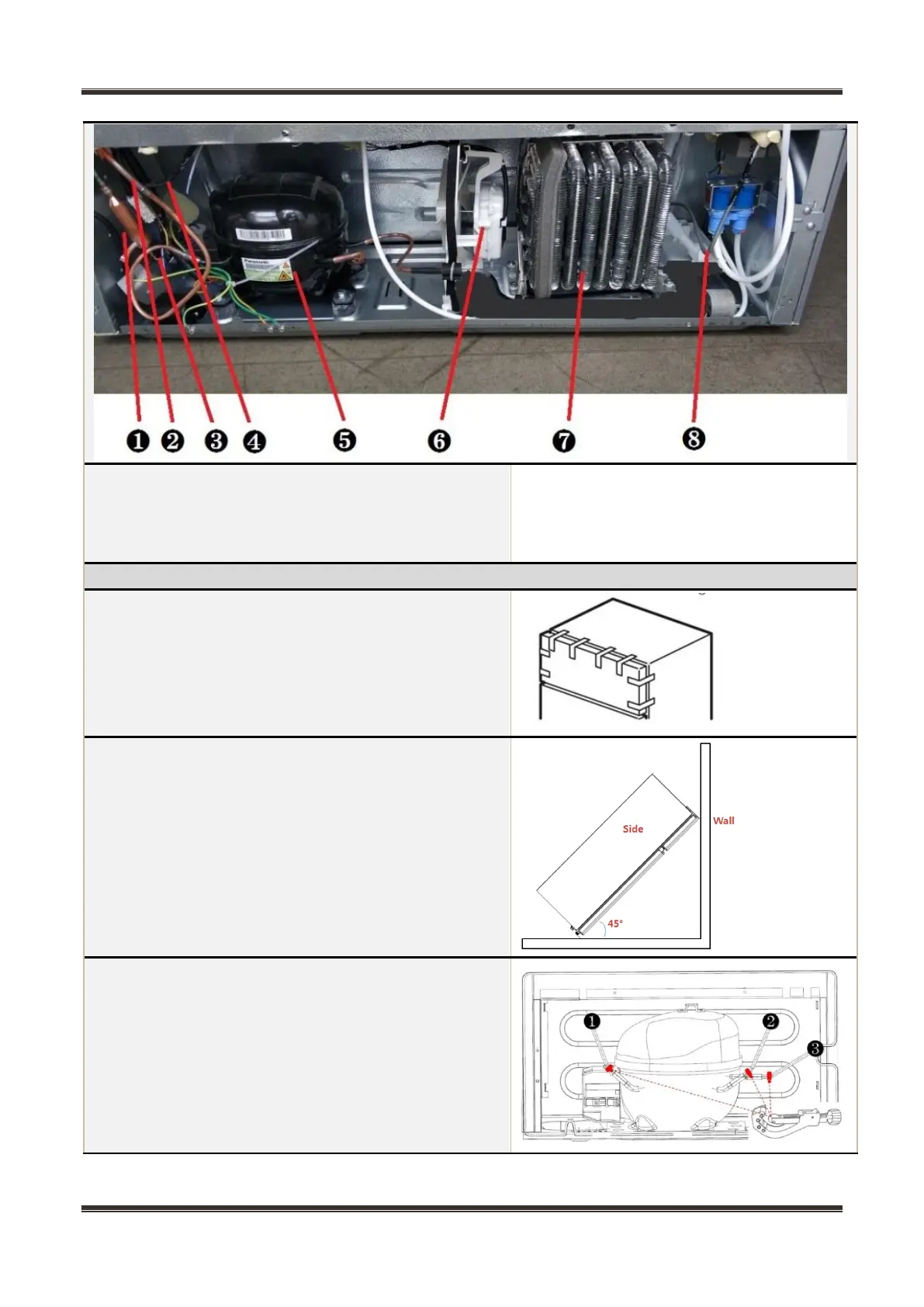

❶Drier
❷Suction Pipe
❸Capillary Tube
❹Anti-water condensed pipe
❺Compressor
❻Condenser fan
❼Condenser
❽Water valve
Disassembly and assembly of compressor
1）Cut off the power, remove the goods in the
refrigerator, with the tape to make the door fixed firmly
and prevent the door dropping when the refrigerator
dumping.
2）Slowly tilt the refrigerator forward, relying on the wall
or a solid enough object, leaving space to facilitate the
operation. For safety, it should be carried by someone to
prevent its falling.
3）Cut off the compressor pipeline.-❶Cut off the
process pipeline.-❷Cut off the low-pressure muffler.-
❸Cut off the high-pressure exhaust pipe.
