SET UP INSTRUCTIONS
Step 1:
Separate dehumidifier & bucket from the nested shipping/storage position. Remove all packaging materials
from the unit.
Step 2:
Rotate dehumidifier 90° and align the arrows on the two labels (one on the bucket and one on the
dehumidifier) and carefully sit the dehumidifier down onto the bucket. The water level window in the bucket
and the user interface buttons on the dehumidifier should be on the same side when properly stacked.
Check to ensure the arrows on the unit and bucket are aligned as in Fig. 4c for proper operation.
Step 3:
Plug the unit in and press the power button and the unit is ready to run in normal (bucket) mode.

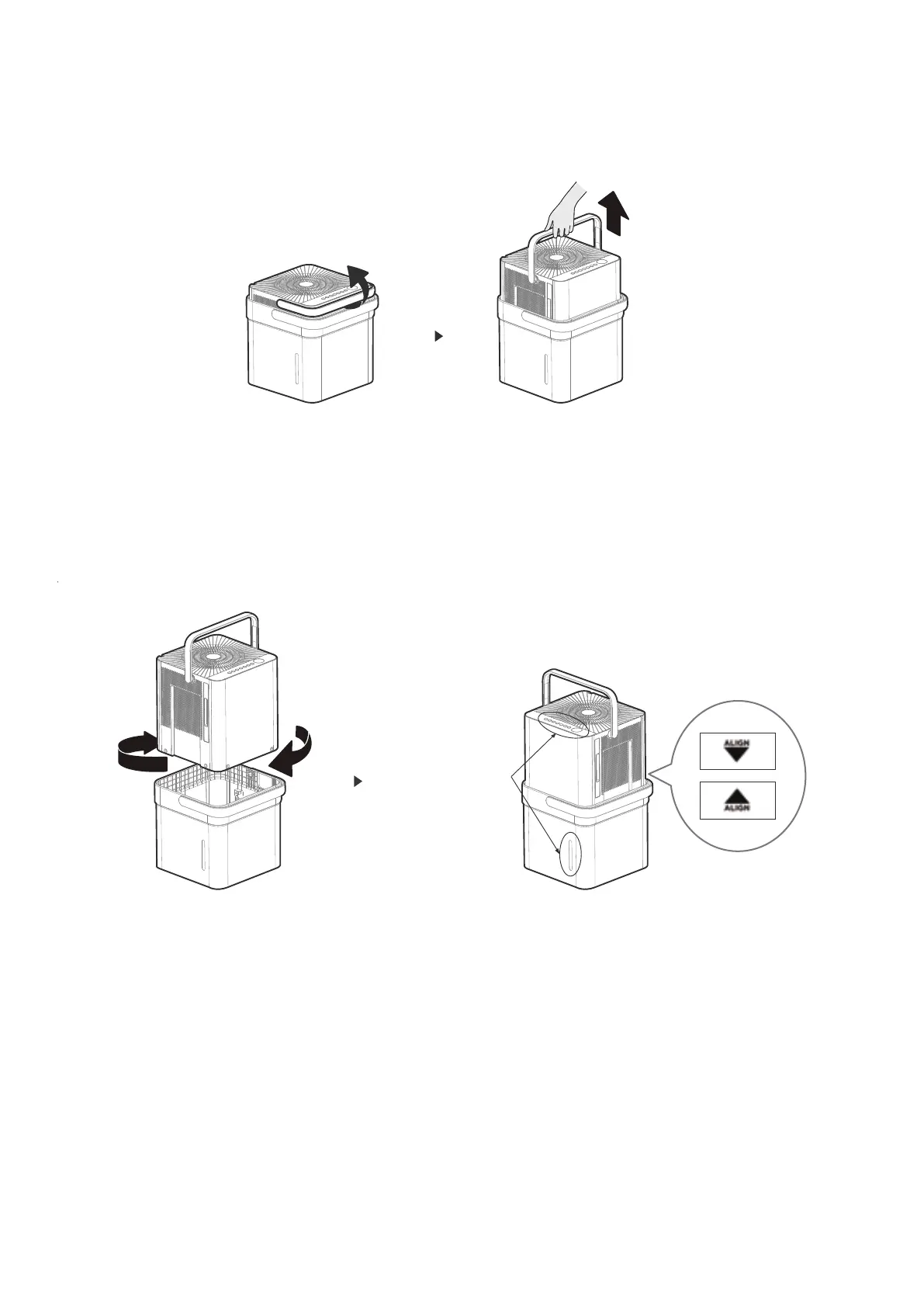

Fig. 3a Fig. 3b
Nested Shipping & Storage Position
Rotate dehumidifier 90°
User Interface
Buttons and
Water Level
Window Aligned
on the same side
To Next Page
