Safety
Precautions
Installation
Requirements
Installation
Instructions
Method 2 - Power Supply Cord
IMPORT
ANT:
•
The power cord and c
onnections must comply with the National
Electrical Code, Section 422 and/or local codes and ordinances.
Recommended cord length is 54" min. and 64" max.
•
A mating 3 prong, ground-type wall rec
eptacle is required in a cabinet
next to the dishwasher opening.
•
A power cord kit part #BK500 is av
ailable for purchase from an
authorized parts dealer.
1. Drill a 1
" (3.8 cm) hole in the cabinet rear or side. Preferred and
Optional loca

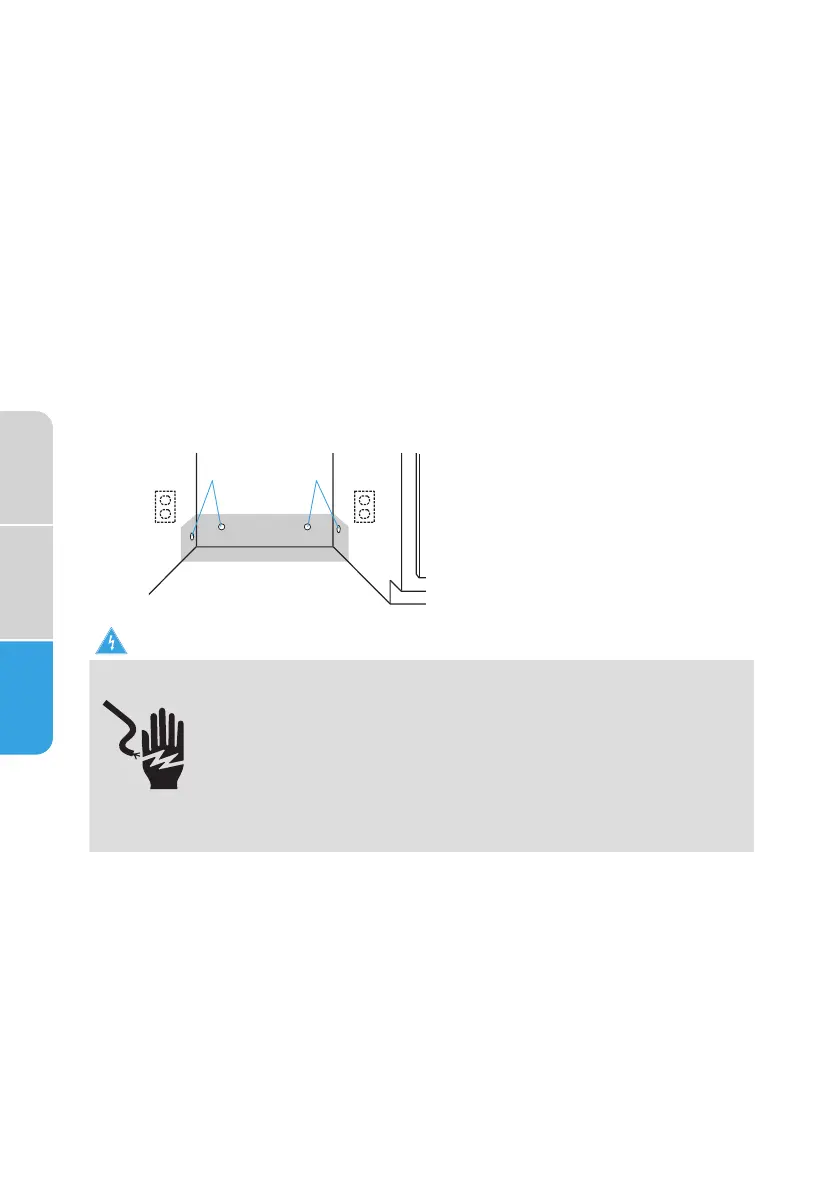

tions are shown in the following graphic.
2. Smooth edges of hole for power cord.
Wood Cabinet - Sand edges of hole until smooth.
Metal Cabinet - Cover edges of hole with grommet (not provided).
3. Attach power cord to dishwasher before moving it into the opening.
See “Connect Power Supply” section for proper installation technique.
ba
a
Preferred Locations
b
Optional Locations
WARNING
Electrical Shock Hazard
•
Plug into a grounded 3 prong outlet.
•
Do not remove the ground prong fr
om the power cord
plug.
•
Do not use an adapter.
•
Do not use an extension cord.
•
Failure to do so can result in death, fi
e or electrical
shock.
PREPARE TO CONNECT WATER LINE
1. Drill a
" (1.3 cm) hole in the cabinet side, rear or floo . Preferr
ed and
optional locations are shown in the following graphic.
To Next Page
