Midea MDF24P1B Series Installation Instructions

3. Install a UL listed/CSA approved strain relief.
4. Route the direct wire cable in the channel on the right-hand side of the
dishwasher base. Make sure that the dishwasher is not resting on and/
or pinching the wire.
5. Pull direct wire through strain relief in terminal box.
a
a
Strain Relief

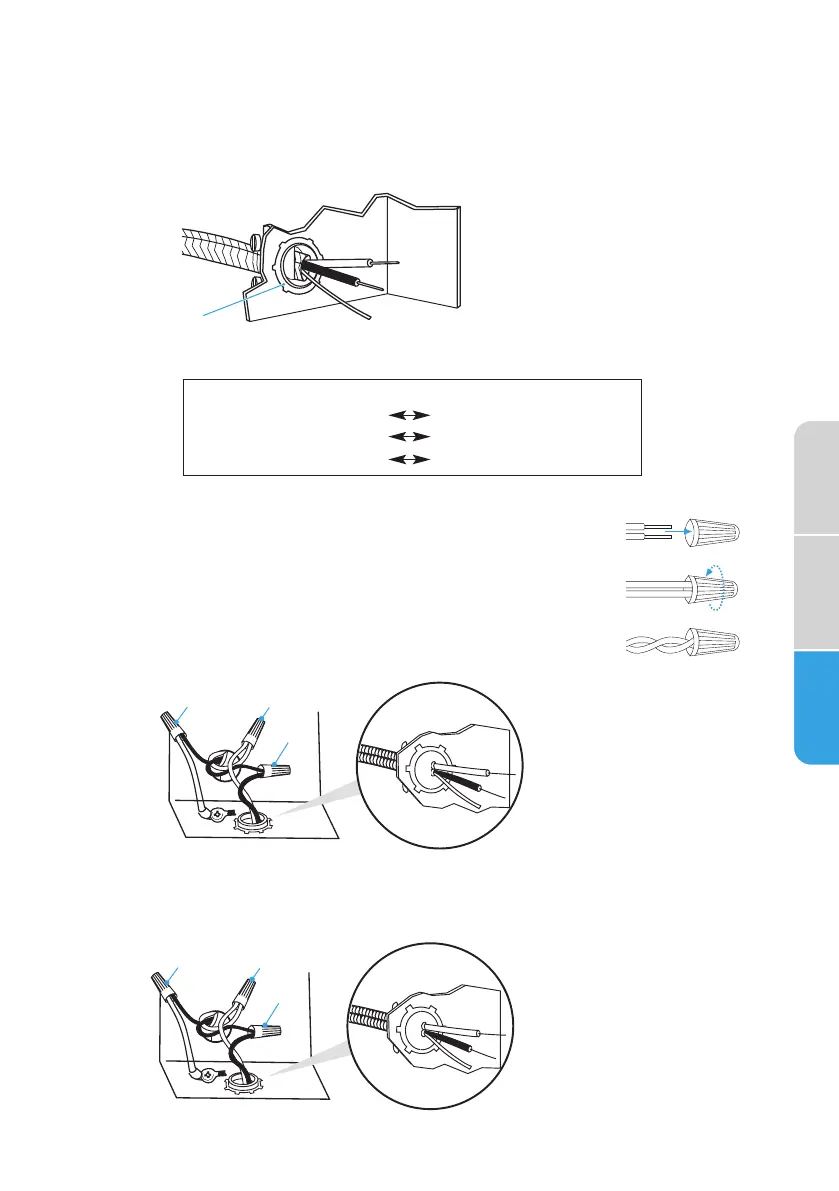

6. Connect the wires as follows using UL listed wire nuts of the
appropriate size to connect direct wire to 16-gauge dishwasher wire.
Terminal box wire:
white
black
ground connector
Power supply wire:
white
black
ground wire
NOTES:
•
Use UL listed wire nuts of the appropriate size
to connect your household wiring to 16-gauge
dishwasher wiring.
•
Insert wire ends into twist on connector. Do not
pre-twist bare wire.
•
Twist connector.
•
Gently tug on wires to be sure both wires are
secured.
a
b
c
a
Ground
b
White
c
Black
7. Tighten strain relief screws to secure cord.
8. Reinstall terminal box cover with wire nuts inside terminal box.
9. Make sure wires are not pinched by cover.
a
b
c
a
Ground
b White
c Black
Safety
Precautions
Installation
Requirements
Installation
Instructions
23
