Midea MDF24P1B Series Installation Instructions

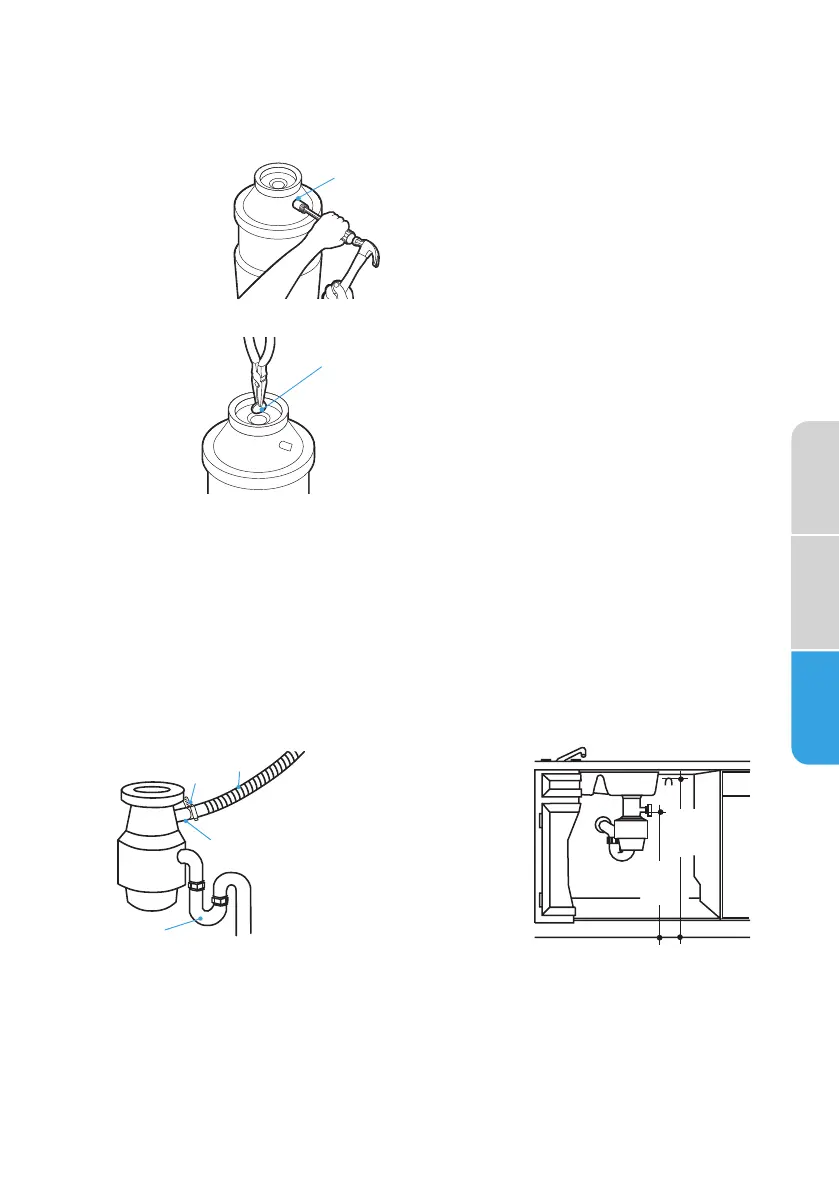

Option 3 – (Garbage Disposal - No Air Gap):
1. Remove the knockout drain plug from the disposal inlet. Using a
screwdriver and hammer, firmly tap the plug. he plug will separate
and fall into the disposal.
a
a Disposal Inlet
2. R
emo
v
e the drain plug from the disposal.
a
a
Disposal Drain Plug
IMPORTANT: If you need to cut the drain hose to fit the diame er of the
connection, cut only the rubber end of the hose, as shown earlier in this
section (do not cut into the ridged section).
3. Using a screw-type clamp*, attach the drain hose to the garbage
disposal inlet.
NOTES:
•
This connection must be located before the drain trap and at least 20"
(50.8 cm) above the floor whe e dishwasher will be installed.
•
It is recommended that the drain hose be looped up and securely
fastened to the underside of the counter at a minimum height of 32"
(81.3 cm).
b
a
c
d
a
Drain Hose
b
Screw-Type Clamp
c
Garbage Disposal
Inlet
d
Drain Trap
18"
Min.
32"
Min.
32"
Min.
18"
Min.
* Parts available from local plumbing supply store.
Safety
Precautions
Installation
Requirements
Installation
Instructions
29
