Midea MDF24P1B Series Installation Instructions

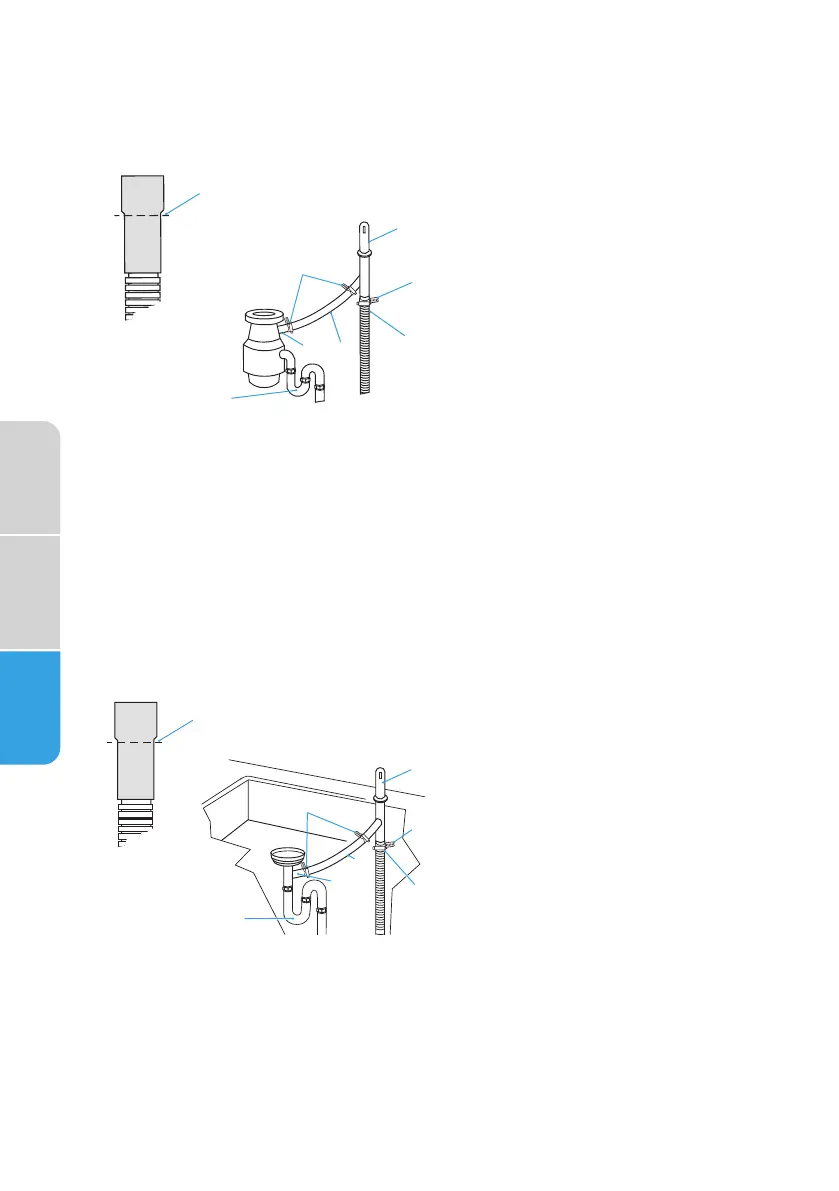

4. Use a rubber hose connector* with a screw type clamp* to connect air
gap to garbage disposal inlet.
NOTE: This connection must be located before the drain trap and at
least 20" (50.8 cm) above the floor whe e dishwasher will be installed.
a
b
f
c
d
e
g
h
a
Drain Hose - Cut Here if
Needed
b
Screw-Type Clamps
c
Air Gap
d
Screw-Type Clamp
e
Drain Hose
f
Rubber Hose Connector
g
Garbage Disposal Inlet
h Dr
ain T
r
ap
*Parts available from local plumbing supply store.
Option 2 – (No Garbage Disposal - With Air Gap):
IMPORTANT: If you need to cut the drain hose to fit the diame er of
the connection, cut only the rubber end of the hose, as shown earlier in
this section (do not cut into the ridged section).
1. Attach drain hose to air gap with large screw-type clamp. Cut the
rubber end of the drain hose, as needed.
2. Use a rubber hose connector* with spring or screw type clamps* to
connect air gap to garbage disposal inlet.
NOTE: This connection must be located before the drain trap and at
least 20" (50.8 cm) above the floor whe e dishwasher will be installed.
a
b
f
c
d
e
g
h
a Drain Hose - Cut Here if
Needed
b
Screw-Type Clamps
c
Air Gap
d
Screw-Type Clamp
e
Drain Hose
f
Rubber Hose Connector
g
Waste Tee
h Drain Trap
*Parts available from local plumbing supply store.
Safety
Precautions
Installation
Requirements
Installation
Instructions
28
