Midea R410A T3 50Hz Top-discharge Series MCAC-UTSM-201707
105

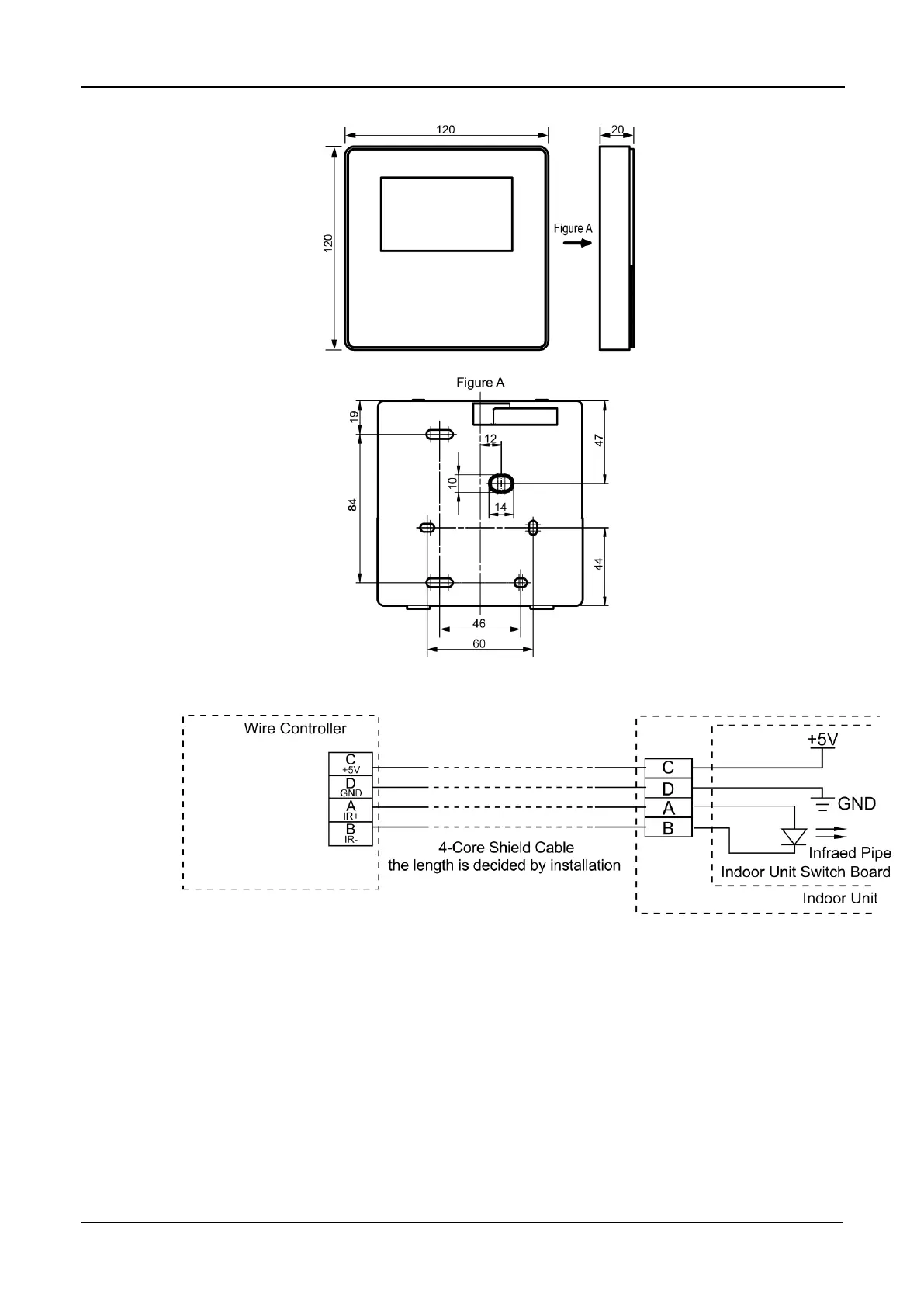

2. Wiring principle sketch:
3. Wiring figure:
Connect two terminals of embedded 4-core shielding wire with the switching wires of
wired controller and signal receiving board. Make sure the sequence of 4 terminals (A,
B, C and D) should correspond to the wire sequence of signal switching wires (A, B, C
and D).
