5. Wiring

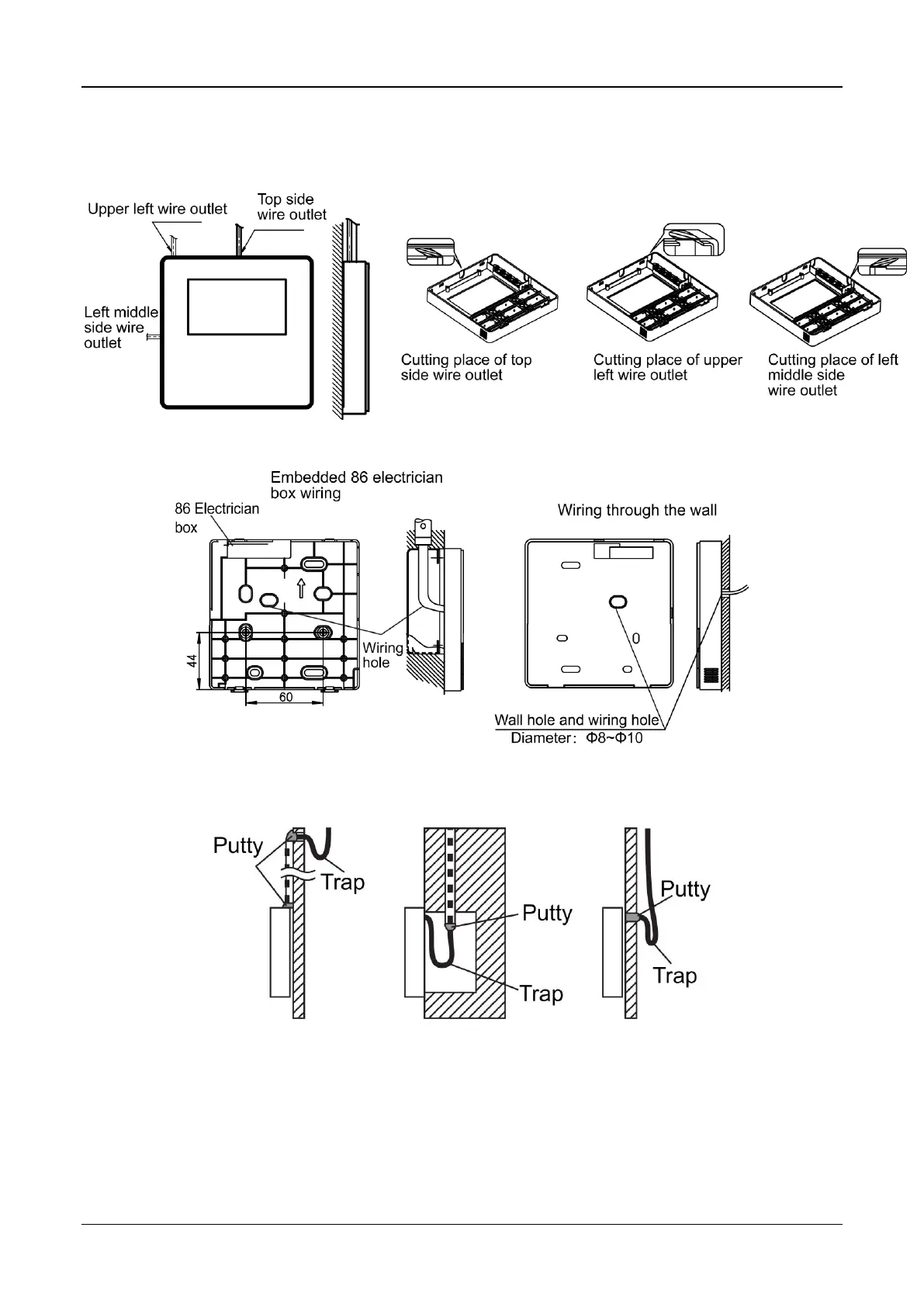

A. Wiring, three outlet positions
B. Shielded wiring
Avoid the water enter into the wired remote controller, use trap and putty to seal the
connectors of wires during wiring installation.
When under installation, reserve certain length of the connecting wire for convenient to take
down the wired remote controller while during maintenance.
6. Wired controller’s front cover installation:
After adjusting the front cover and then buckle the front cover. Avoid clamping the
communication switching wire during installation.
