Midea MV6-R450WV2GN1 Service Manual

V6R VRF 50/60Hz
14
Midea V
6R Series Service Manual

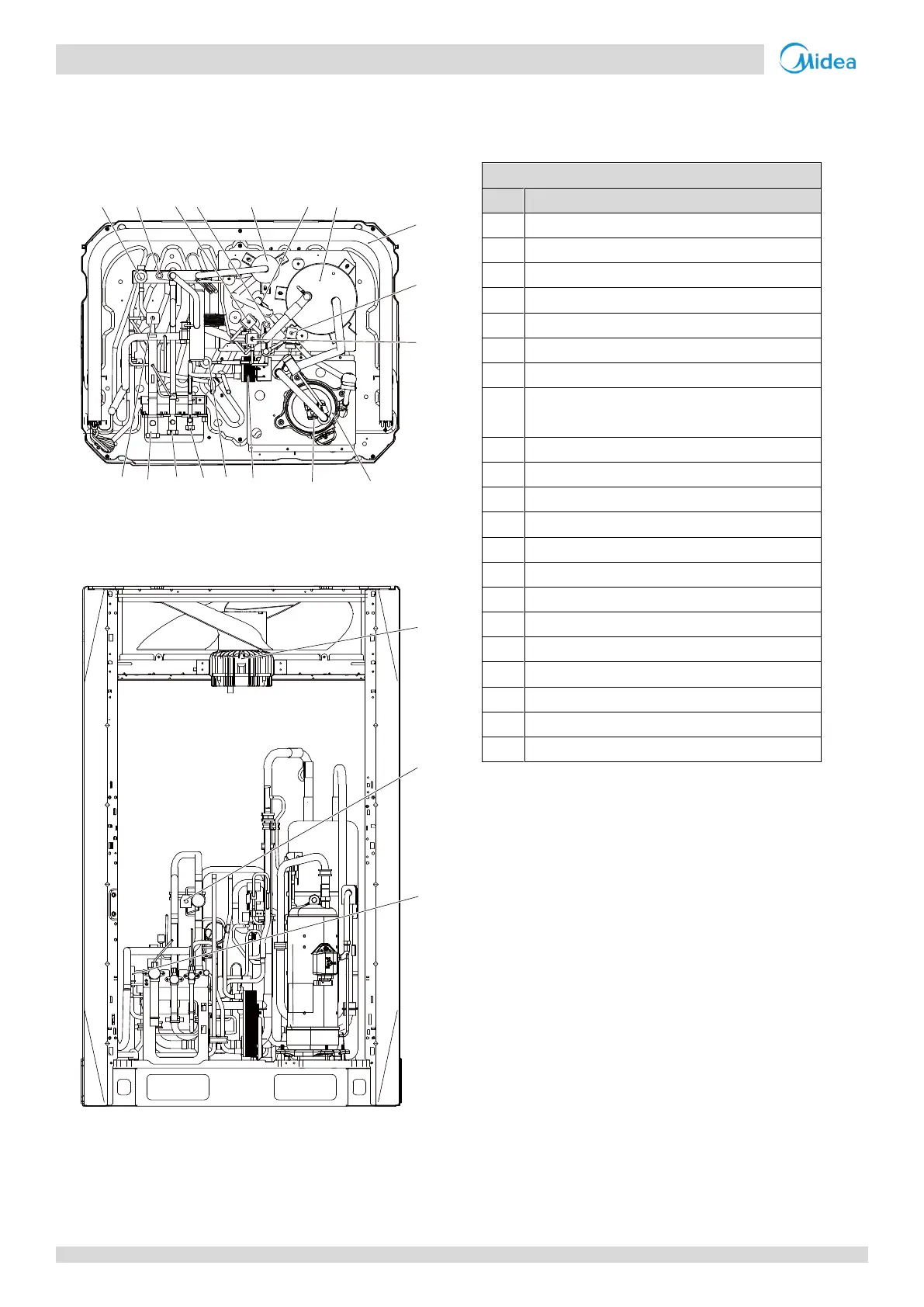

1 Layout of Functional Components
8/10/12HP
Figure 2-1.1: 8/10/12HP top view
Figure 2-1.2: 8/10/12HP front view
12345
16
17
678
18
12 1311109 14 15
20
19
21
Legend
No.
Parts name
1
Inverter compressor
2
Discharge temperature switch
3
Plate heat exchanger
4
Electronic expansion valve (EEVC)
5
Stop valve (liquid side)
6
Stop valve (high pressure gas side)
7
Stop valve (low pressure gas side)
8
Refrigerant charge solenoid valve(SVC)
(customization option)
9
Electronic expansion valve (EEVA)
10
High pressure sensor
11
Hot gas bypass solenoid valve(SV7)
12
Low pressure sensor
13
Oil separator
14
High pressure switch
15
Gas-liquid separator
16
Heat exchanger
17
Compressor vapor injection valve ( SV8A)
18
Injection bypass solenoid valve(SV5)
19
FAN A
20
4-way valve
21
Pressure relief valve (customization option)
