V6R VRF 50/60Hz
60
Midea
V6R
Series Service Manual
2 Outdoor Unit Main PCB
2.1 Ports

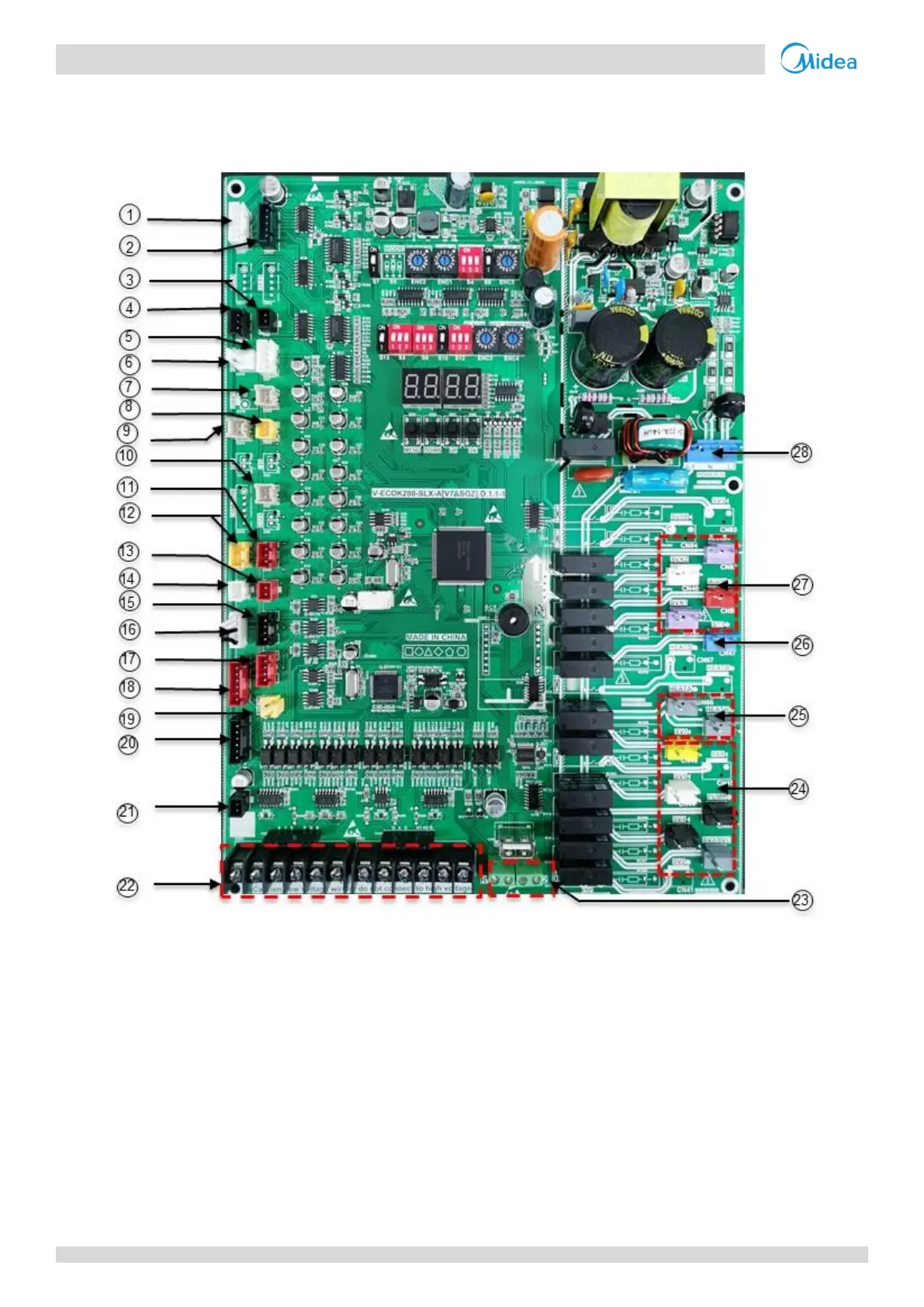

Figure 5-2.1: Outdoor unit main PCB ports
1
Notes:
1. Label descriptions are given in Table 5-2.1.
