Service Manual, 2016-12
12 / 46

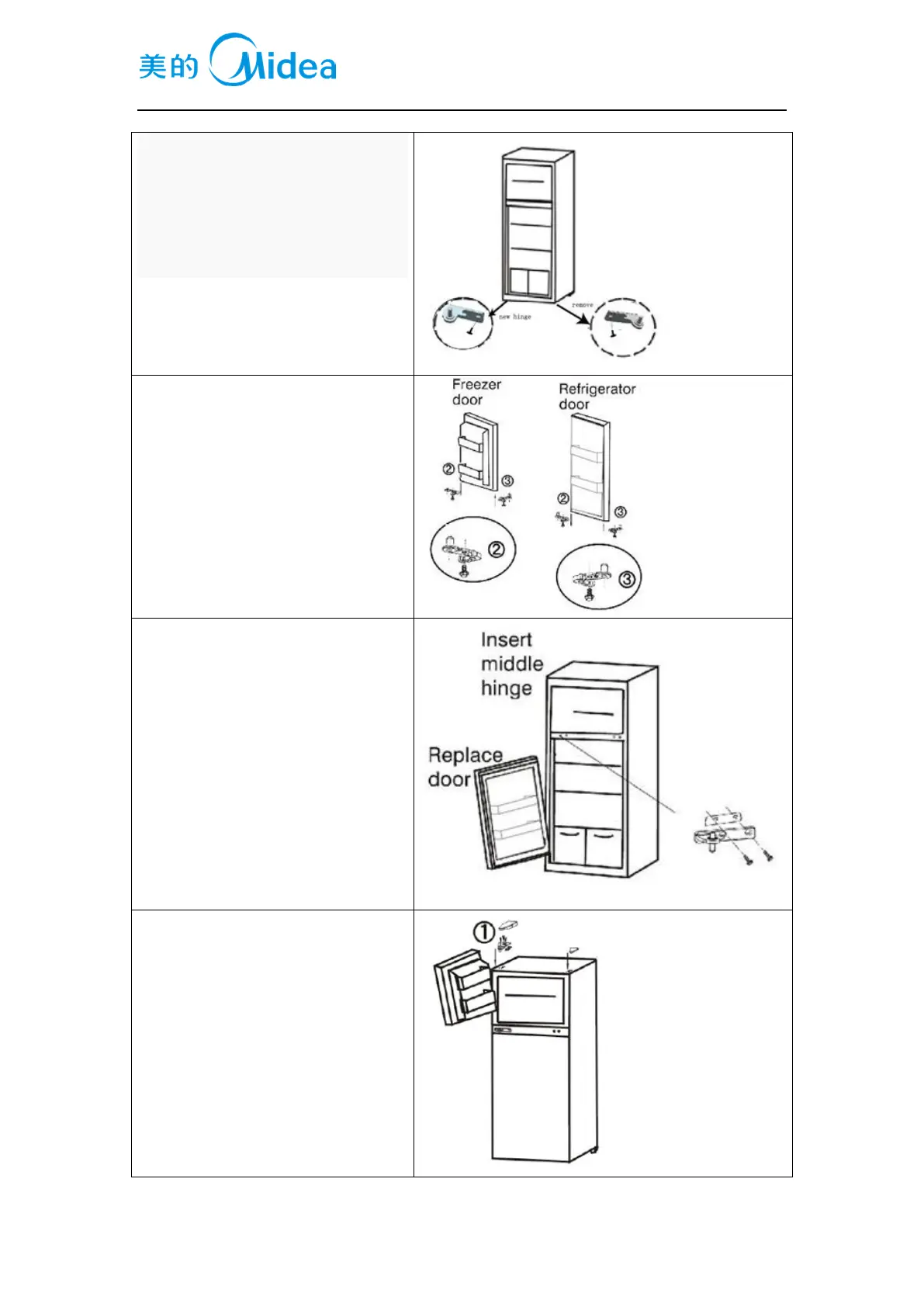

4Remove right bottom hinge and
reserve the screws. Remove screw
covers at left corner and put them into
the screw holes at right corner. Install
left hinge by using those reserved
screws.
5. Remove right pin assemblies from the
bottom of the freezer and refrigerator
doors. On the opposite side, attach the
replacement pin assemblies (located in
the plastic bag with the Use and Care
Manual) with a screwdriver. Note: You
must re-use the screws from the pin
assemblies that are removed in this step
when attaching the new assemblies.
6. Place the refrigerator door on the
bottom hinge. Ensure the door is
aligned horizontally and vertically.
Attach middle hinge to refrigerator door
and attach bolt washer to the back of the
hinge, then fix them to middle beam and
get them fastened with a screwdriver.
7. Place the freezer door on the middle
hinge. Ensure that the door is aligned
horizontally and vertically, and that the
gasket seals on all sides before attaching
the top hinge. Attach the top hinge and
replace the hinge cover.
