Service Manual, 2016-12
19 / 46
7.Refrigerating piping system and circulating route of cooling air

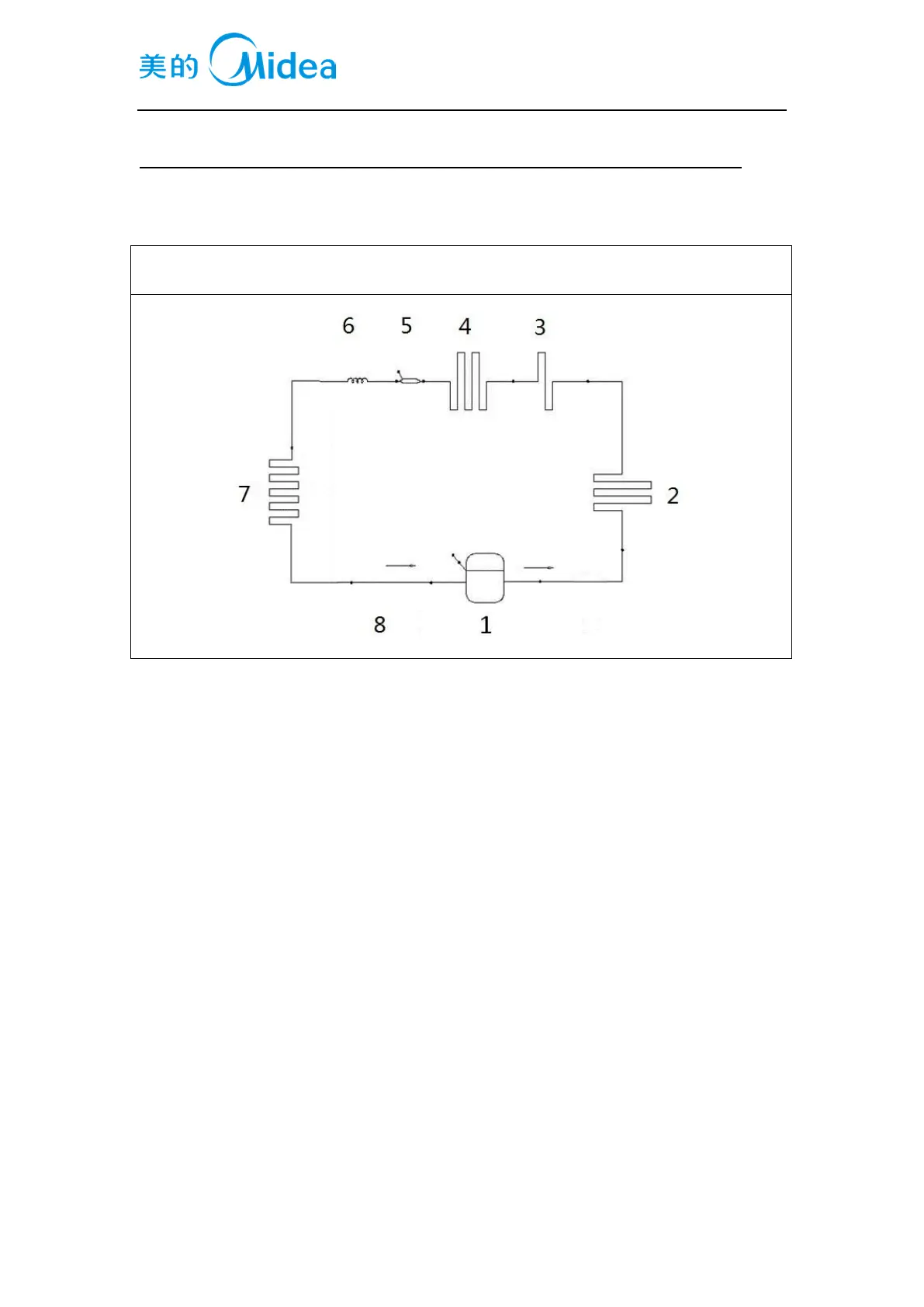

7.1 Refrigerating piping system
1Compressor→2Right condenser→3Anti-condensation tube→4Left condenser→5Dry
filter→6Capillary tube→7Evaporator→8Suction tube→1Compressor
(The picture is only for reference, and specific appearance and configuration are subject to the real
product)
