6.Internal view and dimension

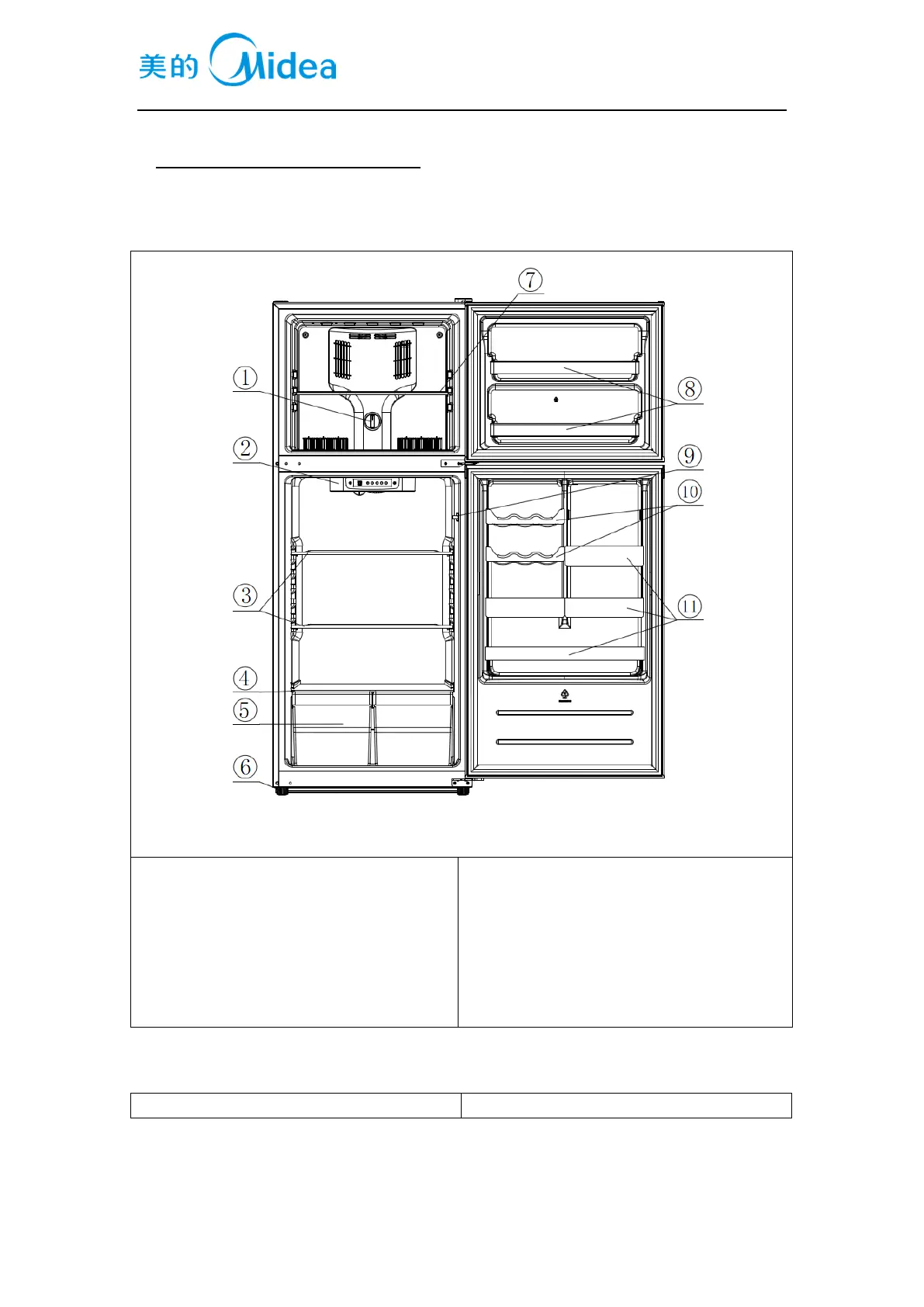

6.1Main parts and their names
(The picture is only for reference, and specific appearance and configuration are subject to the real
product)
1.Air duct components in freezing chamber
2.Air duct components in refrigerating
chamber
3.Glass shelve
4.Cover plate of crisper
5.Crisper for fruit and vegetable
6.Regulating foot
7.Steel wire shelf in freezing chamber
8.Bottle frame in freezing chamber
9.lampswitch
10.Zip-top can frame
11.Bottle frame in refrigerating chamber
6.2External dimension
Front view
Side view
