Service Manual, 2016-12
21 / 46

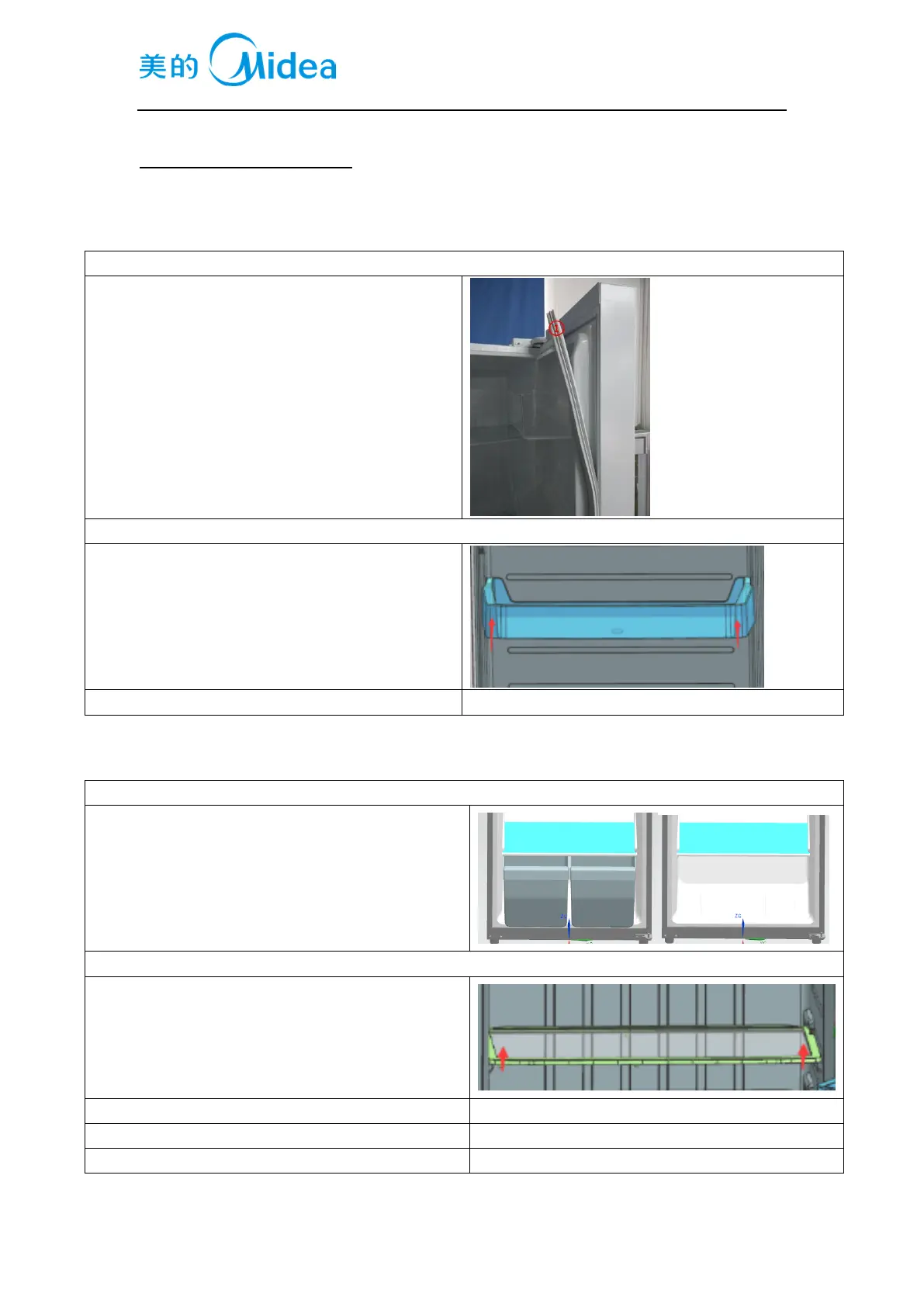

8. Dismantling of parts
8.1 Parts on the door
Door seal is installed into door liner groove.
1） Open the refrigerator door;
2） Take the door seal ①out of door liner;
Lift up the bottle frame and take it out from the door
liner of the refrigerator.
8.2Parts inside the refrigerator
Refrigerator Fruit box cover
Remove the crisper cover of ref. compartement accordi
ng to below steps:
1） take out the crisper firstly;
2） Pull out the crisper cover completely
1） Pull out the partition plate completely.
1) Lift it up and take it out from the refrigerator.
