Midland MXT115 User Manual

Page 9
midlandusa.com
Model MXT115
Page 8
midlandusa.com
Model MXT115

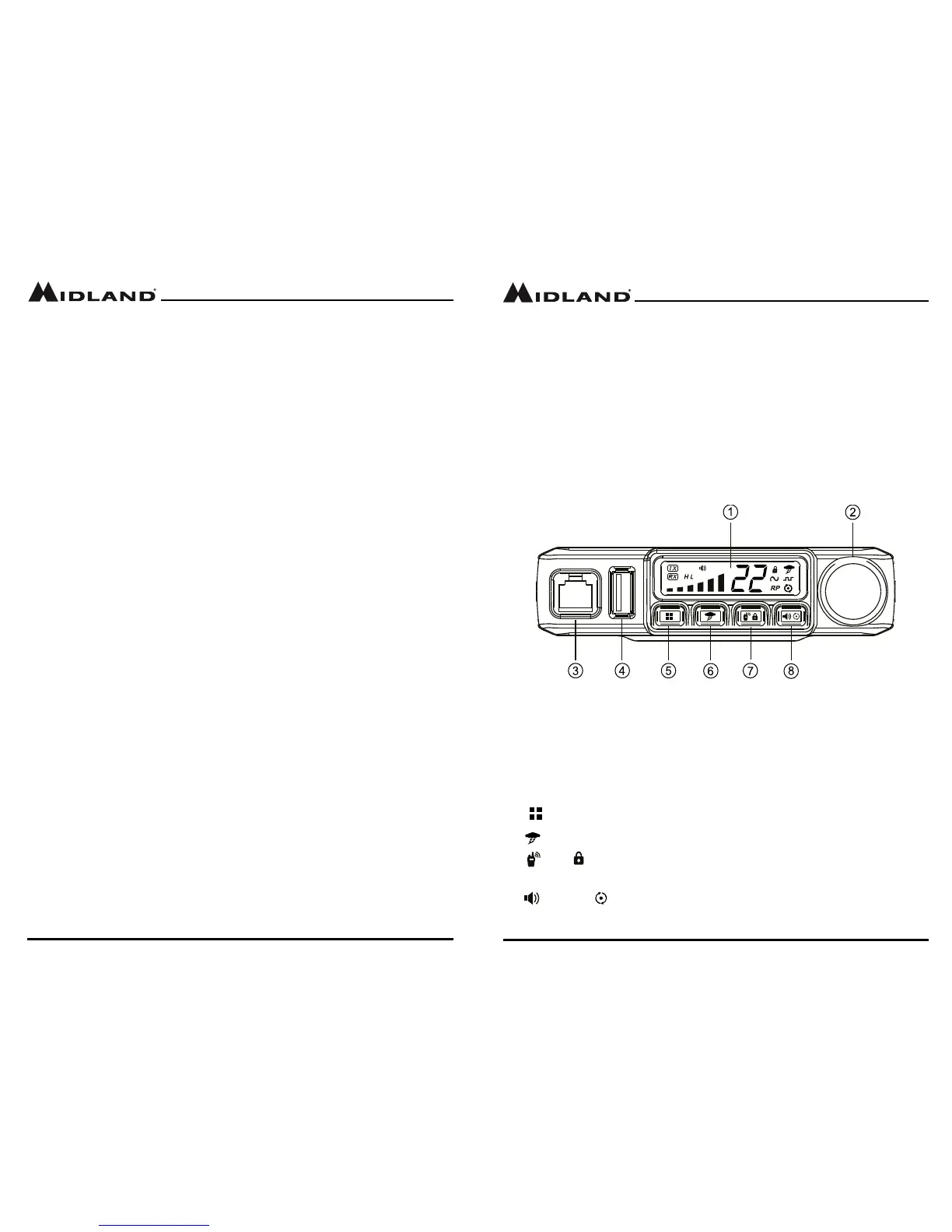

Operating Controls
1. LCD Display
2. On/O󰀨 Volume
3. Microphone Jack
4. USB Charging Jack
5. Menu - Press to access menu
6. Weather - Press to access weather mode
7. Call /
Lock - Press to send a call signal, or long press to lock the
keypad
8.
Monitor / Scan - Press to enter scan mode, or long press to enter
monitor mode
Electrical and Rear Panel Connections
Refer to Rear Panel Connections for rear panel connector locations.
NOTE: Radio antenna is installed separately.
1. The power cord supplied with the MXT115 is equipped with a cigarette
lighter adapter for easy installation. Simply plug the connector into the
vehicle’s cigarette lighter. If a “hard-wired” installation is desired, connect
the power cord to the vehicle’s electrical system as follows:
▪ Cut the power cord just after the cigarette lighter adapter.
▪ Connect the positive lead (RED wire with in-line fuse holder) to
either (a) the fuse block or (b) directly to the positive post of the
vehicle’s battery.
NOTE: The fuse block is usually the most convenient connection
point. The power cord positive lead can also be connected to the
accessory terminal on the fuse block or ignition switch, so the radio
automatically turns o when the ignition is turned o.
▪ Securely connect the ground lead (BLACK wire) directly to the
vehicle’s metal frame. A good direct metal-to-metal ground is
essential for optimum performance.
2. Attach the antenna cable to the ANT jack on the rear panel.
3. If desired, an optional external speaker (purchased separately) can be
connected to the EXT SPKR jack (see Using an External Speaker).
Connecting the Microphone
Insert the RJ11 connector into the front of the MXT115. The microphone
mounting bracket can be attached to the vehicle dash or other convienent
location in a manner similar to the radio’s mounting bracket..
Using an External Speaker
The MXT115 provides a rear-panel jack for connection of an optional
external speaker (purchased separately).
When selecting an external speaker, ensure the speaker has 8-ohm
impedance and is rated for 4.0 watts.
NOTE: When an external speaker is connected, the radio’s internal
speaker is automatically disabled.
CONTROLS AND INDICATORS

Midland MXT115 Specifications

General

Rated power	15 W
Product type	Speaker/microphone
Compatibility	Midland FRS/GMRS radios
Product color	Black
Brand compatibility	Midland
Quantity	1
Package type	Box
Package depth	101.6 mm
Package width	254 mm
Package height	304.8 mm
Package weight	1133.98 g

Weight and Dimensions

Depth	127 mm
Width	133.35 mm
Height	25.4 mm
Weight	467.2 g
