5. You are requested to connect to the second battery. If there's only 1 battery, this step is auto-
matically skipped.
6. Temperature - you are requested to aim the temperature sensor at the second battery. Then
click 'Capture' The test is started.

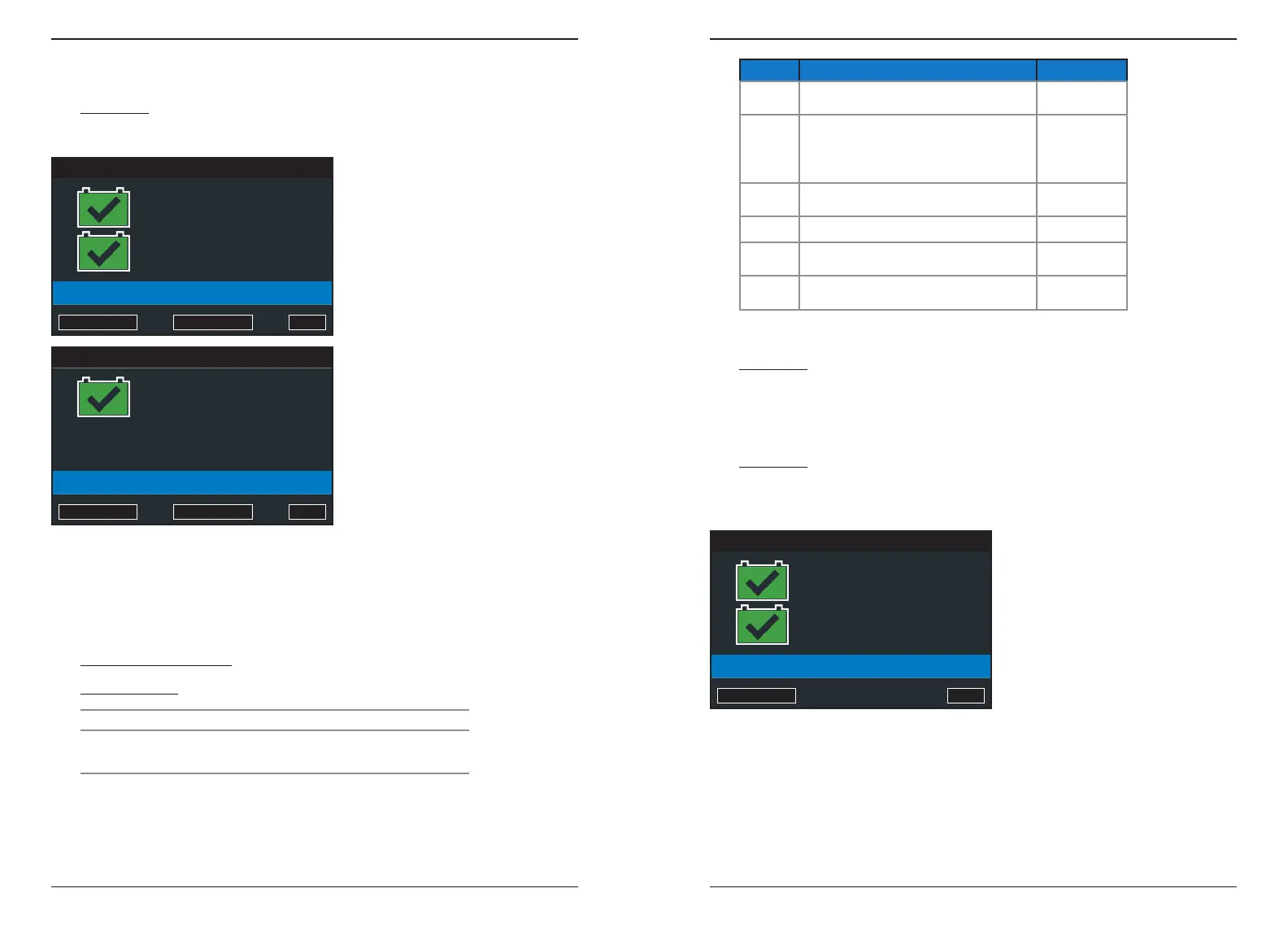

Test Results - Bat...
1
2
In Balance.
1: GOOD BATTERY
2: GOOD BATTERY
Rated: 500 CCA
Temperature: 24 C

Send Results System Test Done
Test Results - Bat. 1
1
Good Baery
Rated 575 CCA
Voltage 12.72 V
Measured 599 CCA
Temperature: 24 C
Baery Type: SLI

Send Results System Test Done
Test Results - Battery Test
To send the test results select Send Results. To perform a System test, select System Test. To
return to the Home Screen, select Done to return to the main screen.
Generate Pair
7. Connect to the rst battery.
8. Battery Test Setup - Edit the displayed battery information.
Battery Type SLI AGM
Battery Units EN
SAE
IEC
DIN
EN2
JIS
Battery Rating
Hold down  or  to increase scrolling
speed.
VIN Insert the last 5 number of the Vehicle ID
number (VIN).This step is optional.
Rating Description Range
EN European Norms. The battery is required to meet a
voltage of 7.5V after 10 seconds
100 to 3000
SAE Society of Automotive Engineers norm. The test
species that the battery at a temperature of –18°C
will deliver a current equal to the Cold Cranking
Amps for 30 seconds with the voltage staying
above 7.2 volts
100 to 3000
IEC International Electrotechnical Commission norm.
The IEC test is performed at -18°C
100 to 1000
DIN Deutsche Industrie-Norm 100 to 1000
EN2 European Norms 2. Performing a different second
discharge than with EN.
100 to 3000
JIS Japanese Industrial Standard test, carried out at
-15°C.
A list is shown
Select Start to advance to the test.
9. Temperature - you are requested to aim the temperature sensor at the battery. Then click 'Cap-
ture' The test is started.
10. If the battery is in a good state, you are requested to connect the CPX to the second battery. If
the rst battery needs a charge a warning is shown, asking the user to connect a dierent bat-
tery to test or charge the battery. A pair cannot be generated with discharged batteries.
11. Temperature - you are requested to aim the temperature sensor at the battery. Then click 'Cap-
ture' The test on the second battery is started.
Test Results - Bat...
1
2
In Balance.
1: GOOD BATTERY
2: GOOD BATTERY

Send Results Done
