Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527
www.midtronics.com
6
EXP-803Chapter 2: Overview
Chapter 2: Overview

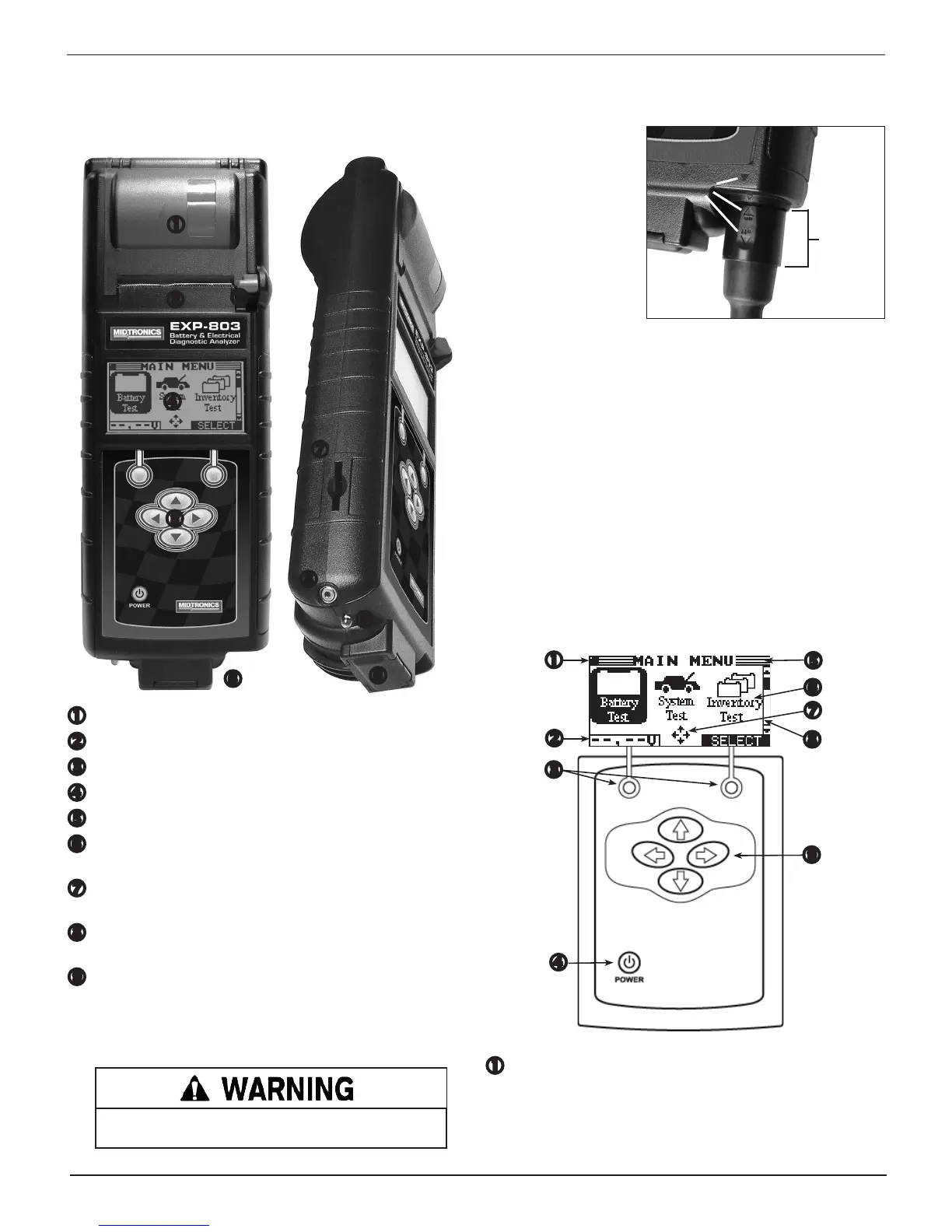

Connections and Data Ports
Integrated thermal printer
Release lever for door to paper compartment
Paper slot
LCD screen with Main Menu
Control Panel: keypad and power button
6-pin connector for the battery test cable (see the next
page for detail)
Spring-loaded data card slot for test data storage and
software upgrades.
Infrared temperature sensor with a range of -28 °C to
+93 °C (-20 °F to +200 °F)
Data transmitter: sends test results to a PC using an op-
tional hardware and software kit
Connecting the Battery Test Cable
To prevent damage to the analyzer’s circuitry, do not con-
nect the analyzer to a voltage source greater than 30 Vdc.
To connect the battery
test cable to the analyzer
align the arrow on the
cable connector with the
arrows on the analyzer’s
housing. Hold the part
of the cable connector
as shown and firmly
insert the connector
into analyzer’s six-pin
receptacle. Do not twist.
To avoid damaging the battery test cable, always hold the
ridged part of the cable connector (as shown in the photo)
when inserting and removing the cable.
Removing and Inserting the Data Card
The analyzer ships with a plastic insert in the data card slot to
protect it from dust and debris. To remove the plastic insert or
an data card, push briey on its edge to release it and pull it
from the slot.
When inserting a card, push it into the slot until it locks. The
card is correctly inserted when it is not protruding from the
slot. To protect the card slot and enable the analyzer to read
and write to the card, leave the card in the slot.
Display and Keypad
Title Bar
The title bar shows you the name of the current menu, test
tool, utility, or function.
Hold the
cable
connector
here
Arrows
To Next Page
