Spring-loaded adapter for the
water line
The spring adapter for the water
connection must be properly engaged
when a basket or injector basket is
inserted into the washer-disinfector. In
other words, the adapter must be4-5
mm higher than the water inlet in the
machine.
If this is not the case, the adapter
needs to be adjusted as follows:
^

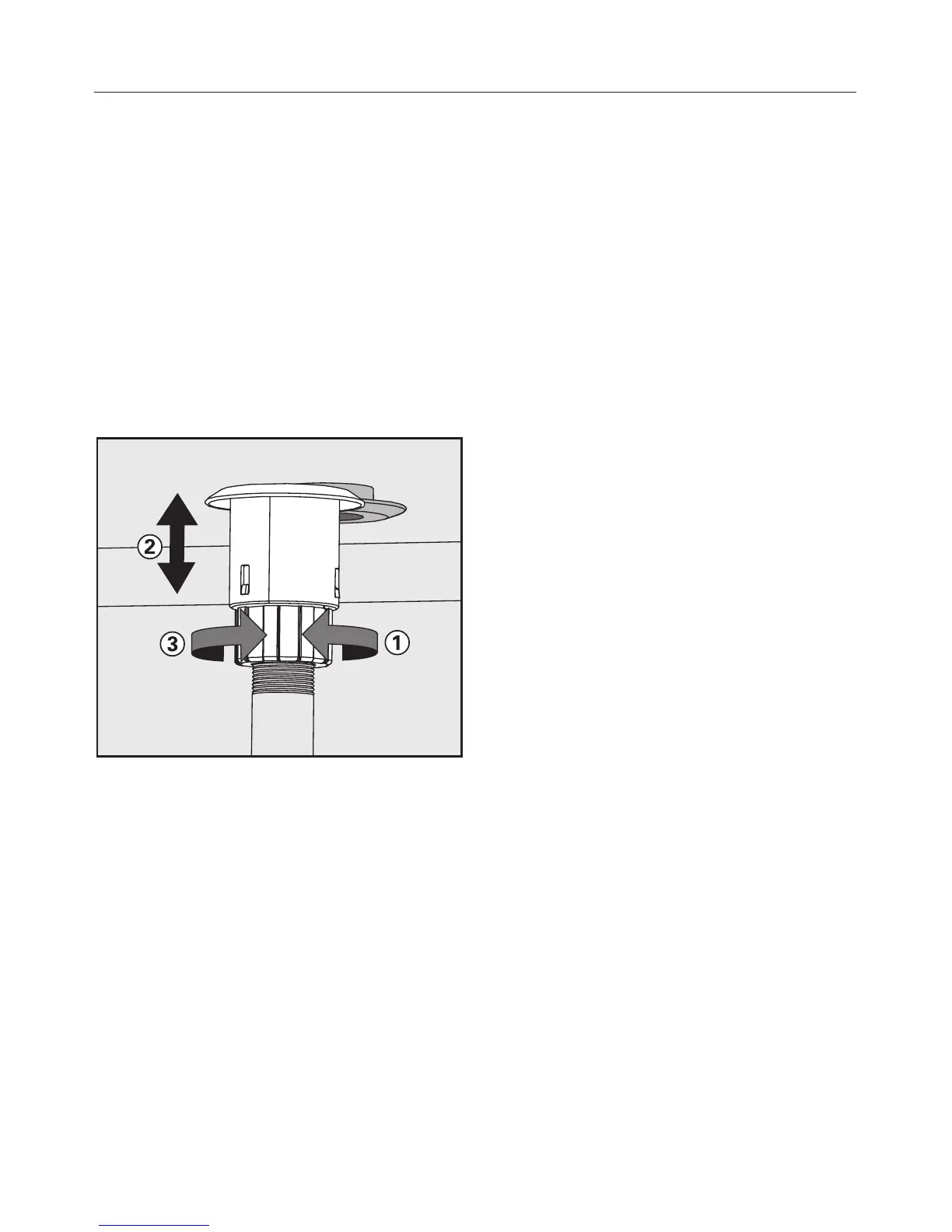

Loosen the locking ring a.
^
Move the adapter up to the proper
height b.
^
Tighten down the locking ring c.
How to adjust the upper basket
The upper basket can be adjusted
above and below the middle position
by 2 cm each.
Depending on the height selected for
the upper basket and which inserts are
used, items of various heights can be
arranged in the baskets.
To adjust the upper basket:
^
Pull the upper basket out as far as it
will go, then lift it up off the runners
and remove.
^ Usea7mmwrench to unscrew the
roller bearings on either side of the
basket, then reposition as desired.
Applications
23
