Technical Information
18
MasterChef Ovens
1.4.6 H 478x B/BP Single Oven (with/without Self-Clean)

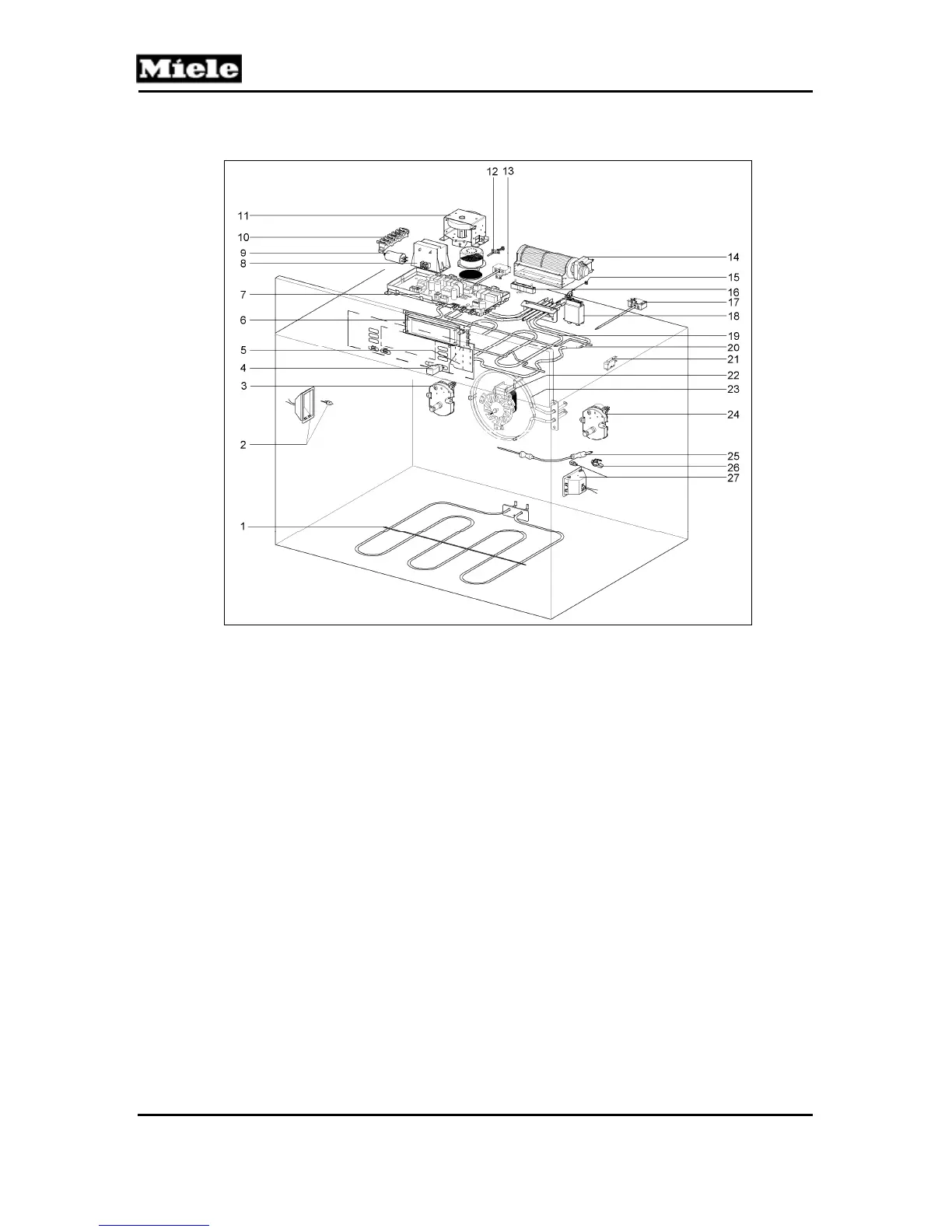

Figure 1-12: H 478x B/BP
1
(R12) Lower heater element
2
(1H3/1) Light assembly
3
(1M15) Rotisserie motor
4
(2S60) Door lock position switch
5
(2A1) Selection electronic EW
6
(1A1) Control electronic EPX
7
(1N1) Power electronic EPL
8
(T1) Light transformer
9
(Z2) Interference suppression capacitor
10
(X3/1) Terminal block
11
(M23) Door lock motor (“P” models only)
12
(2R30) Catalyst PT 1000 temperature sensor (“P” models only)
13
(2F1) Self-clean thermostat (968°F/520°C) (“P” models only)
14
(M2/1) Cooling fan
15
(1R30) Oven cavity PT1000 temperature sensor
16
(R34) Resistor
17
(1F1) Cavity thermostat (680°F/360°C)
18
(K1/1) Relay
19
(R15) Broiler element
20
(R13) Upper heater element
21
(S24) Door contact switch
22
(M2/2) Convection fan
23
(R14) Convection heater
24
(2M15) Rotisserie motor
25
(3R30) Roast probe
26
(X5/8) Roast probe socket
27
(2H3/1) Light assembly
