4.14 Rotisserie Motors
Two 120VAC rotisserie motors are mounted to the rear wall of the oven.
These motors drive the rotisserie shafts.
4.15 Oven Cavity Lights
There are two oven cavity lights in each oven. Two transformers mounted in
the top of the oven power the lights.
Light voltage 12VDC
Light output 10W
4.16 Automatic Door Lock (“P” Models Only)
When the self-cleaning program begins, the door lock motor activates and locks the
door. The door cannot be opened until the temperature drops below 398°F (200°C).

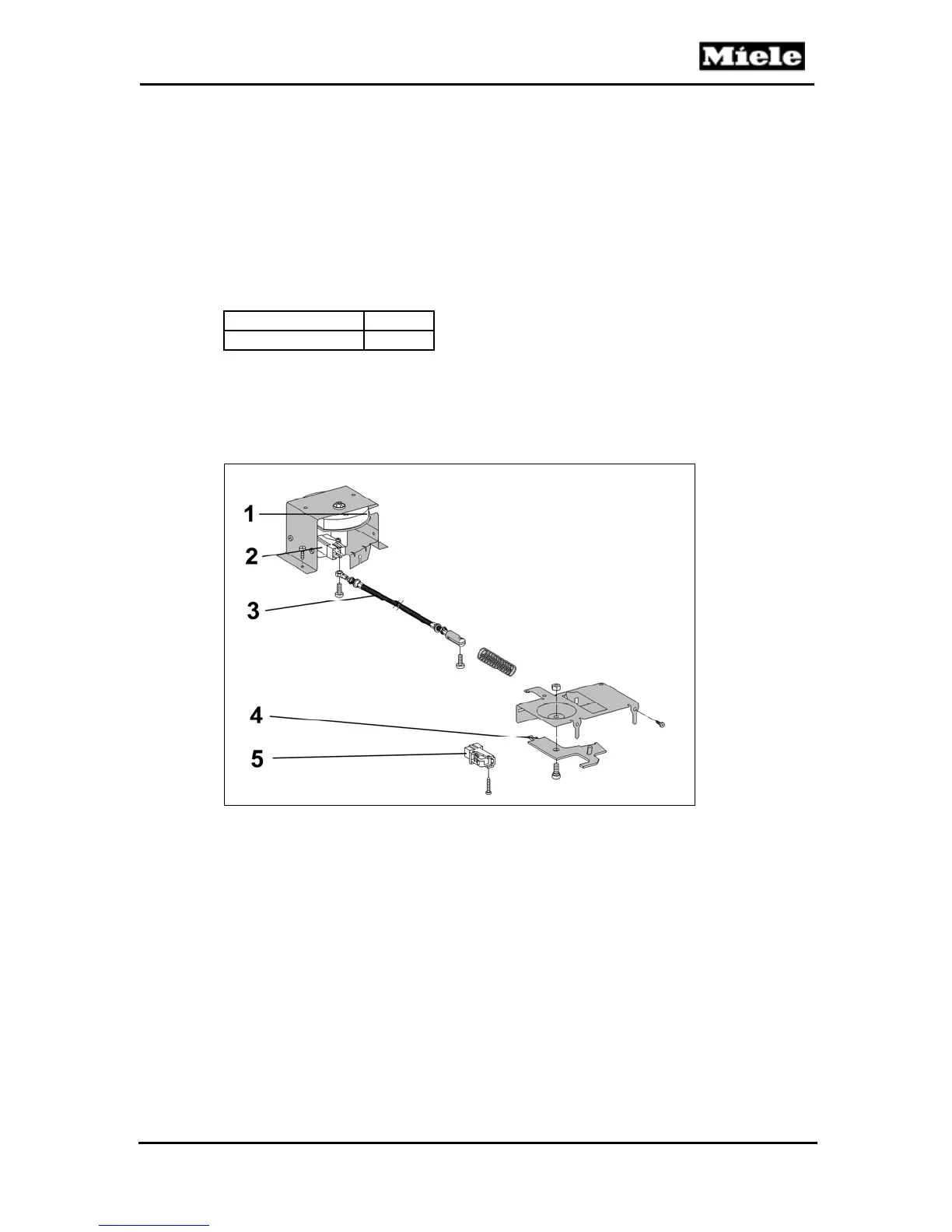

Figure 4-6: Door Locking Components (“P” Models Only)
1
Door lock motor (M23) 120VAC/5W
2
Interlock switch
3
Bowden cable assembly
4
Door latch
5
Interlock switch
