5.2 Door Removal
5.2.1 H 39x, H 488x, H 489x
Important:
DO NOT hold the door by the handle. When handling the door, it should be
gripped firmly on the sides (glass and frame).
1. Open the door fully.
2. Flip up the locking tabs on both hinges, as shown in Figure 5-1.
3. Slowly begin to shut the door until the locking tabs stop the door.
4. Pull the door upward to remove.

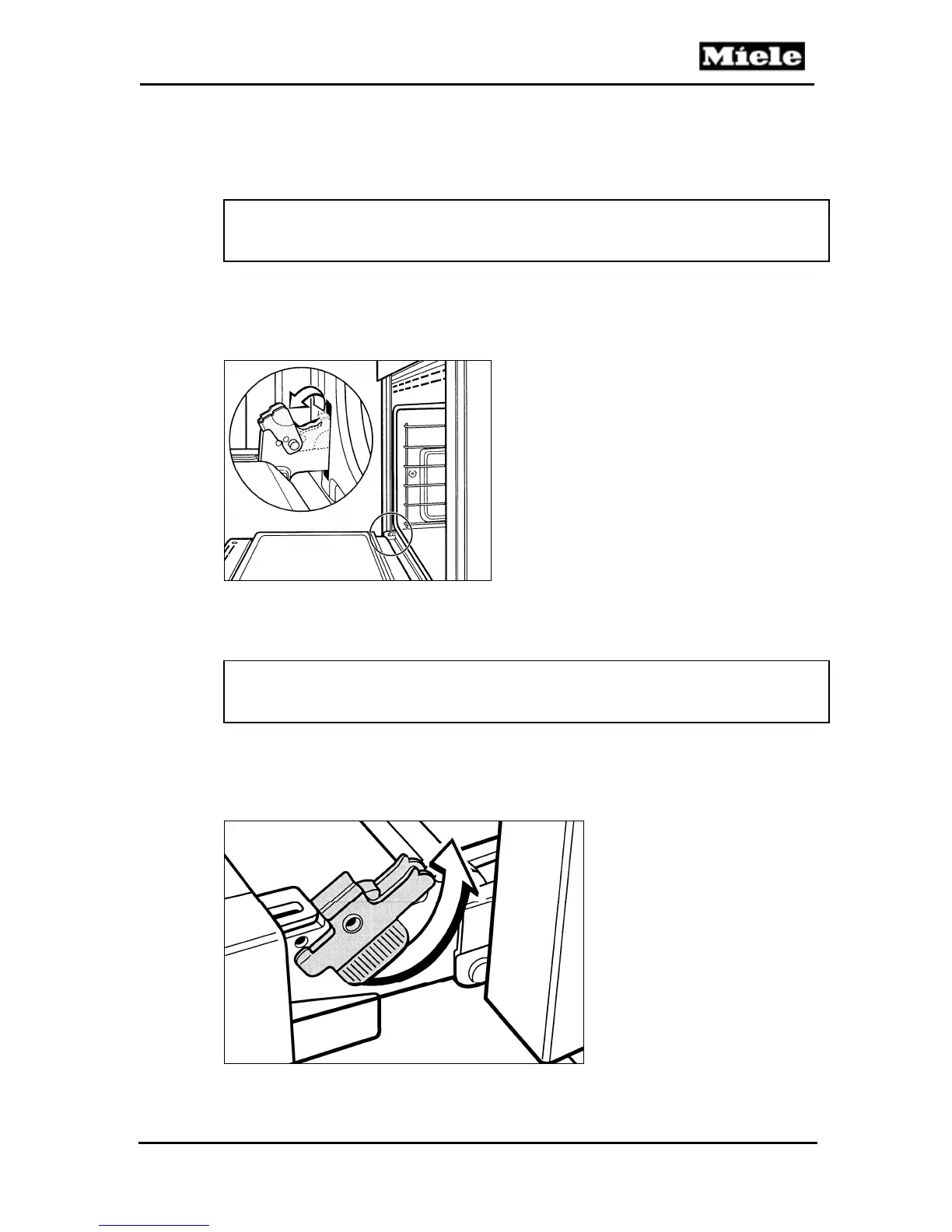

Figure 5-1: Door Hinge Locking Tabs
5.2.2 H 468x, H 478x
Important:
DO NOT hold the door by the handle. When handling the door it should be
gripped firmly on the sides (glass and frame).
1. Open the door fully.
2. Flip up the locking tabs on both hinges, as shown in Figure 5-2.
3. Slowly begin to shut the door until the locking tabs stop the door.
4. Pull the door upward to remove.
Figure 5-2: Hinge Locking Tab in Released Position to Allow Door Removal
