Miele MasterChef H 4682 B - Upper Rear Panel Removal (Double Ovens Only); Lower (or Single Oven) Rear Panel Removal; Air Shield Panel Removal (Double Ovens Only)

Technical Information
40
MasterChef Ovens
5.11 Upper Rear Panel Removal (Double Ovens Only)
1. Remove the oven for service (Section 5.5).
2. Remove the control panel (Section 5.6).
3. Remove the safety cover (Section 5.7).
4. Remove the top cover (Section 5.8).
5. Remove the screws securing the upper rear panel.
6. Slide the panel down while pulling it from the oven.
5.12 Lower (or Single Oven) Rear Panel Removal
1. Remove the oven for service (Section 5.5).
2. Remove the screws securing the lower rear panel.
3. Slide the panel upward while pulling it from the oven.
5.13 Side Cover Removal
1. Remove the upper or lower rear panel, depending on the side cover(s) to
be removed (see Section 5.11 or Section 5.12).
2. Remove the screws securing the appropriate side cover(s).
3. Lift the cover(s) from the oven.
5.14 Air Shield Panel Removal (Double Ovens Only)
1. Remove the oven for service (Section 5.5).
2. Remove the upper rear panel (Section 5.11)
3. Remove the lower rear panel (Section 5.12).
4. Remove the air shield panel retaining screws (Figure 5-15, Item 2).
5. Remove the air shield panel (Figure 5-15, Item 1).

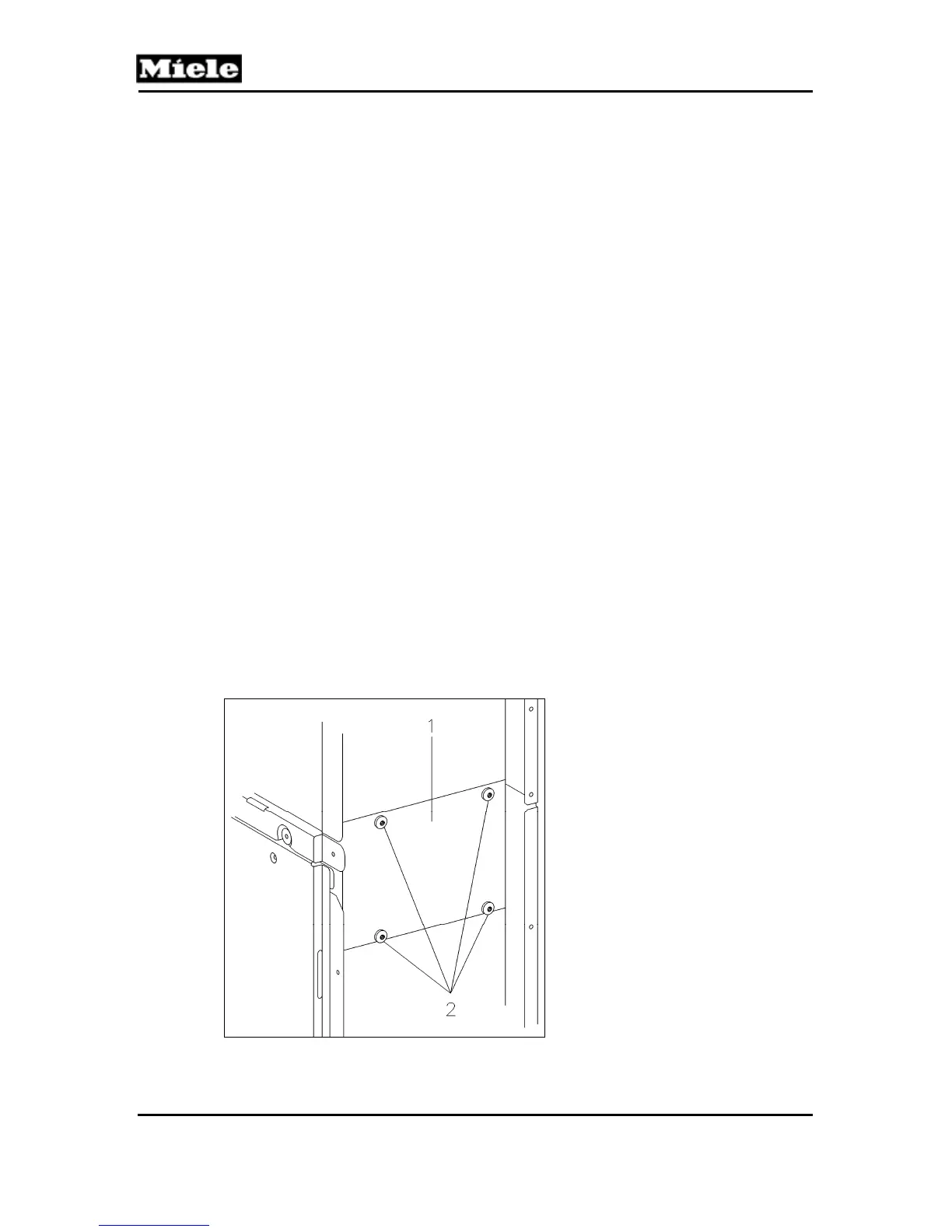

Figure 5-15: Air Shield Panel
